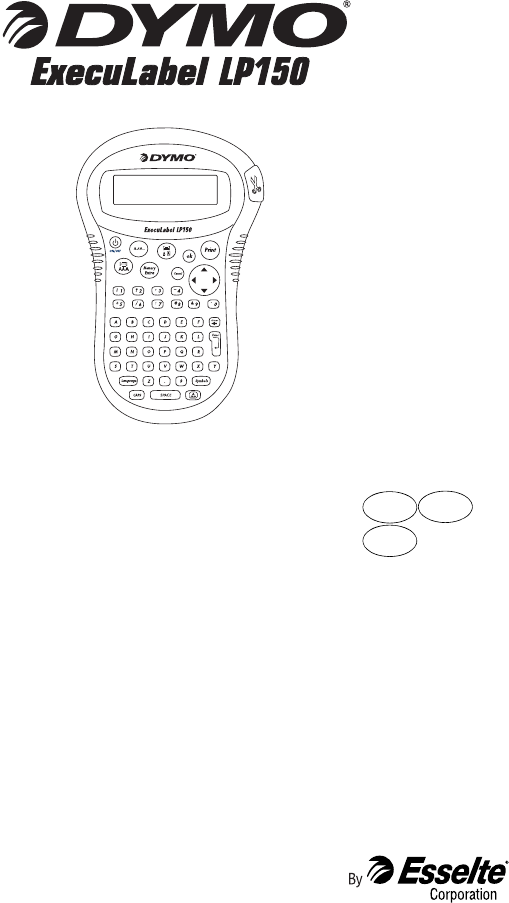

Label Exit Cutter LCD Display Align/Underline Box Power Style Print Ok Fixed Length/Font Memory/Extra Cancel Navigation Numeric Keys Clear/Delete Return Alpha Keys Language Symbols CAPS Space Bar Currency Shift Figure 1 ExecuLabel LP150 Professional Labelmaker 2
About Your New Labelmaker With your DYMO ExecuLabel™ LP150 labelmaker, you can create a wide variety of high-quality, selfadhesive labels. You can choose to print your labels in many different sizes and styles. The labelmaker uses DYMO D1 label cassettes in widths of 3/8” (9 mm ) and 1/2” (12 mm). Label cassettes are also available in a wide range of colors. Visit www.dymo.com for information on obtaining labels and accessories for your labelmaker.
CLICK! Getting to Know the Labelmaker Become familiar with the location of the feature and function keys on your labelmaker. Refer to Figure 1 on the inside front cover. The following sections describe each feature in detail. Power Figure 4 4. Press firmly until cassette clicks into place. 5. Close the label cassette cover and press A to turn on the power. Selecting a Language You can select from a number of different language options. By default, the language is set to English.
CAPS Mode Cancel The # key toggles capitalization on and off. When CAPS mode is turned on, the CAPS mode indicator is shown on the display and all letters that you enter will be capitalized. The default setting is CAPS mode on. When CAPS mode is off, all letters entered appear in lower case. The key allows you to exit from a menu without making a selection or to cancel an action. Shift Key Extra Key The key, when used in combination with an alphabet key, changes the case of the selected letter.
Adding Font Styles You can choose from six different font styles in addition to Normal: Normal Bold Italic Outline Shadow Vertical Mirror Figure 7 When you select a style, that style applies to all characters. Styles can be used with alphanumeric characters and symbols. See Using Symbols and Special Characters on page 6 for more information on printing symbols. To set the font style 1. Press the key. 2. Use the arrow keys to select a style and then press .
Adding Symbols Printing Options The labelmaker supports the extended symbol set as shown in Figure 9. To add a symbol 1. Press Symbols . The first row of symbols shown in the table appears in the display. 2. Use the arrow keys to move to the desired symbol. The left and right arrows move horizontally along a row of symbols. The up and down arrow keys scroll vertically through the rows of symbols. To quickly see a row of symbols, you can press the letter corresponding to the row you want. 3.
Previewing Your Label You can preview the text or format of your label prior to printing. A two-line label is previewed as a single-line label. To preview your label 1. Press . 2. Select Preview and press . 3. Select Text or Format and press .. If you select Text, the text of the label scrolls across the display. If you select Format, the format selected displays briefly. Aligning the Text When you print a fixed length label you can choose to align the text at the left, center, or right side of the label.
Recalling Stored Labels and Formats You can easily recall labels and formats stored in memory to use at a later time. To recall labels or formats 1. Press + . 2. Select Recall and then Label, Format, or Last Printed. The first memory location is displayed similar to storing a label or format. 3. Select a label or format to recall and press . Caring for Your Labelmaker Your labelmaker is designed to give you long and trouble-free service, while requiring very little maintenance.
Troubleshooting Review the following possible solutions if you encounter a problem while using your labelmaker. Problem/Error Message Solution No display • Ensure the labelmaker is turned on. • Replace discharged batteries. Poor Print Quality • • • • Printing No action required. Message disappears when printing is finished. Too many characters Exceeded maximum number of characters in buffer. Delete some or all of the buffer text. Too many lines Exceeded maximum number of lines allowed.
