User's Manual

Wireless Optical Mouse User Manual
Welcome
Thank you for selecting this product! This mouse is one kind of newly developed wireless RF mice in our company, and it uses the global-used frequency
of 27MHz. The comfortable and perfect shape is designed according to somatology. With it, You can get rid of the bondage of wires and enjoy your beautiful
life from the high technology
Product Features
1. Radio frequency 27MHz,It has 256 ID code, there is no interference even many mice being used at the same time.
2. With receiver hidden inside and the whole design looks more ntimate and scientific.
3. Automatically save power sleeping functions, battery life be prolonged.
4. With charge and regular circuit, it can use the attached retraceable line to charge for the mouse. Even if there is no battery in the mouse, you can use
the mouse directly, thus it resolve the problem of lack the battery.
Systems Compatibility
IBM PC and Windows Me/2000/XP
Build-in mini receiver

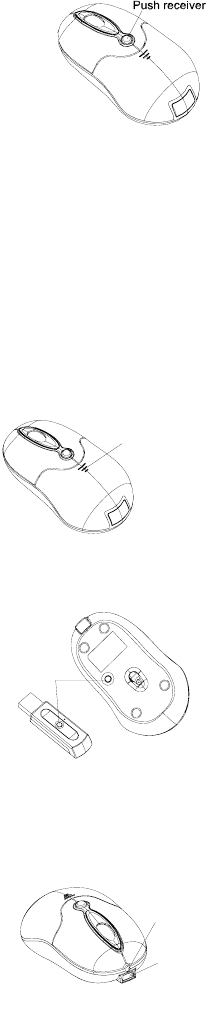

As bellow, press the receiver-out button, and the receiver can spring out automatically, at this time, mouse begin to work. If you push the receiver back to
the transmitter, power will be cut down automatically.
The Steps of Install Battery
1, Please prepare for two PCS new AAA alkaline batteries
2, Press the button of the mouse upper cover and pull the battery cover rearward (Please see the reference picture)
3, Please insert the batteries correctly according to the polarity marks of the battery grooves.
4, Pull the battery covers forward, when you hear “crack” sound which shows the battery cover is locked successfully.
Receiver Installation
1, please use extended cable, and put the receiver and transmitter on one desktop, in this way, you may have higher working efficiency.
2, If you use PS/2 connector, please use the USB to PS/2 adaptor and connect with the connector before your computer start-up.
3, For laptop, you may connect the receiver directly with the USB connector.
ID Setup
1, Please move the mouse near to the receiver
2, Press the ID button of the mouse bottom with some hard and
Push battery
cover
acuate object within 10 seconds, the receiver light will flash very fast, a few seconds later it will be on which shows it is successfully to finish the digital
transmission between the mouse and the receiver. You may start to use it.
3. Working distance: within 0.6-1.5 m
ID connect
Charge Function
When using mouse, if the red led of the low battery beside the wheel flashes, please change batteries or charge them .The mouse can use USB line to
charge, connect one side of USB line to the connector of the board, and the other side to USB connector before the mouse, thus it can successfully charge
the battery. It can charge while you use the mouse. It is full within about 8-10 hours, and then unplug the connector to stop the
charge. Please note that the time of charge may vary when the degree of discharge is different.
Charge
connector
Low battery
Attention Please
1. Please don’t make the mouse far away from the receiver in order to work more smoothly.
