Use and Care Manual

Description
2-pole, 3-wire grounding
15A, 125V/AC
20A, 125V/AC
Design features
•
UL Listed, fully compliant with all latest UL943 Class A GFCI
requirements
•
10 kA short circuit current rating per Supplement SA of UL943
•
Lock-out functionality prevents miswired line-load connections
and GFCI circuitry damage
•
Visual indicator lights provides quick visual reference of a tripped
and/or “end of life” conditions
•
Each device carries a 20A feed-through rating
•
Longer, wider “bridged” strap provides 40% more contact area
with wallboard, virtually eliminating floating installations
•
Matching standard size thermoplastic wallplate included
•
Provides compliance with 2017 NEC Article 406.9 that states
that all receptacles installed in wet and damp locations must be
weather resistant

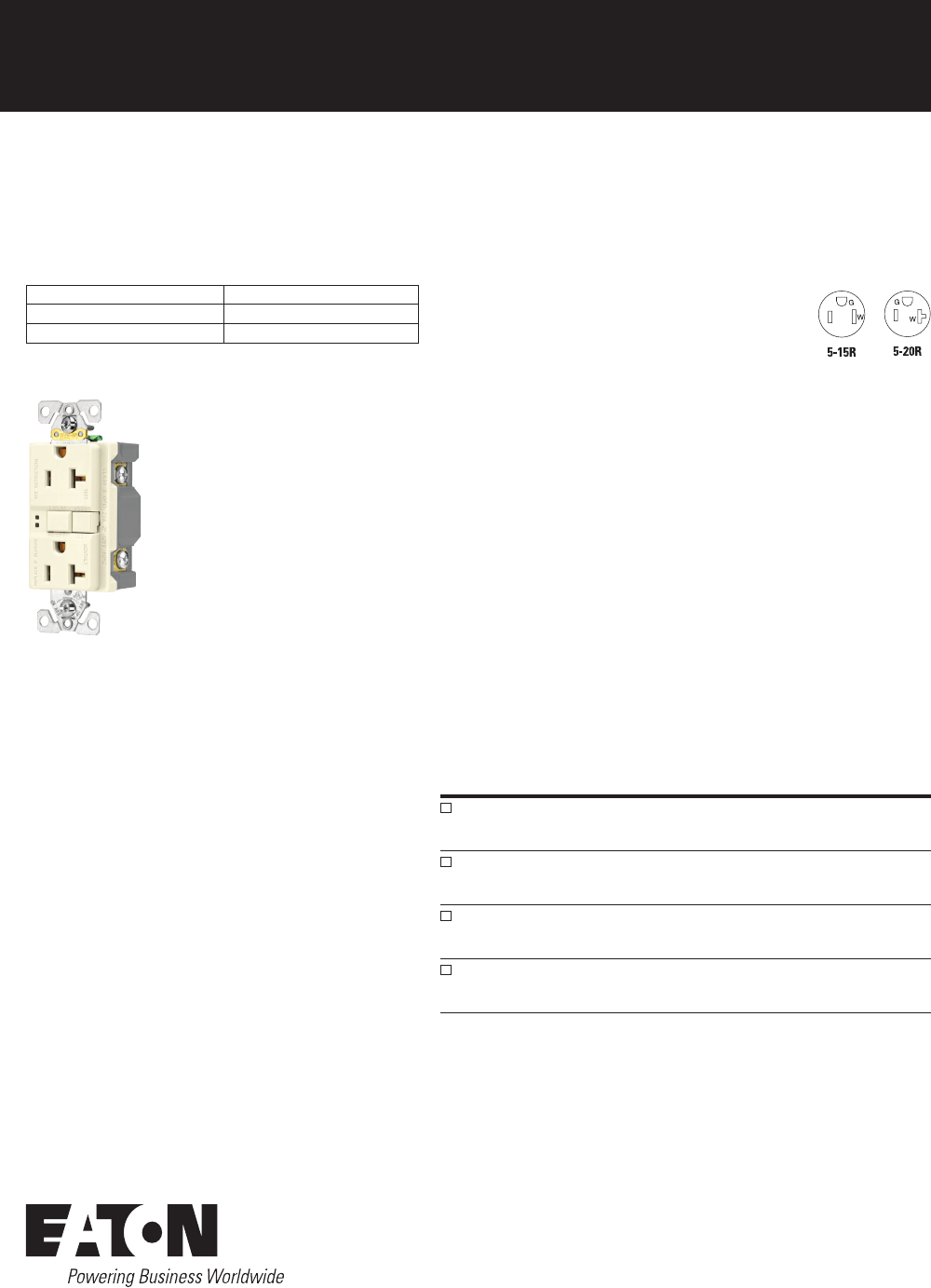

SGF20
Table 1. Specification grade
Rating
Catalog no. Description A V/AC NEMA Color suffix
SGF15F___-PSOL Duplex GFCI, NAFTA
compliant, solid pigtail
leads, back & side wire
15 125 5-15R B, BK, GY, LA,
RD, V, W
SGF15F___-PSTR Duplex GFCI, NAFTA
compliant, stranded pigtail
leads, back & side wire
15 125 5-15R B, BK, GY, LA,
RD, V, W
SGF20F___-PSOL Duplex GFCI, NAFTA
compliant, solid pigtail
leads, back & side wire
20 125 5-20R B, BK, GY, LA,
RD, V, W
SGF20F___-PSTR Duplex GFCI, NAFTA
compliant, stranded pigtail
leads, back & side wire
20 125 5-20R B, BK, GY, LA,
RD, V, W
Project Name: Prepared By:
Project Number: Date:
Catalog Number: Type:
Arrow Hart specification grade NAFTA
GFCI receptacles with wire leads
Compliances, specifications and availability are subject to change without notice.
Includes standard size unbreakable wallplate unless otherwise noted
Consult factory customer service representative for additional packaging options
Technical Data
Effective July 2017
