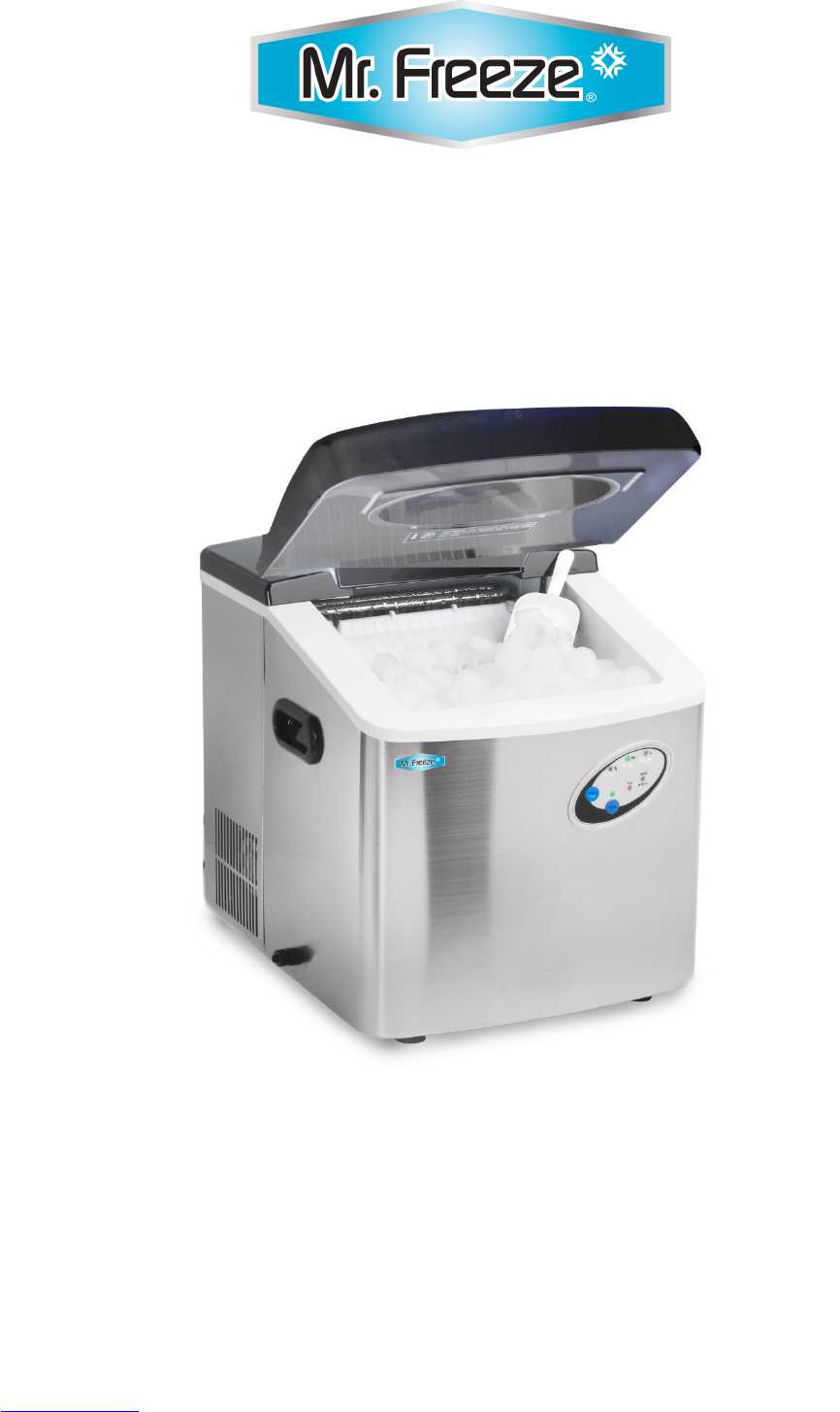

STAINLESS STEEL PORTABLE AUTOMATIC ICE MAKER Model: MIM-88 INSTRUCTION MANUAL It is important that you read these instructions before using your portable ice maker. It is strongly recommend that you keep them in a safe place for future reference. Downloaded from www.Manualslib.
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………………………….2 IMPORTANT SAFEGUARDS………………..…………………………………….…………….3 GETTING TO KNOW YOUR UNIT ………………………………………………………………4 OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER…..……………………………………………………………5 CONNECTING YOUR ICE MAKER…………………….…………………………………….....5 CLEANING AND MAINTAINING YOUR ICE MAKER.………………………………………...5 - 6 USING YOUR ICE MAKER……………………………………………………………………….6 TROUBLESHOOTING ……….……………………………………………………………………7 - 8 MORE TIPS AND GUIDES ..
IMPORTANT SAFTEY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual in regards to your appliance. Always read and obey all safety massages. This is the safety alert symbol: ! All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”. You could be seriously injured if you do not follow the immediate instructions.
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. Do not operate this or any other appliance with a damaged cord. Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
GET TO KNOW YOUR UNIT 1. Ice Case Panel: 2. Water tank and Ice Basket 3. Control Panel: 4. 5. 6. 7. 8. Handle Water Drain Cap: Cover: Ice Shovel/Scoop. Ice Sensor: MAXIMUM WATER LEVEL: The panel that pushes already formed ice into the ice basket below. Water basket sits on top of the water tank. Easy to use, visible functions and 1-touch display setting. A. Selects ice cube size. B. Starts or stops ice making cycle. For draining water from the water reservoir.
OPERATING PROCEDURES AND MAINTENANCE UNPACKING YOUR ICE MAKER 1. 2. 3. 4. 5. 6. Remove all exterior and interior packaging. Check that the ice basket and ice scoop are included. If any part of accessory is missing, please contact our customer service department. (Contact information on p. 11) Clean the interior with lukewarm water and a soft cloth. Remove the ice basket and wash it in warm water. Wipe the evaporator rods clean using a water/vinegar solution.
OPERATING PROCEDURES AND MAINTENANCE (CONT.) CARE AND MAINTENANCE The ice maker should be cleaned on a regular basis. (See the “HOW TO CLEAN” section on p.5) It is necessary to have an adequate ventilation space around the ice maker in order to sustain proper performance, dissipation of heat, maintain efficiency, and low power consumption. Clearance of a minimum of 5 inches should be maintained at the rear and sides of the unit, and 8 inches at the top of the unit.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION “Water” indicator is on. Water is low. Turn the ice maker “OFF” and fill water. Wait 3 minutes to let the refrigerant settle then turn the machine back “ON”. “Ice” indicator is on. Ice basket is full. Remove ice from ice basket. “Water” and “Ice” indicator are both flashing. Ice shovel is stuck. Checks if ice is blocking the ice shovel, otherwise, consult a certified technician. Ice making cycle is too long.
TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSE SOLUTION Remove the water filter and clean it. ________________________________ There is enough water in the water tank, but the indicator to “Add Water” stays on and the unit will not function. The water filter on the bottom of the water tank may be blocked. Ice cube sizes are inconsistent The ice case panel may not be level. 1) Follow the steps outlined in #8, then wait approximately 5-10 minutes and press the ‘Power’ button again.
MORE SPECIAL TIPS AND GUIDES • Leaking Water: • Rubber insert may be missing from the drainage cap. Please contact customer service for a replacement rubber insert. • Check if unit still leaks water when unplugged. If unit does not leak water when unplugged then the water is leaking from the water pump. Please contact customer service for a replacement water pump.
CLEANING THE WATER FILTER IN ORDER TO MAINTAIN THE PERFORMANCE OF YOUR ICE MAKER, THE WATER FILTER MUST BE CLEANED FREQUENTLY IT IS RECOMMENDED TO CLEAN THE FILTER BEFORE EACH USE. 1. Remove the filter from the draining hole underneath the ice basket in the water tank. 2. Clean all residue within the filter. USE ONLY WATER TO CLEAN THE WATER FILTER. TECHNICAL PARAMETERS - SPECIFICATIONS Model MIM-88 Protection Type I Power 120V / 60Hz Rated Current 2.
LIMITED WARRANTY* ONE (1) YEAR WARRANTY IS ONLY VALID WITH A DATED PROOF OF PURCHASE PLEASE DO NOT RETURN TO STORE. If you have any problems with this unit, contact Consumer Relations for service 1. Your small kitchen appliance is built with precision, inspected and tested before leaving our factory. 2. It is warranted to the original purchaser to be free from any manufacturing defects under normal use and conditions for one (1) year, cord excluded.
RETURN INSTRUCTIONS RETURNS: A. Any return of defective merchandise to the manufacturer must be processed accordingly by first contacting customer service (info@maxi-matic.com) to obtain an RA # (Return Authorization Number). We will not accept any returns of merchandise without an applicable RA #. B. IMPORTANT RETURN INSTRUCTIONS. Your Warranty depends on your following these instructions if you are returning the unit to Maxi-Matic, USA: 1.
