Slave Components - B-Modules (Building)

Product Catalogue all information for reference only - technical changes reserved - rev. 9 Page 82 of 171

6.4.2 B-6Moti2LDR-01

6x Motion detection, 5V, 2/3-wire

2x LDR, LDR07, 2-wire

Modul ID

4-411

Order No.

CAE_G-6Moti2LDR-01 (-p)

Terminals

cage clamp

Core

M16E

Size

4 eU (44mm x 72mm)

FCP

1-1-1

Variants

0# =

6.4.2.1 Brief Description

The module includes six voltage inputs and two inputs for a LDR

sensor.

For each input/sensor double terminals (ground, input) are availa-

ble. An additional connected terminal field can by used for power

supply distribution to the sensors. Therefore a direct connection of

the sensors without separate clamps is available.

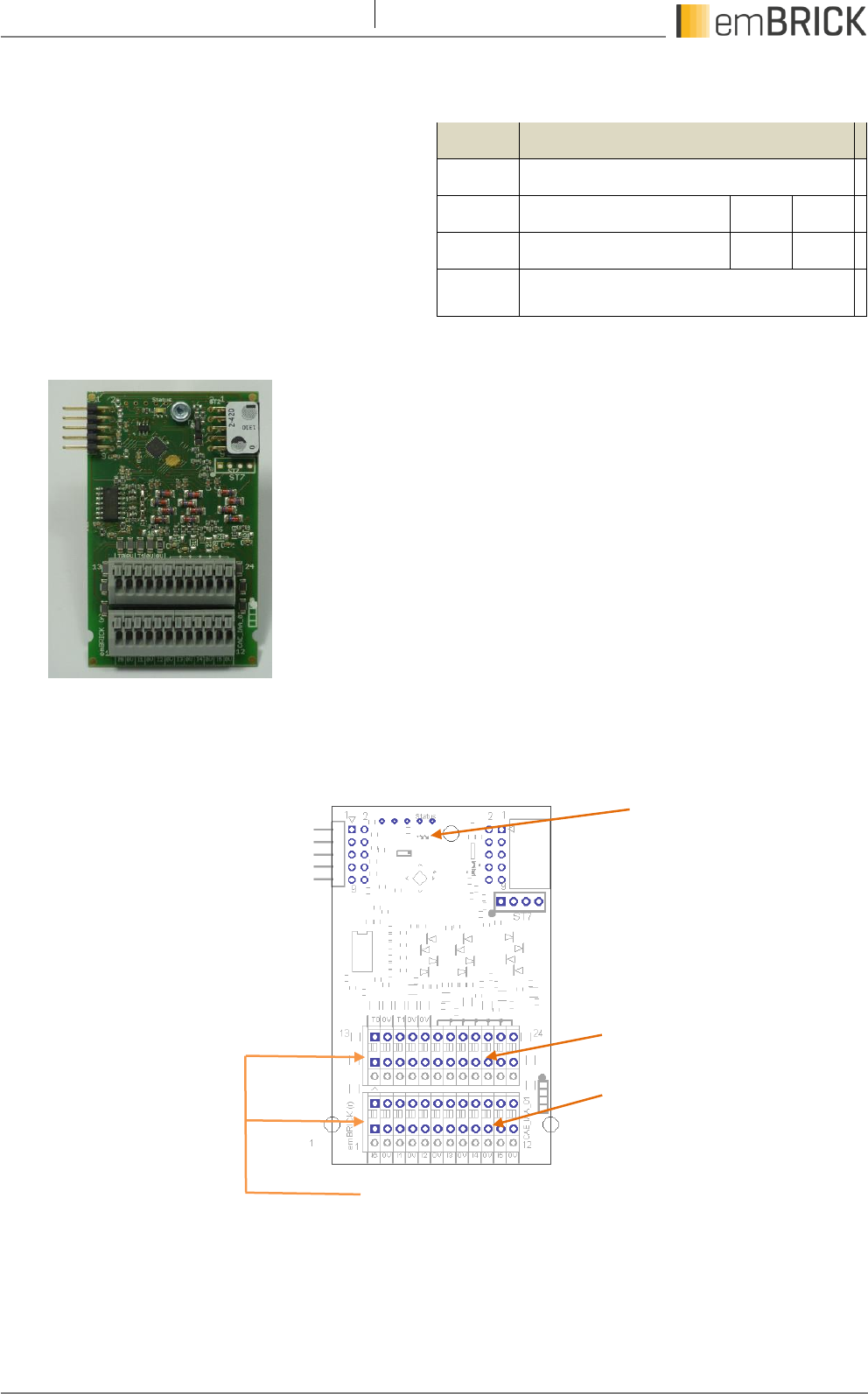

6.4.2.2 Connectors and Indication-/Operation-Elements

13………………..24

1…………………12

Input Terminals

T13…24 (from left to right)

Status LED

Input Terminals

…

12 (from left to right)

Summary of content (4 pages)

PAGE 1
Slave Components - B-Modules (Building) 6.4.2 B-6Moti2LDR-01 6x Motion detection, 5V, 2/3-wire 2x LDR, LDR07, 2-wire Modul ID 4-411 Order No. CAE_G-6Moti2LDR-01 (-p) Terminals cage clamp Size 4 eU (44mm x 72mm) Core M16E BBFCP 1-1-1 Variants 0# = 6.4.2.1 Brief Description The module includes six voltage inputs and two inputs for a LDR sensor. For each input/sensor double terminals (ground, input) are available.
PAGE 2
Slave Components - B-Modules (Building) 6.4.2.3 Terminal Assignment Supply Circuit Example GND 24V Ident. Ter. Function Usage I1 0V I2 0V I3 0V I4 0V I5 0V I6 0V 1 2 3 4 5 6 7 8 9 10 11 12 Input GND Input GND Input GND Input GND Input GND Input GND T1 0V T2 0V 0V 13 14 15 16 17 18 19 20 21 22 23 24 Analog - Input 1 Analog - Input 2 Analog - Input 3 Analog - Input 4 Analog - Input 5 Analog- Input 6 LDR - Input 1 LDR - Input 2 internal simplified diagram Input GND Input GND GND No funktion 6.
PAGE 3
Slave Components - B-Modules (Building) 6.4.2.6 Technical Data Note: For further global specification refer to chapter 4. Inputs: Number of moti inputs .............. 6 Connection technology ......... 2/3-wire (supports sensor power supply) Type ....................................... voltage Input range ............................ nom. 0...5V (full ADC approx. 0...7,3V , max. 15V) Input resistance .................... approx. 50kOhm Resolution.............................. 10 Bit, 0.
PAGE 4
Slave Components - B-Modules (Building) 6.4.2.7 Process Data Image Organisation of the user data communicated via brickBUS: Out-Userdata from Master to Slave total: 0 Bytes Byte Function In-Userdata to Master from Slave total: 16 Bytes rC Assign... all not used Byte Function rC Assign... 0,1 Analog Input 1 ... + eB_W0, 0, ... 2, 3 Analog Input 2 ... + eB_W1, 0, ... 4, 5 Analog Input 3 ... + eB_W2, 0, ... 6, 7 Analog Input 4 ... + eB_W3, 0, ... 8, 9 Analog Input 5 ... + eB_W4, 0, ...
