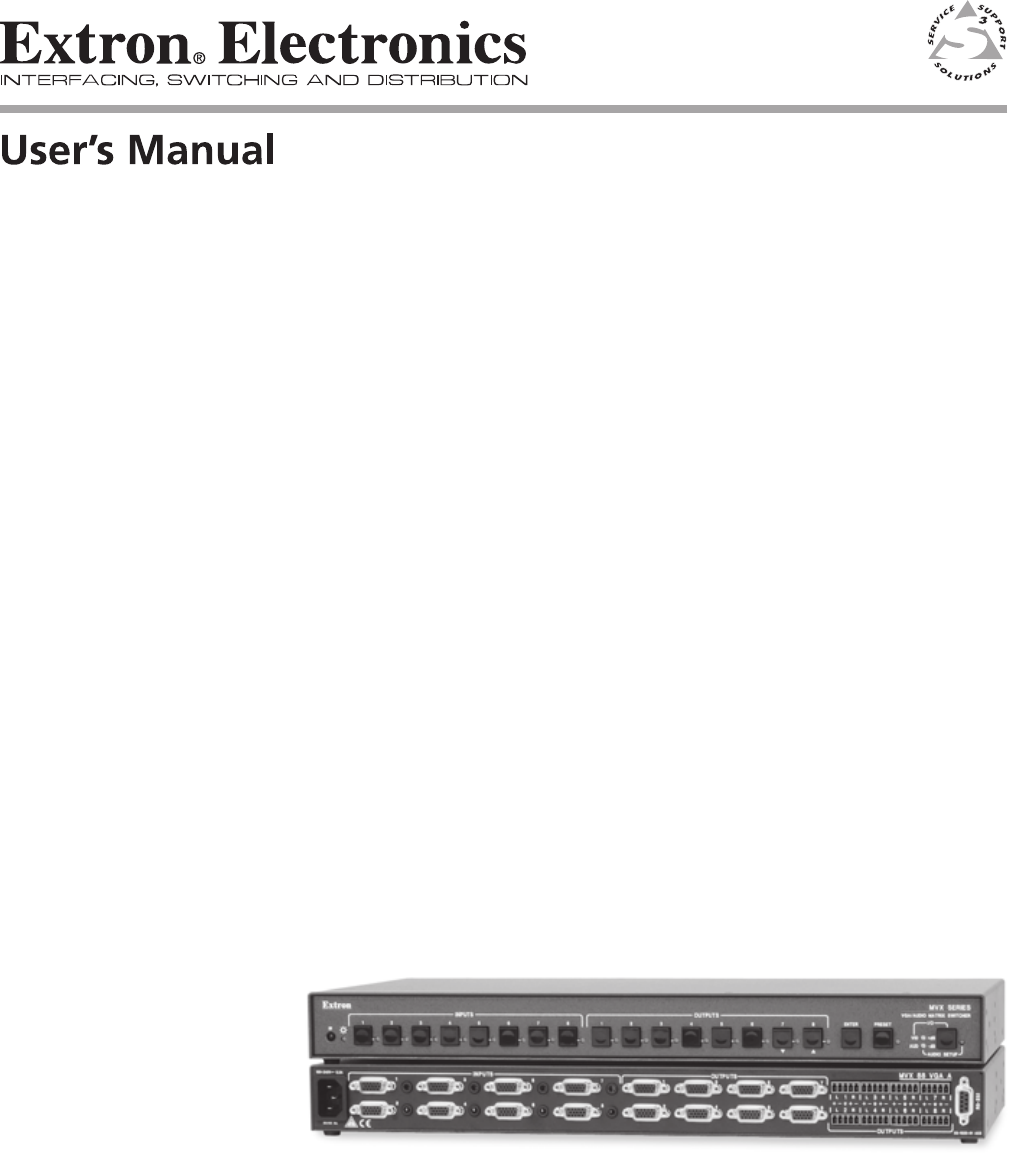

MVX 44 / 48 / 84 / 88 Series VGA Matrix Switchers 68-877-01 Rev.
Precautions Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock. Warning Power sources • This equipment should be operated only from the power source indicated on the product.
Quick Start — MVX Series VGA Matrix Switchers Installation 1 — Mount If desired, mount the switcher in a rack with the supplied rack ears or mount the switcher under a desk using an Extron 1U Enclosure Under-desk mount kit, part #70-222-01. 2 — Inputs a Connect up to 4 or 8 high 1 resolution video inputs to the 15-pin HD input connectors. b Connect up to 4 or 8 unbalanced stereo audio 1 inputs to the input 3.5 mm mini jack connectors.
Quick Start — MVX Series VGA Matrix Switchers, cont’d +dB/–dB LEDs indicate the polarity of the audio level setting (+dB = gain, –dB = attenuation). +dB and –dB are secondary functions of the Video and Audio LEDs. Each audio input gain and attenuation indicator indicates a range of 6 dB when lit. (Output 1 LED off = 0 dB to 5 dB, Output 1 lit = 6 dB to 11 dB, Output 1 and 2 lit = 12 dB to 17 dB, Output 1 through 3 lit = 18 dB.
Table of Contents Chapter 1 • Introduction ....................................................................................................... 1-1 About the Switchers ......................................................................................................... 1-2 Features ................................................................................................................................... 1-3 Chapter 2 • Installation ............................................................
Table of Contents, cont’d Troubleshooting ................................................................................................................ 3-26 Worksheets .......................................................................................................................... 3-27 Worksheet example 1: System equipment ..................................................................... 3-27 Worksheet example 2: Daily configuration ...........................................................
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers 1 Chapter One Introduction About the Switchers Features
Introduction, cont’d Introduction About the Switchers The Extron MVX Series VGA matrix switchers (figure 1-1) is a family of computer video matrix switchers that distribute any VGA or component/HDTV video (or other high resolution video) and audio input to any combination of outputs. The MVX Series switchers can route multiple input/output ties simultaneously. The switchers input and output high resolution video on 15-pin HD connectors. The switchers input audio on 3.5 mm mini jacks and output audio on 3.
Features Video — These switchers input and output VGA – UXGA RGBHV, RGBS, RGsB, RsGsBs video, or component/HDTV signals on 15-pin HD female connectors. Bandwidth — Bandwidth is 300 MHz (–3 dB). This high bandwidth allows the switchers to switch high resolution video with no loss of signal quality. Audio input — These switchers input unbalanced stereo audio signals on 3.5 mm mini jacks. Audio output — These switchers output balanced or unbalanced stereo audio signals on 3.
Introduction, cont’d Global memory presets — Sixteen global memory presets are a time-saving feature that lets you set up and store input/output configurations in advance. You can then recall those configurations, when needed, with a few simple steps.
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers 2 Chapter Two Installation Mounting the Switcher Cabling and Rear Panel Views
Installation, cont’d Installation Mounting the Switcher Keep the switcher out of bright light to prevent interference with the IR signals from the IR 501 remote control. Tabletop use For tabletop use, affix one of the supplied self-adhesive rubber feet to each corner of the bottom of the switcher. Rack mounting the switcher All of the MVX Series VGA switcher models are housed in rack-mountable, 1U high, full rack wide metal enclosures. The appropriate rack mounting kit is included with each switcher.
3. Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot holes in the table or desk at the marked screw locations from the underside/inside (concealed side) of the furniture, where the switcher will be located. 4. Insert the four wood screws into the pilot holes. Fasten each screw into the installation surface until just less than 1/4" of the screw head protrudes. 5.
Installation, cont’d Video and audio output connections 2 RGB video output connectors — Connect RGBHV video displays to these 15-pin HD female connectors for each output. The MVX switchers can also switch RGBS, RGsB, RsGsBs, or component/HDTV video. The MVX switchers do not alter the video signal in any way. The signal output by the switcher is in the same format as the input. 3 Balanced or unbalanced audio output connectors — These 3.
Remote connection 4 RS-232 connector — Connect a host device, such as a computer or control system, to the switcher via this 9-pin D connector (figure 2-5) for remote control of the switcher.
Installation, cont’d 2-6 MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Installation
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers 3 Chapter Three Operation Front Panel Controls and Indicators Operations Optimizing the Audio Troubleshooting Worksheets
Operation, cont’d Operation Front Panel Controls and Indicators The number of input and output buttons and LEDs that each MVX Series VGA matrix switcher provides varies with the number of inputs and outputs. Figure 3-1 shows the front panel of an 8-input, 8-output video and audio switcher. Other switcher models but have fewer input and/or output buttons to accommodate the different matrix sizes that they provide. Many of the buttons and LEDs on figure 3-1 have dual functions.
Power/audio/data LED and infrared sensor 1 Infrared remote sensor — This sensor receives infrared (IR) signals from the optional IR 501 small matrix universal remote control. The IR remote control must be pointed within 30 degrees of this sensor for best results. Operation of the IR 501 remote control is described in the IR 501 Small Matrix IR Remote Control User’s Guide. Keep the switcher out of bright light to prevent interference with the IR signals from the IR 501 remote control.
Operation, cont’d Control buttons and LEDs 5 Enter button — The Enter button saves changes when you set up a new configuration. To create a simple configuration: • Specify video, audio, or both (see controls [ • Press the desired input button ( 3 7 ] and [ 8 ]). ). • Press the desired output button(s) ( 4 ). • Press the Enter button. 6 Preset button and LED — The Preset button activates either Save Preset mode or Recall Preset mode. Save Preset mode saves a configuration as a preset.
9 Audio Setup LED — The Audio Setup LED lights red to indicate that the switcher is in Audio Setup mode. See Adjusting input audio gain and attenuation on page 3-18. Alternate IR error function — The Audio Setup LED also indicates errors when you use an IR 501 small matrix remote control. The LED lights for approximately 1 second when the switcher receives an unexpected or out-ofsequence IR command from the remote control. The switcher otherwise ignores the command.
Operation, cont’d Operations The following paragraphs detail the power-up process and then provide sample procedures for creating ties, sets of ties, and configurations; changing a configuration; viewing ties, sets of ties, and configurations; saving a preset; recalling a preset; viewing and adjusting the audio level; and selecting the front panel security lockout. Powering up the switcher 1. Plug in the switcher.
• If, when you are configuring video and audio ties, the Audio LED blinks and the Video LED is on after you have selected an input or output, the LEDs indicate audio breakaway, meaning that the audio ties are not the same as the video ties for that input. • If an input with no tie is selected, only that input’s LED lights. • As each output is selected, the associated output LED blinks to indicate a tentative tie until you press the Enter button or the 5-second timeout expires.
Operation, cont’d 3. Press and release the Output 3, Output 4, and Output 8 buttons (figure 3-5). The entire set of ties can be canceled at this point by waiting for the 5-second input/output button timeout to occur. Press and release the Output 3, 4, and 8 buttons. OUTPUTS 1 2 4 3 5 7 6 8 The LEDs blink to indicate that the selected input will be tied to these outputs. = Blinking LED Figure 3-5 — Select the outputs 4. Press and release the Enter button (figure 3-6).
Example 2: Add a video tie to a set of video and audio ties The following steps show an example in which a new video tie is added to the current configuration. The example shows the front panel indications that result from your actions. This example assumes that you have performed example 1. 1. Select video only for the tie (figure 3-8). Press the button to cycle through the selections. I/O The video LED lights when video is selected. VID The audio LED is off when audio is deselected.
Operation, cont’d The current configuration (figure 3-12) is now: • Input 5 video tied to output 1, output 3, output 4, and output 8 Input 5 video tied to outputs 1, 3, 4, and 8. Input 5 audio tied to outputs 3, 4, and 8. Input 5 1 3 4 Output 8 Video Audio Figure 3-12 — Example 2 configuration Example 3: Remove a tie from a set of ties The following steps show an example in which an existing tie is removed from the current configuration.
3. Press and release the Output 4 button (figure 3-15). Press and release the Output 4 button. OUTPUTS 1 2 4 3 5 7 6 8 The Output 4 LED goes out to indicate that the selected input will be untied from this output. Figure 3-15 — Deselect the output 4. Press and release the Enter button (figure 3-16). Press the Enter button to confirm the configuration change.
Operation, cont’d Viewing the configuration The current configuration (all active ties) can be viewed using the front panel buttons as follows: 1. Select video, audio, or both to view by pressing the I/O button. 2. Press and release an input or output button. a. Press and release an input button — All of the buttons for outputs that are tied to the selected input light. If the Audio LED is flashing, it indicates that there are audio-only ties (audio breakaway).
2. Press and release the Input 5 button (figure 3-19). Press and release the Input 5 button. INPUTS 2 1 4 3 5 7 6 8 The Input 5 LED lights to indicate that input 5 is selected. OUTPUTS 2 1 4 3 6 5 8 7 The Output 1, Output 3, Output 4, and Output 8 LEDs light to indicate the video ties created in examples 1, 2, and 3. I/O The audio LED blinks to indicate that for at least one tie audio is routed from a different source or not tied at all (audio breakaway).
Operation, cont’d Example 5: View ties by selecting outputs The following steps show an example of viewing the video and audio, audio-only, and video-only ties in the current configuration by selecting various outputs. The example shows the front panel indications that result from your actions. This example assumes that you have performed example 1, example 2, and example 3. 1. Select both video and audio for viewing (figure 3-22). Press the button to cycle through the selections.
Press and release the I/O button (figure 3-24). 3. Press the button to deselect audio. OUTPUTS I/O The video LED lights when video is selected. The audio LED is off when audio is deselected. 2 1 VID +dB AUD -dB 4 3 6 5 8 7 The Output 3 LED lights to indicate that output 3 is selected and it is receiving video. The source is indicated by the Input LED(s). The Output 1, Output 4, and Output 8 LEDs also light to indicate that they are receiving video from the indicated input.
Operation, cont’d Using presets The current configuration (configuration 0) can be saved as a preset in any one of 16 preset memory addresses. Each switch has as many presets available from the front panel as it has input and output buttons. For example, the MVX 44 has 8 presets (4 input buttons and 4 output buttons) available from the front panel and the MVX 88 has 16 (8 input buttons and 8 output buttons).
2. Press and release the Input 1 button (figure 3-27). All LEDs but Input 1 and the Preset LED go out. The Input 1 LED and Preset LED remain lit for 1 second to indicate the saved preset number and then go out. Press and release the Input 1 button to select preset 1. 2 1 3 Preset 2 Preset 3 All LEDs except the saved preset's LED go out. INPUTS 2 1 4 3 OUTPUTS 4 3 PRESET The LED for the saved preset and the Preset LED remain lit for 1 second then go out.
Operation, cont’d 2. Press and release the Input 1 button (figure 3-29). All LEDs but Input 1 and the Preset LED go out. The Input 1 LED and Preset LED remain lit for 1 second to indicate the recalled preset number and then go out. Press and release the Input 1 button to select preset 1. 2 1 3 Preset 2 Preset 3 All LEDs except the recalled preset's LED go out. OUTPUTS INPUTS 2 1 3 4 3 PRESET The LED for the recalled preset and the Preset LED remain lit for 1 second then go out.
In Audio Setup mode, whichever input is selected for adjustment is automatically tied to output 1. You can connect a VU meter or an audio system to output 1 to measure or monitor the audio while you perform adjustments. There are two ways to measure the audio level during audio setup: • Monitor the input audio level indicator (Power LED) on the front panel.
Operation, cont’d 5. Press and release the Audio Setup button to save the level value in memory and to exit Audio Setup mode. The Audio Setup LED turns off. • After approximately 30 seconds of front panel inactivity, the switcher saves the most recent input gain or attenuation levels and exits Audio Setup mode. • There is one audio gain or attenuation setting per input. The setting is shared by the left and right audio inputs.
a. If one or more output LEDs are lit AND the +dB LED is lit, press and release the button repeatedly until the highest-numbered lit output LED goes out. Count the button presses. In example 8, assume a value of +8 dB. It will take three presses of the button for the Output 1 LED to go out. If one or more output LEDs are lit AND the –dB LED is lit, press and release the button repeatedly until the highest-numbered lit output LED goes out. Count the button presses.
Operation, cont’d If another input button is pressed and released, the gain value for the current input is saved and the gain value for the newly selected input is displayed. 4. Press and release the Audio Setup button (figure 3-34). All audio changes are saved. Press the Audio Setup button to exit Audio Setup mode. I/O VID +dB AUD -dB All input and output LEDs turn off. AUDIO SETUP The Audio Setup LED turns off.
3. Press and release the and buttons simultaneously (figure 3-37). Simultaneously press and release the button and button. The Audio Setup LED blinks off and then relights. AUDIO SETUP Figure 3-37 — Reset the selected input level 4. If desired, reset other inputs’ audio levels by repeating steps 2 and 3. After approximately 30 seconds of front panel inactivity, the switcher saves the most recent input gain or attenuation levels and exits Audio Setup mode. 5.
Operation, cont’d Front panel security lockout (Executive mode) The MVX Series switchers have a front panel security lockout feature (Executive mode) that limits the operation of the switcher from the front panel and optional IR remote control. When the switcher is locked, the Enter button, I/O button (video, audio, or video and audio selection), and all of the front panel audio gain and attenuation functions are disabled.
Resetting the system to factory defaults To reset a switcher to the factory default settings, press and hold the I/O button on the front panel while applying AC power (figure 3-42). Continue to hold the I/O button until all LEDs light and then release the I/O button. The power up sequence completes (all LEDs turn off then turn on and off from left to right, the Video and Audio LEDs turn on, and all other LED remain off). System reset does the following: • Clears all ties and presets.
Operation, cont’d Optimizing the Audio Each individual input audio gain can be adjusted within a range of -18 dB to +10 dB to eliminate noticeable volume differences between sources and to achieve the best headroom and signal-to-noise ratio. Adjust the audio level as follows: 1. Connect audio sources to all desired inputs and connect the audio outputs to output devices such as audio players. See Audio input and output connections (audio/video models only), in chapter 2, Installation.
Worksheets Rather than trying to remember the configuration for each preset, use worksheets to record this information. Make copies of the blank worksheet on page 3-31 and use one for each preset configuration. Cross out all unused or inactive inputs and outputs. If applicable, use different colors for video and audio. Worksheet example 1: System equipment Figure 3-34 shows a worksheet for an MVX 88 in a fictional organization with the system hardware annotated.
Operation, cont’d Worksheet example 2: Daily configuration Figure 3-44 continues from worksheet example 1 by showing the video and audio ties that make up the configuration of preset 1. A solid ink line shows video ties and a dashed pencil line shows the audio ties.
Worksheet example 3: Test configuration The A/V system in our fictional organization needs to be fine tuned on a regular basis. Figure 3-45 shows a typical test configuration, with an Extron video test generator (input 8) generating a test pattern to all monitors (outputs 1, 2, 3, 4, and 8). Sound checks are run from the CD player (input 5) to all audio systems (outputs 1, 2, 4, 5, and 8).
Operation, cont’d 3-30 MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation 3-31 Title: 2 2 3 3 5 5 Video: Audio: Output destinations 4 4 Fill in the preset number and use colors, or dashes, etc. to make connecting lines. Indicate if the configuration is for Video, Audio, or both.
Operation, cont’d 3-32 MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers 4 Chapter Four Remote Operation Simple Instruction Set Control Matrix Switchers Control Program
Remote Operation, cont’d Remote Operation The MVX VGA Series switchers can be remotely controlled via the switcher’s rear panel RS-232 connector (figure 4-1) or using an optional infrared Small Matrix Universal Remote Control (figure 4-2).
Switcher-initiated messages When a local event such as a front panel operation or an IR 501 command string occurs, the switcher responds by sending a message to the host. The switcherinitiated messages are listed below (underlined). The switcher does not expect a response from the host, but, for example, the host program might request a new status. (C) Copyright 2004, Extron Electronics “MVX nn VGA/A Series”, Vx.xx The copyright message is initiated by the switcher when it is first powered on. Vx.
Remote Operation, cont’d Switcher error responses When the switcher receives an SIS command and determines that it is valid, it performs the command and sends a response to the host device. If the switcher is unable to perform the command because the command is invalid or contains invalid parameters, the switcher returns an error response to the host.
Command/response table for SIS commands Command ASCII Command Response (host to switcher) Additional description (switcher to host) Create ties 1. Commands can be made back-to-back, with no spaces. For example: 1*1!02*02&003*003$4*4!. 2. The quick multiple tie and tie input to all output commands activate all I/O switches simultaneously. 3.
Remote Operation, cont’d Command/response table for SIS commands (cont’d) Command ASCII Command Response Additional description (host to switcher) (switcher to host) RGB mute X3 *1B Vmt X3 *1 Mute output RGB unmute Read RGB mute X3 *0B Vmt X3 *0 X3 B X8 Unmute output X3 video (RGB on). 1= mute on, 0 = mute off. Global RGB mute 1*B Vmt1 Mute all video outputs. Global RGB unmute 0*B Vmt0 Unmute all video outputs. RGB mute commands X3 video (RGB off).
Command/response table for SIS commands (cont’d) Command ASCII Command Response (host to switcher) Additional description (switcher to host) Global presets Save current configuration as preset Example: Recall a preset Example: Direct write of a global preset Example: View global preset configuration Response description: Example (MVX 88 VGA): , Command character is a comma. Save current ties as preset 8. X10 . Command character is a period. 5.
Remote Operation, cont’d Command/response table for SIS commands (cont’d) Command ASCII Command Response (host to switcher) (switcher to host) Reset global presets Reset individual global preset Reset audio input levels Esc ZG Esc ZA Zpg Zpg X10 Zpa Reset audio output levels Esc ZV Zpv Reset all mutes Reset all RGB delay settings Reset whole switcher Esc ZZ Zpz Zpd Zpx Additional description Resets Esc X10 ZG Esc ZD Esc ZXXX Clear all global presets. Clear global preset X10 .
Command/response table for SIS commands (cont’d) Command ASCII Command Response Additional description (host to switcher) (switcher to host) Esc upload See Loading firmware using and SIS command below. Information request Example: I I V X1 X X3 •A X1 X X3 V8X4•A8X4 Request part number Example: N N xx-xxx-xx 60-638-21 Query firmware version Example: Q Q 1.23 Firmware upload Upload firmware Information requests V X1 X X3 = V size, A X1 X X3 = A Size.
Remote Operation, cont’d 4. Click Transfer > Send text file... . 5. Click the Files of type: drop box and select All files (*.*). 6. Navigate to the folder where you saved the firmware upgrade file. Select the file (figure 4-4). Ensure that the firmware upgrade is for the MVX Series AV switcher. Valid firmware files must have the file extension “.s19”. Any other file extension is not a firmware upgrade for your switcher. Figure 4-4— Select the firmware upgrade file 7. Click Open.
Matrix Switchers Control Program The Extron Matrix Switchers Control Program accompanies the MVX Series VGA switchers. The program, which communicates with the switcher via the RS-232 port, provides an easy way for you to set up ties and sets of ties. The program is compatible with Windows 95/98, Windows NT, Windows ME, Windows 2000, and Windows XP. Updates to this program can be downloaded from the Extron Web site (http://www.extron.com). Installing the software The program is contained on a set of 3.
Remote Operation, cont’d a. If you selected a comm port, check that the baud rate displayed in the comm port selection window is the switcher’s rate of 9600. If you need to change the baud rate, click the Baud button and double-click on 9600. Click OK and proceed to step 3. b. 3. If you selected Emulate, click OK and see Using emulation mode on page 4-18. The Extron Matrix Switchers Control Program window (figure 4-7 and figure 4-8) displays the current configuration of the attached matrix.
Figure 4-8 — Sample program window (complete) 4. To set up audio to follow video (audio and video have the same tie configuration), select the Follow checkbox at the bottom of the window. To set up audio to breakaway (audio and video have different tie configurations), deselect the Follow checkbox. 5. To make the control program easier to use, assign a device icon to each input and output.
Remote Operation, cont’d Updating the firmware The firmware upgrade utility provides a way to replace the firmware that is coded on the switcher’s control board without taking the switcher out of service, opening the switcher enclosure, and replacing the firmware chip. Upgrading the firmware does not overwrite the current configuration, presets, or the audio settings. Update the switcher firmware as follows: 1. Visit the Extron web site, www.extron.
Valid firmware files must have the file extension “.S19”. Any other file extension is not a firmware upgrade. 5. Click the Open button. A status bar, which shows the progress of the upload, appears in the Firmware Loader window (figure 4-10). The firmware upload to the switcher may take several minutes.
Remote Operation, cont’d Windows buttons, drop boxes, and trash The buttons on the right side of the window perform the following functions: Power — Unavailable for MVX switcher, because the switcher power cannot be controlled via software. Executive mode (front panel security lockout) — Allows you to lock out front panel operations, except for the view-only mode functions. Presets menu — Displays a list of up to 16 presets. You can select a preset from the list to display it in the window.
Tools menu — Assign device icons — Displays the complete set of input and output device icons. You can drag any of these icons to the input and output boxes. Edit device palette — Allows you to add your own device icon graphics. RGB delay settings — Displays the RGB Delay/ Mute/Output-Volume Adjust window (figure 4-11), which shows the RGB delay setting for each output and allows you to change it.
Remote Operation, cont’d Mute-output settings — Displays the RGB Delay/Mute/Output-Volume Adjust window (figure 4-11), which allows you to mute and unmute the video and audio output for a single output or for all outputs. This window also displays the RGB delay and output volume level settings and allows you to change them.
Ties as crosspoints — Displays ties as a grid of inputs and outputs (figure 4-14). Current ties are indicated as orange (video and audio), green (video only), or red (audio only) boxes. New ties that will take effect when you click the Take button are indicated by +. Ties that will be broken when you click the Take button are indicated by –. Figure 4-14 — Ties shown as crosspoints Icons in I/O boxes — Erases any numbers in the I/O boxes in either the ties-as-lines window or the ties-as-boxes window.
Remote Operation, cont’d Master-Reset selection — Master-Reset clears all ties and presets, clears all video and audio mutes, sets all input audio gain to unity gain (+0 dB), and sets all output levels to the factory default (professional level, +4 dBu). Using Emulation mode Emulation mode allows you to set up the software without attaching the switcher to the computer. To use Emulation mode, do the following: 1.
Using the help system For information about program features, you can access the help program in any of the following ways: • From the Extron Electronics program folder or group, double-click on the Matrix Switcher Help icon (shown at left). • From within the Matrix Switcher Control Program, click on the Help menu on the main screen. • From within the Matrix Switcher Control Program, press the F1 key.
Remote Operation, cont’d 4-22 MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Remote Operation
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers A Appendix A Specifications and Part Numbers Specifications Part Numbers
Specifications andand PartPart Numbers, cont’d Specifications Numbers Specifications Video Routing MVX 44 VGA A ................ MVX 48 VGA A ................ MVX 84 VGA A ................ MVX 88 VGA A ................ Gain ............................................... Bandwidth .................................... Crosstalk ....................................... Switching speed ...........................
Sync Input type ..................................... RGBHV, RGBS, RGsB, RsGsBs, component video (bi-level and tri-level sync), S-video, composite video Output type .................................. RGBHV, RGBS, RGsB, RsGsBs, component video (bi-level and tri-level sync), S-video, composite video (follows input) Standards ...................................... Computer scan rates and also NTSC 3.58, NTSC 4.43, PAL, SECAM Input level ..................................... 0.5 V to 5.0 Vp-p Output level .....
Specifications and Part Numbers, cont’d Audio output Output gain .................................. 0 dB unbalanced (Consumer) or +12 dB balanced (Pro), selectable; default = +12 dB, balanced, when output level is set to “Pro” Number/signal type MVX 44/84 VGA A ......... 4 stereo, balanced/unbalanced MVX 48/88 VGA A ......... 8 stereo, balanced/unbalanced Connectors MVX 44/84 VGA A ......... (4) 3.5 mm captive screw connectors, 5 pole MVX 48/88 VGA A ......... (8) 3.
Part Numbers MVX Series VGA switchers Part MVX 44 VGA A video and audio switcher Part # 60-635-21 MVX 48 VGA A video and audio switcher 60-636-21 MVX 84 VGA A video and audio switcher 60-637-21 MVX 88 VGA A video and audio switcher 60-638-21 Included parts Part Rack/desk mounting kit Captive screw audio connectors Tweeker IEC power cord MVX Series VGA Matrix Switcher User’s Manual Matrix Switchers Control program Part # 70-077-03 10-319-10 Optional accessories Part IR 501 small matrix universal re
Specifications and Part Numbers, cont’d Cable assemblies Part Part # VGA male to male cable, 3' to 50' (0.91 m to 15.24 m) MHRA (molded) 26-490-nn VGA male to male cable, 3' to 50' (0.91 m to 15.24 m) MHRA (backshell) 26-490-nn VGA male to male 90 cable, 3' to 12' (0.91 m to 3.66 m) MHRA (molded) 26-510-nn VGA male to male 90 cable, 3' to 12' (0.91 m to 3.66 m) MHRA (backshell) 26-510-nn VGA male to male 90U cable, 3' to 12' (0.91 m to 3.
FCC Class A Notice Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
