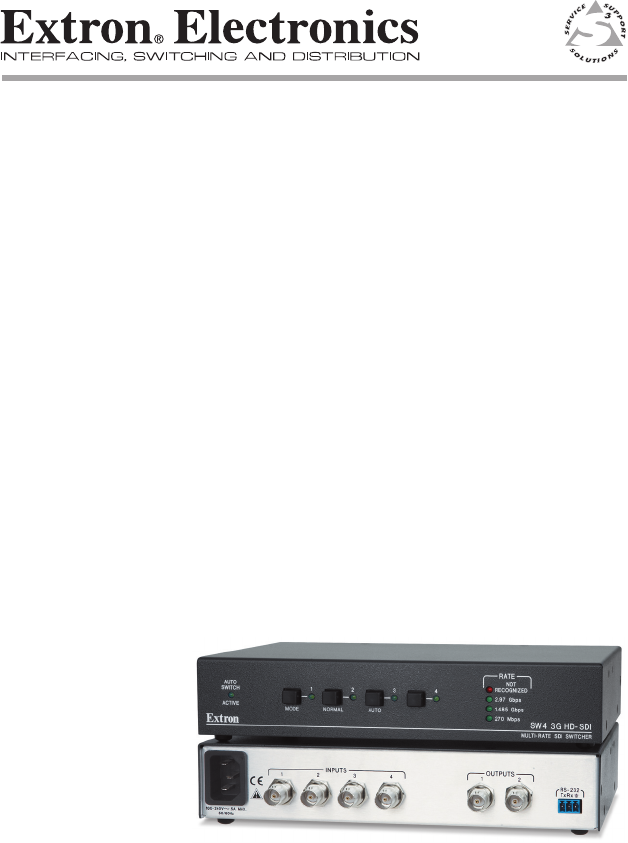

User’s Manual SW4 3G HD-SDI Multi-rate SDI Switcher 68-1571-01 Rev.
Precautions Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock. Caution Read Instructions • Read and understand all safety and operating instructions before using the equipment.
安全须知 • 中文 警告 这个符号提示用户该设备用户手册中 有重要的操作和维护说明。 电源 • 该 设 备 只 能 使 用 产 品 上 标 明 的 电 源 。 设 备 必须使用有地线的供电系统供电。 第三条线 （地线）是安全设施，不能不用或跳过。 这个符号警告用户该设备机壳内有暴 拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后 或桌面电源的电源线，或任何接到市电系统的电源线。 露的危险电压，有触电危险。 电源线保护 • 妥善布线， 避免被踩踏，或重物挤压。 注意 阅读说明书 • 用 户 使 用 该 设 备 前 必 须 阅 读 并 理 解所有安全和使用说明。 保存说明书 • 用户应保存安全说明书以备将来使 用。 遵守警告 • 用户应遵守产品和用户指南上的所有安 全和操作说明。 维护 • 所有维修必须由认证的维修人员进行。 设备内部没 有用户可以更换的零件。为避免出现触电危险不要自己 试图打开设备盖子维修该设备。 通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止 机内敏感元件过热。 不要用任何东西挡住通风孔。 锂电池 • 不正确的更换电池会有爆炸的危险。 必须使用与 厂家推荐的相同
Quick Start Guide — SW4 3G HD-SDI Installation 6" Deep Rack Shelf Step 1 Turn off all of the equipment and disconnect it from the power source. Step 2 (Optional) Mount the switcher on one of the rack options. 1/2 Rack Width Front False Faceplate Front false faceplate uses 2 screws. (2) 4-40 x 3/16" Screws Use 2 mounting holes on opposite corners. Step 3 Connect the video input cable(s). Connect up to four video inputs to the switcher’s BNC input connectors 1 through 4.
Quick Start Guide — SW4 3G HD-SDI, cont’d Computer Switcher 5 RS-232 1 Tx Rx Receive Transmit Ground 9 6 DB9 connector (female) pinout to control equipment Pin 1 2 3 4 5 6 7 8 9 RS-232 — RX TX — Gnd — — — — Function — Receive data (+) Transmit data (–) — Signal ground — — — — See chapter 3, “Serial Communication,” for Simple Instruction Set (SIS™) commands to communicate with the switcher via RS-232.
Quick Start Guide — SW4 3G HD-SDI, cont’d • If you are using auto-input switch mode, no action is necessary. The switcher automatically switches to the highest numbered active input. N Outputs 1 and 2 output an identical signal. 6 7 RATE NOT RECOGNIZED AUTO SWITCH ACTIVE 1 2 3 4 2.97 Gbps 1.485 Gbps MODE NORMAL AUTO 270 Mbps SW4 3G HD-SDI MULTI-RATE SDI SWITCHER 1 2 3 4 5 Step 3 If needed, you can create a remote connection via RS-232 (see chapter 3, “Serial Communication”).
Quick Start Guide — SW4 3G HD-SDI, cont’d QS-4 SW4 3G HD-SDI • Quick Start Guide
Table of Contents Chapter One • Introduction ................................................... 1-1 About this Manual ..................................................................... 1-2 Features ......................................................................................... 1-2 Chapter Two • Installation and Operation . .................. 2-1 Installation Overview . .............................................................. 2-2 Rack Mounting ...........................................
Table of Contents, cont’d All trademarks mentioned in this manual are the properties of their respective owners. 68-1571-01 Rev.
SW4 3G HD-SDI 1 Chapter One Introduction About this Manual Features
Introduction About this Manual The Extron SW4 3G HD-SDI switcher is a four-input, two parallel output, multi-rate switcher. It allows up to four SDI or HD-SDI video input sources to be switched to two identical outputs on female BNC connectors. The SW4 HD-SDI supports multiple SDI rates, including 270 Mbits per second, 1.485 Gbps, and 2.97 Gbps. The switcher can be controlled via the front panel buttons, or via RS-232 communication, using Extron’s Simple Instruction Set (SIS™).
Control System DI -S 4 3G SW HD -232 RS S UT 2 TP OU 1 HD-SDI Monitor 4 TS PU IN 3 2 0.
Introduction, cont’d 1-4 SW4 3G HD-SDI • Introduction
SW4 3G HD-SDI 2 Chapter Two Installation and Operation Installation Overview Rack Mounting Rear Panel Connections Front Panel Controls and Indicators Selecting Auto-input Switch Mode Locking the Front Panel Resetting
Installation and Operation Installation Overview To install and set up the SW4 3G HD-SDI switcher, 1 Mount the switcher on a 6" or 9.5" deep rack shelf, if desired. 2 Connect up to four video inputs to the switcher’s BNC input connectors 1 through 4. 3 Connect one or two video output devices to the switcher’s BNC output connectors (SDI, HD-SDI, or 3G-SDI). 4 (Optional) Wire the provided 3-pole captive screw plug to your RS-232 cable, and connect the other end of the cable to your computer.
3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven mechanical loading. 4. Circuit overloading — Connect the equipment to the supply circuit and consider the effect that circuit overloading might have on overcurrent protection and supply wiring. Consider equipment nameplate ratings when addressing this concern. 5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment.
Installation and Operation, cont’d 1U Universal Rack Shelf 1/2 Rack Width Front False Faceplate Front false faceplate uses 2 screws. (2) 4-40 x 3/16" Screws Using screws longer than 3/16” will damage the unit and void the warranty. Use 2 mounting holes on opposite corners. Mounting the switcher on a standard rack shelf Rear Panel Connections 3 2 1 1 2 INPUTS 3 4 OUTPUTS 1 2 4 RS-232 Tx Rx 100-240V~.5A MAX.
N When the input rate is recognized as 270 Mbps, 1.485 Gpbs, or 2.97 Gbps, the output is re-clocked to the recognized rate. N Outputs 1 and 2 simultaneously output identical signals. RS-232 connector — Connect a cable with a 3.5 mm, 3-pole captive screw connector to this port for bidirectional RS-232 communication. Wire the connectors as shown in the following figure.
Installation and Operation, cont’d Front Panel Controls and Indicators 6 7 RATE NOT RECOGNIZED AUTO SWITCH 1 2 3 4 2.97 Gbps 1.485 Gbps ACTIVE MODE NORMAL AUTO 270 Mbps SW4 3G HD-SDI MULTI-RATE SDI SWITCHER 1 2 3 4 5 SW4 3G HD-SDI switcher front panel a b c d e Auto Switch Active LED — When lit, this green LED indicates that the switcher is in auto-input switch mode. In this mode, the switcher automatically switches to the highest numbered input with active sync pulses.
g Input 1 through 4 LEDs — The Input LEDs indicate the selected input. Connecting an Input to the Outputs To create a tie between an input and the outputs, 1. Select the operation mode for the switcher (the default mode is normal). • Use auto-input switch mode if you want the switcher to automatically switch to the highest numbered input with active sync pulses. (See “Selecting Auto-input Switch Mode,” later in this chapter.) • Use normal mode if you want to change the input manually. 2.
Installation and Operation, cont’d RATE NOT RECOGNIZED AUTO SWITCH ACTIVE 1 2 3 4 2.97 Gbps 1.485 Gbps MODE NORMAL AUTO 270 Mbps SW4 3G HD-SDI MULTI-RATE SDI SWITCHER Turning on auto-input switch mode The Auto Switch Active LED lights, indicating that auto-input switching is enabled. To select normal mode (turn auto-input switch mode off), 1. Press and hold the Mode (Input 1) button. 2. While holding down the Mode button, press and hold the Normal (Input 2) button. 3.
Locking the Front Panel To prevent front panel input buttons being pressed accidentally or by unauthorized users, you can place the switcher in executive mode. To toggle executive mode on and off, press the Input 1 button and the Input 4 button simultaneously, and hold them down for 3 seconds. All front panel LEDs flash three times, indicating the mode switch.
Installation and Operation, cont’d 2-10 SW4 3G HD-SDI • Installation and Operation
SW4 3G HD-SDI 3 Chapter Three Serial Communication Setting Up RS-232 Communication Using Simple Instruction Set (SIS) Commands Updating the Firmware
Serial Communication Setting Up RS-232 Communication The SW4 3G HD-SDI switcher can be configured and controlled by SIS (Simple Instruction Set) commands via the switcher’s RS-232 port. This port is used to connect the switcher to a host or external controlling device, such as a computer or control system, that can generate the proper command codes and recognize the switcher’s responses. Wire the RS-232 connector as shown below.
Switcher-initiated messages When a local event such as a front panel operation or error condition occurs, the switcher responds by sending a message to the host. The switcher-initiated messages are listed below: (c) Copyright 2008, Extron Electronics, SW4 3G HD-SDI, Vx.xx] The switcher issues the copyright message when it first powers on. Vx.xx is the firmware version number. Inn] The switcher sends the Inn message whenever the selected input is changed using the front panel buttons.
Serial Communication, cont’d Using the command/response table The “Command/response table for SIS commands” begins on page 3-5. The symbols used throughout the table represent variables in the command/response fields. Lower- and uppercase letters are interchangeable, and command and response examples are shown throughout the table. The ASCII to HEX conversion table below is for use with the command/response table.
Command/response table for SIS commands Command ASCII Command Response X! ! In X@ B Vmt X# ] B X# ] Turn executive mode on 1x Exe X@ ] Turn executive mode off 0x Exe X@ ] View executive mode status X X@ ] Display front panel lockout on/off status. For X@: 1 = on; 0 = off. X# # F X# ] Set to normal or auto-input switch mode. For X$: 1 = normal, 2 = auto.
Command SW4 3G HD-SDI • Serial Communication ASCII Command Response (switcher to host) Additional Description (host to switcher) View input signal presence and re-clocker rate Request status of all inputs Example 0L S X@ X@ X@ X@ * X$ ] 0LS 1011 * 2 I In X! • F X# • Vmt X@ • Rate X$ ] Each X@ response is the signal status of an input, in order from input 1 to 4. For X@: 0 = no signal 1 = signal detected. For X$: 0 = unrecognized 1 = 2.97 Gbps 2 = 1.
Command/response table for SIS commands, continued Command ASCII Command Response Additional Description E Upload] ...go Upl ] Upl ] appears after the upload is complete. E Zxxx} Zpx ] Reset the unit to factory default settings (except for the firmware).
Serial Communication, cont’d Updating the Firmware Extron periodically updates product firmware in conjunction with the release of new software revisions. When updating any Extron software to the latest revision level, be sure to read the supplied release notes or contact an Extron Application Engineer to determine if your Extron product requires a firmware update.
Loading the firmware to the switcher To load a new version of firmware to your SW4 3G SD-HDI, use the Extron Firmware Loader software. Your computer’s serial port must be connected to the switcher’s RS-232 serial port. See “Rear Panel Connections,” in chapter 2, “Installation and Operation,” for information on connecting to the serial port. 1. If you have not already done so, download the Firmware Loader installer executable file to your computer (see “Downloading the firmware,” earlier in this chapter).
Serial Communication, cont’d 7. Click OK. The firmware selection screen appears. 8. Click Browse to open the Choose Firmware File window, and locate the firmware file that you downloaded. (By default, the firmware file is placed at c:\Program Files\ Extron\Firmware when downloaded from the Extron site.) C 3-10 The firmware file must have a .s19 extension. Uploading any other file type could cause the switcher to stop functioning.
9. On the Choose Firmware File window, double-click on the new firmware file to open it. The Choose Firmware File window closes, and the path to the selected firmware file is displayed in the “Select a firmware file” field on the firmware file selection screen. 10. Click the Upload button. A status bar, which shows the progress of the upload, appears in the Firmware Loader window. The firmware upload to the switcher may take several minutes.
Serial Communication, cont’d When the firmware upload process is completed, the message “Transfer Complete!” is displayed, and the new firmware version number appears in the Current Unit Information field. C 11. 3-12 If the Firmware Loader utility exits before the status bar has progressed completely across the indicator window, the firmware may be corrupted and may no longer respond to commands. Click Exit to close the Firmware Loader.
SW4 3G HD-SDI A Appendix A Specifications, Part Numbers, and Accessories Specifications Part Numbers
Specifications, Part Numbers, and Accessories Specifications Video Gain ������������������������������������������������ Unity Resolution �������������������������������������� 8 or 10 bits, automatic Operation standards �������������������� SMPTE 259M, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.
General Power ��������������������������������������������� 100 VAC to 240 VAC, 50/60 Hz, 4 watts, internal Temperature/humidity ���������������� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling ������������������������������������������� Convection, no vents Rack mount ������������������������������������ Yes, with optional 1U, 9.5" deep rack shelf, part #60-190-01 (RSU 129) or 60-604-02 (RSB 129); or 1U, 6.
Specifications, Part Numbers, and Accessories Part Numbers Included parts These items are included in each order for an SW4 3G HD-SDI switcher: Included parts Part number SW4 3G HD-SDI 60-956-01 IEC power cord (1) Female 3.
Extron’s Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase.
