Retrieve a stored nurse call message
When unread nurse call messages are available, the Text
Message icon will appear.
From Standby mode, use the Left Soft key to select
Menu. In the Messages menu, use the up and down
arrows of the Scroll key to Scroll to Inbox, then use the
Left Soft key to Select this option. Use the up and down
arrows of the Scroll key to preview the list of stored
messages. Use the Left Soft key to select Open to view
the entire message.
When the message is open, use the Left Soft key to
select Options (see Figure 15.1), and use the up and
down arrows of the Scroll key to Scroll to Delete,
CallBack or Backup. Use the Left Soft key to Select the
desired option (see Figure 15.2).
Delete
Enables caregivers to delete the stored message. Use the
Left Soft key to select Confirm and delete the message.
Callback
Enables caregivers to make a voice connection via the
NCS intercom in the patient’s room. Use the Left Soft key
to Select this option.
Backup
Enables caregivers to forward the message to an
assigned secondary caregiver. Use the Left Soft key to
Select this option.
Nurse call log
The 9p23 portable handset will store up to 15 nurse call
messages. Unread messages are displayed in order of
priority. Previously read messages are displayed in the
order received. The display will also indicate the status of
the message with the letters
C, D, R or N. (see Figure 15.3).

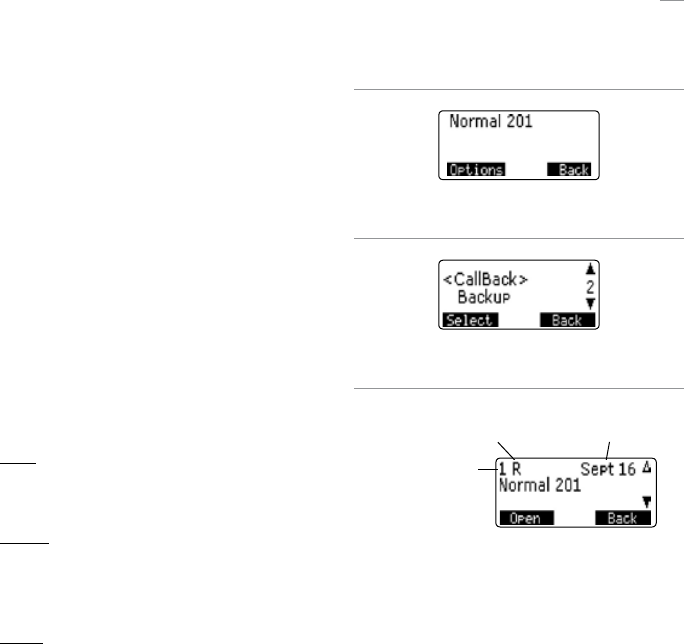

Figure 15.1
Figure 15.2
Figure 15.3
Message Status Indicator
Memory Position
C = Called D = Deferred
N = New R = Read
Date of Message
