Manual

CONFIGURATION
7
USB interface Configuration
USB
configuration
PC side connector
Type A, host
GBS-1000 side
connector
Type B, slave
Speed
1.1/2.0 (full speed)

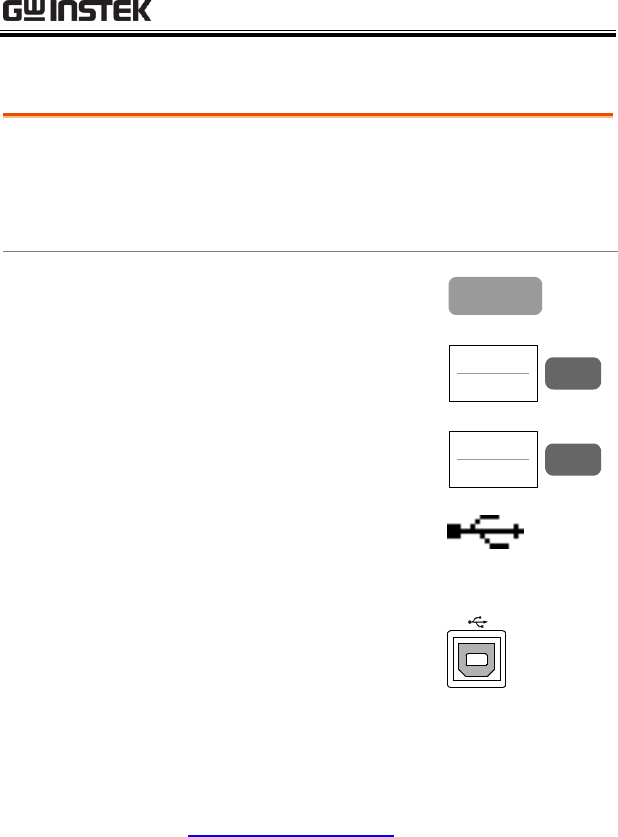

Panel operation
1. Press the Utility key.
Utility
2. Press F2 (Interface Menu).
Interface
Menu
F 2
3. Press F1 (Type) repeatedly
to select USB.
Type
USB
F 1
4. The interface icon at the top
of the display changes into
USB type.
5. Connect the USB cable to
the rear panel slave port.
6. When the PC asks for the USB driver, select
dso_vpo.inf included on the User Manual CD
or in the FreeWave software package
downloadable from GW website,
www.gwinstek.com.tw, GBS-1000 product
corner.
