HP Data Protector Software Cell Manager Planning and Sizing
Table Of Contents
- Executive summary
- Solution description
- Cell Manager software topology
- IDB architecture
- Why should you configure the IDB?
- Regular IDB backups
- IDB notifications
- Limitations
- IDB Growth and Performance
- IDB key growth factors
- IDB key performance factors
- IDB key growth and performance parameters
- Influence of logging level on IDB
- Example: Changing of logging level for filesystem backup
- Influence of catalog protection on IDB
- Example: Changing of catalog protection of a backup
- Recommended usage of logging level and catalog protection
- Use different logging levels in the same cell
- Different logging levels for ObjectCopies
- Specifics for small cells
- Specifics for large cells
- Maintenance of DCBF directories
- Cell Manager hardware aspects to consider
- Cluster support for Data Protector software Cell Manager
- Security
- IDB space consumption example
- Cell Manager requirements
- For more information
Session managers
The Cell Manager CRS service listens for session requests and starts the appropriate session
managers, which in turn starts the required clients. A dedicated session manager controls the clients
for each operation. If a new session is started, an additional session manager session is generated.
bsm Backup Session Manager
rsm Restore Session Manager
csm Copy Session Manager (used for object copy and object consolidation)
dbsm Database Session Manager
msm Media Session Manager
asm Administration Session Manager

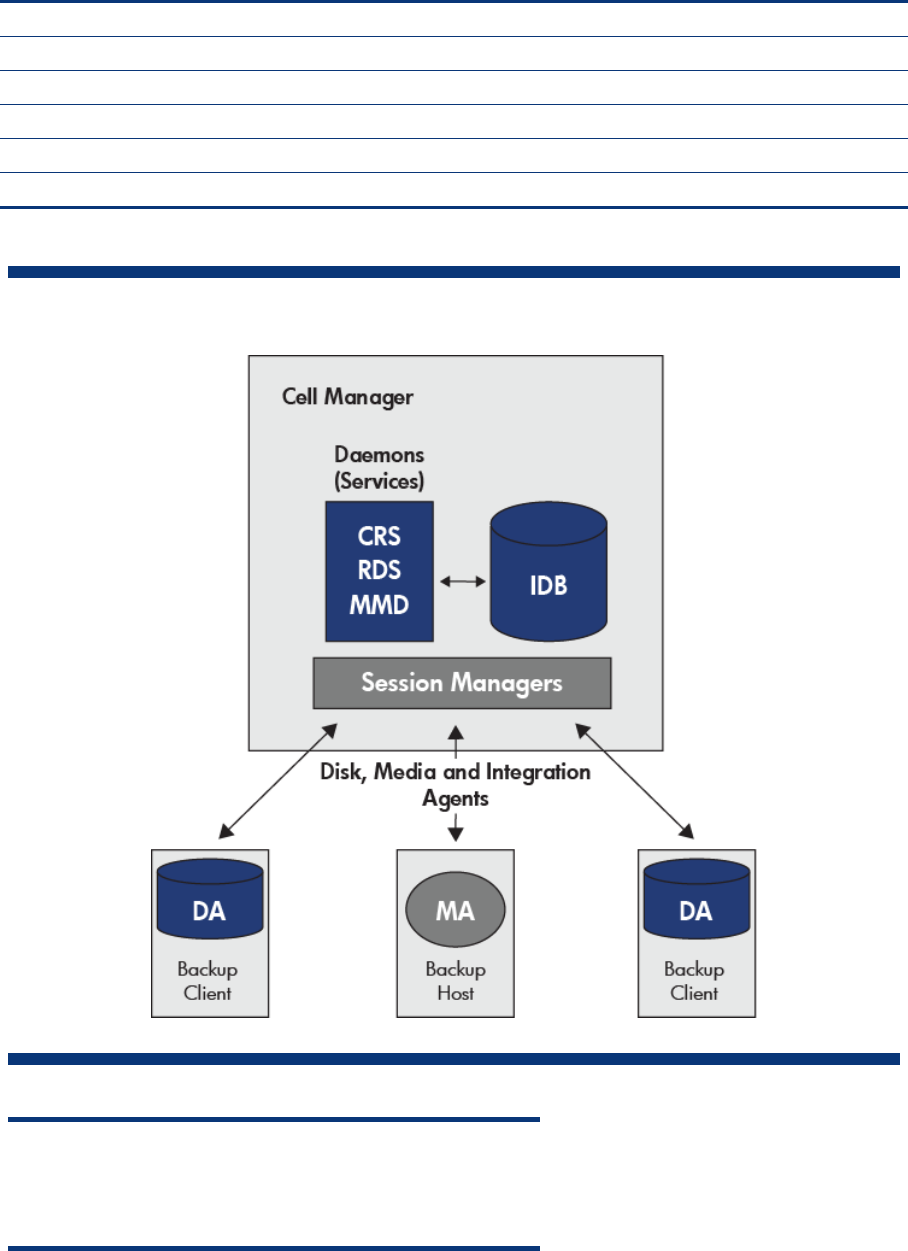

Figure 1: Cell manger topology
Note:
Disk Agent (DA) and Media Agent (MA) components can be installed on
the Data Protector Cell Manager host as well on clients belonging to that
Cell Managers cell to fulfill their designated roll.
5
