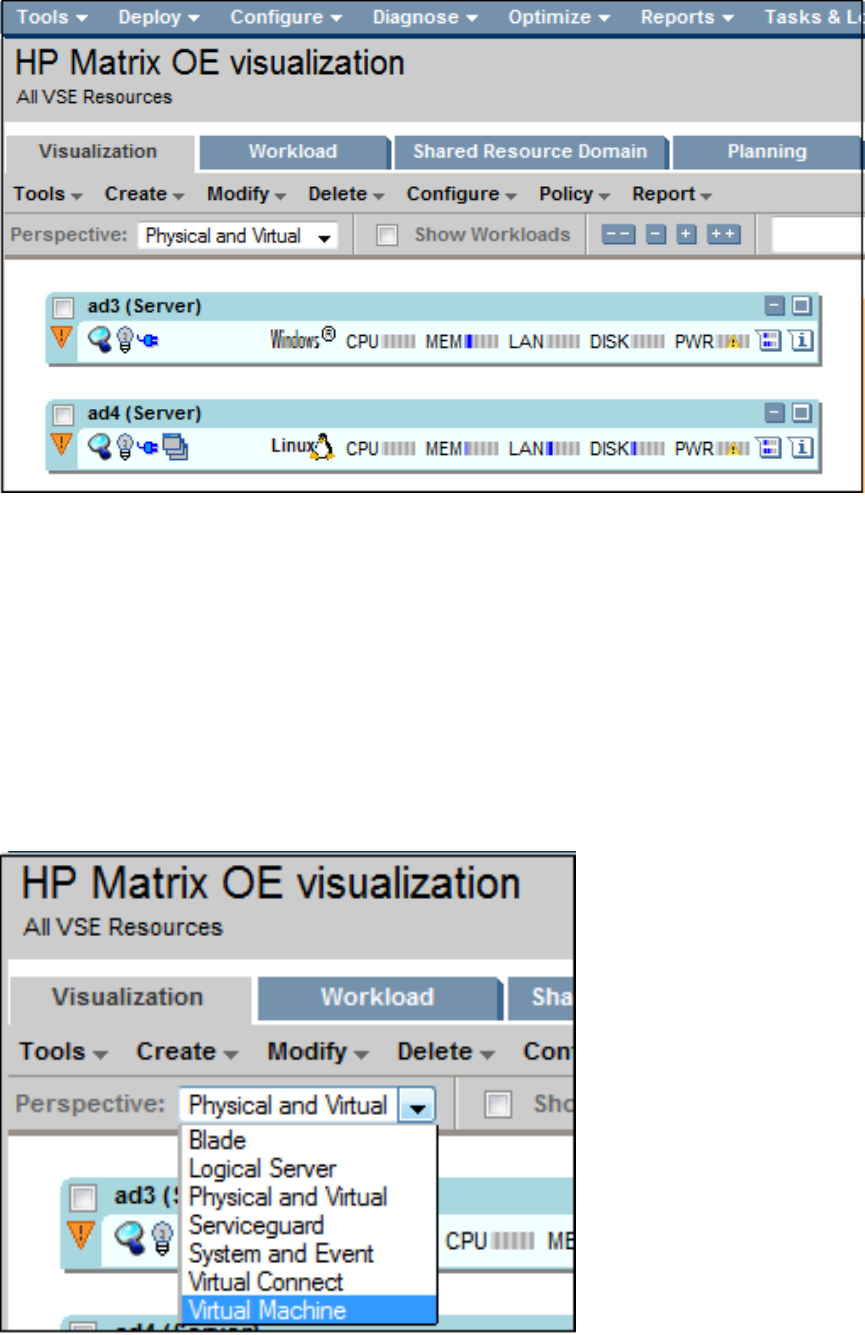

Figure 5 HP Matrix OE visualization — Visualization tab
2. The first time you start HP Matrix OE visualization, the Visualization tab appears with the
default Physical and Virtual perspective, which shows all physical and virtual nodes in graphical
compartments. When you start HP Matrix OE visualization any time after, the software checks
whether you had previously set a default view by modifying user preferences (modify user
preferences by selecting Configure→User Preferences... from the HP Matrix OE visualization
menu bar). If you set a collection such as VSPs, HP Matrix OE visualization displays the
collection for all VSPs and VMs or vPars.
The Perspective menu allows you to choose a view comprised solely of VSPs and VMs or vPars
(both HP Integrity VM and VMware ESX, if both products are present among the resources).
Select Virtual Machine from the drop-down menu, as shown in Figure 6.
Figure 6 Selecting VM or vPar perspective
