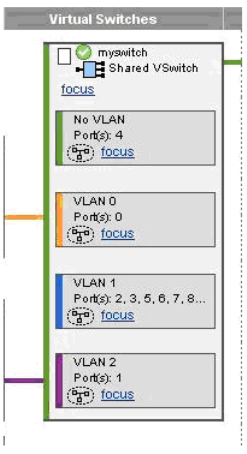

Figure 19 Virtual LAN
If a virtual switch has VLANs configured on it, each VLAN appears as a separate box within the
virtual switch box. The virtual NICs from the VMs or vPars are connected to the appropriate VLAN
box by a color-coded line. The switch port used by the virtual NIC is listed in its box. The VLAN
boxes list the switch ports that are using that VLAN ID.
For ports on the switch that are not associated with a VLAN, the virtual switch contains a box
labeled No VLAN. Virtual NICs can be connected to the No VLAN box.
