# /opt/hitachi/HNTRLib2/bin/hntr2utl2
The Hitachi Network Objectplaza Trace Library setup menu appears.
If you do not want to change the settings, type e and then press the
Enter key to quit the menu.
The following explains how to modify each setting.
Changing the Size of Integrated Trace Files
The following procedure shows how to change the size of integrated trace
files.
To change the size of integrated trace files:
1. In the Hitachi Network Objectplaza Trace Library setup menu, type 1 and
then press the Enter key.

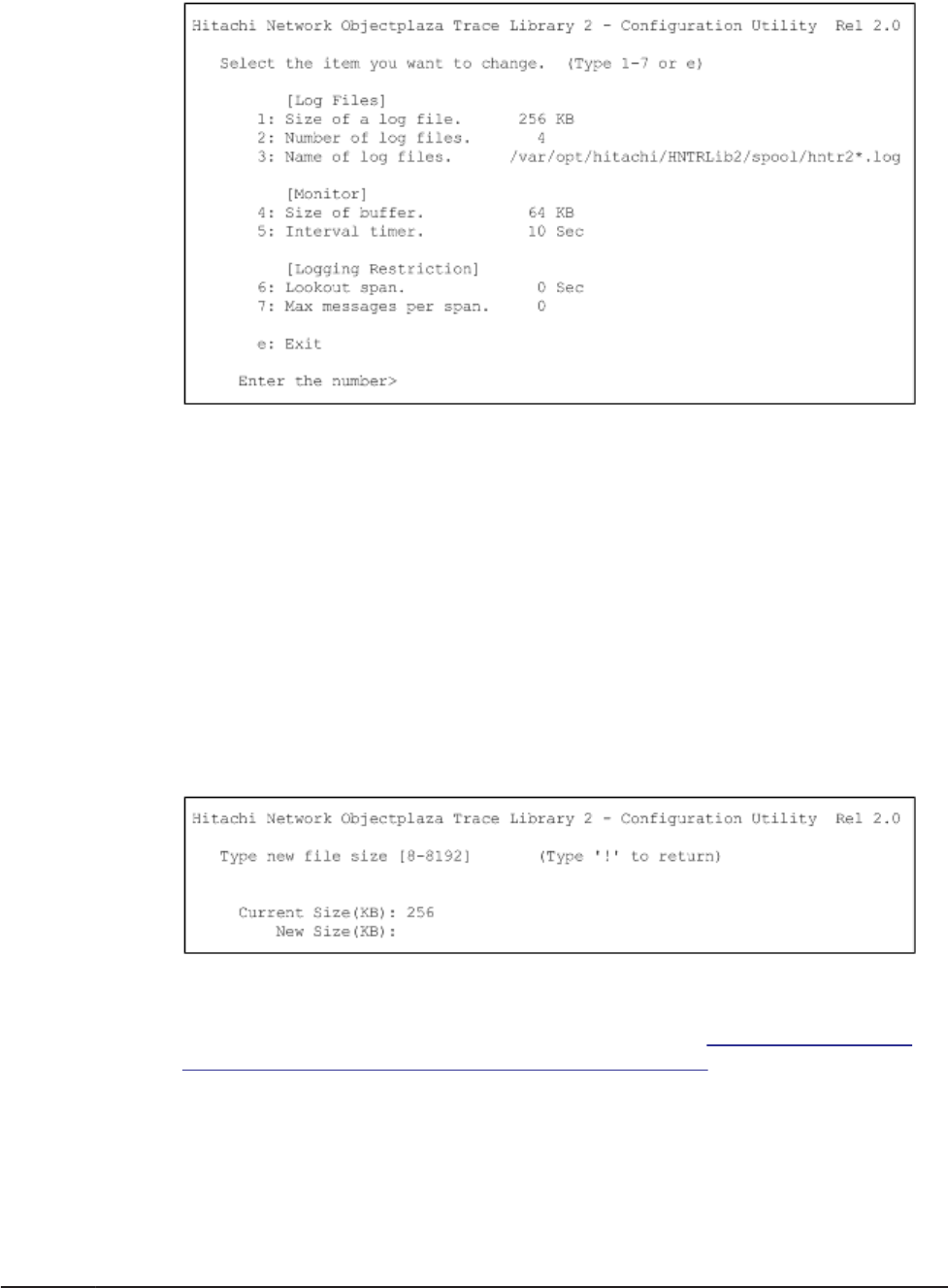

A screen to set the size of the integrated trace file will appear. The
current value is displayed in Current Size (KB).
2. Enter the desired size in New Size (KB).
The specifiable range is between 8 KB and 8192 KB, with a default of 256.
Set this to a value larger than that set in step 2 of
Changing the Buffer
Size Per Monitoring Interval Duration on page 3-90. We recommend
setting a value of 4096 when collecting an integrated trace.
If you do not want to change the integrated trace file size, leave New
Size (KB) blank, type !, and then press the Enter key to return to the
Hitachi Network Objectplaza Trace Library setup menu.
