3. Press the Enter key.
The new setting is applied and the Hitachi Network Objectplaza Trace
Library setup menu appears again.
Changing the Number of Integrated Trace Files
The following procedure shows how to change the number of integrated trace
files.
To change the number of integrated trace files:
1. In the Hitachi Network Objectplaza Trace Library setup menu, type 2 and
then press the Enter key.

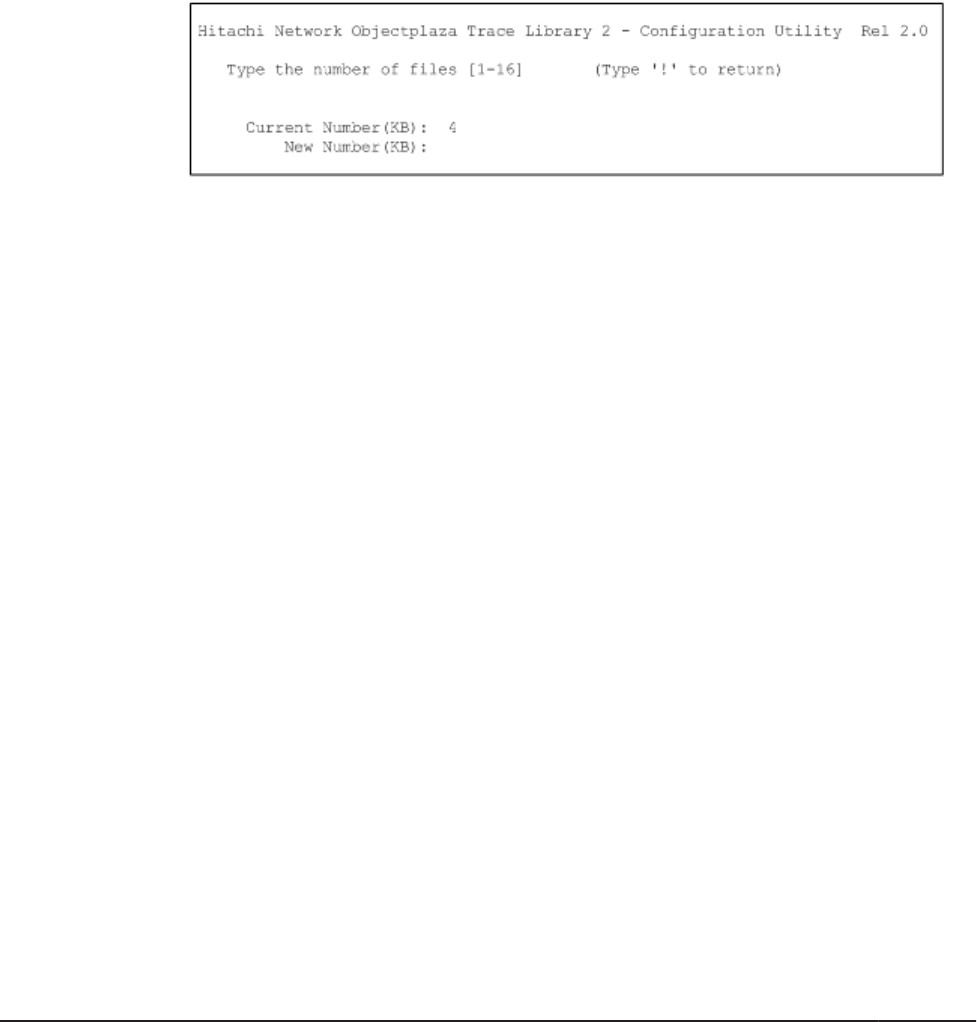

A screen to set the number of integrated trace files will appear. The
current value is displayed in Current Number (KB).
2. Enter the desired number in New Number (KB).
You can specify a value from 1 to 16. The default is 4. The value set here
becomes the maximum of n in /var/opt/hitachi/HNTRLib2/spool/
hntr2n.log. The recommended value for integrated trace collection is 8.
If you do not want to change the number of integrated trace files, leave
New Number (KB) blank, type !, and then press the Enter key to
return to the Hitachi Network Objectplaza Trace Library setup menu.
3. Press the Enter key.
The new setting is applied and the Hitachi Network Objectplaza Trace
Library setup menu appears again.
Changing the Buffer Size Per Monitoring Interval Duration
The following procedure shows how to change the buffer size per monitoring
interval.
To change the buffer size per monitoring interval:
1. In the Hitachi Network Objectplaza Trace Library setup menu, type 4 and
then press the Enter key.
A screen to set the buffer size will appear. The current value is displayed
in Current Size (KB).
