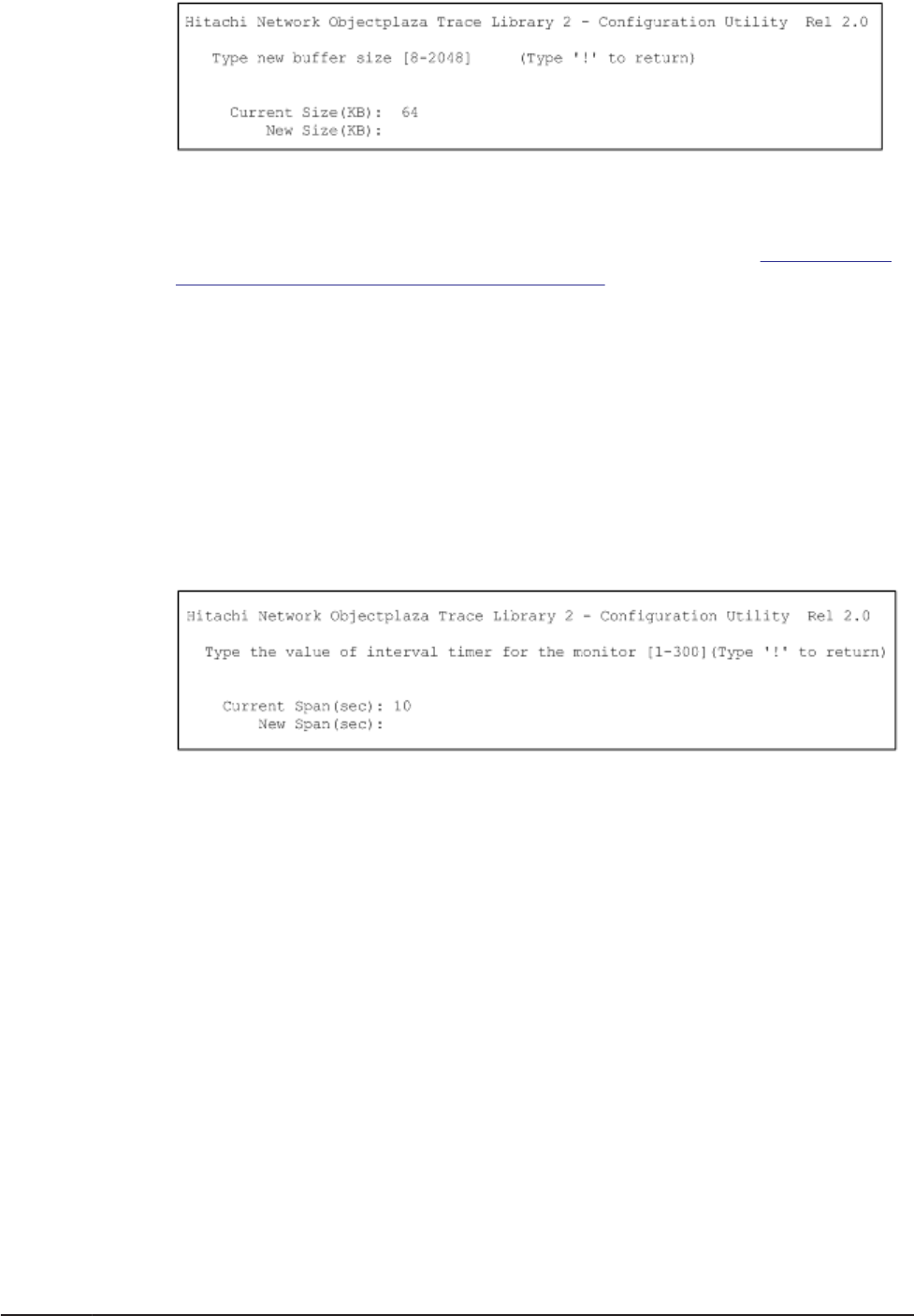

2. Enter the desired size in New Size (KB).
Set a new buffer size to fit the monitoring interval set in 5: Interval
Timer. The specifiable range is between 8 KB and 2048 KB, with a default
of 64. Set this to a value smaller than that set in step 2 of
Changing the
Size of Integrated Trace Files on page 3-89. We recommend setting a
value of 256 when collecting an integrated trace.
To leave the buffer size as is, leave New Size (KB) blank, type ! and
press the Enter key. You will be returned to the Hitachi Network
Objectplaza Trace Library setup menu.
3. Press the Enter key.
The new setting is applied and the Hitachi Network Objectplaza Trace
Library setup menu appears again.
4. In the Hitachi Network Objectplaza Trace Library setup menu, type 5 and
then press the Enter key.
A screen to set the monitoring interval will appear. The current value is
displayed in Current Span (sec).
5. Enter the desired interval in New Span (sec).
The specifiable range is between 1 second and 300 seconds, with a
default of 10. We recommend setting a value of 5 when collecting an
integrated trace.
To leave the monitoring interval as is, leave New Span (sec) blank,
enter ! and press the Enter key. You will be returned to the Hitachi
Network Objectplaza Trace Library setup menu.
6. Press the Enter key.
The new setting is applied and the Hitachi Network Objectplaza Trace
Library setup menu appears again.
Adjusting the Number of Messages to be Output Per Monitoring
Interval
This section explains how to adjust the number of messages output to fit a
particular monitoring interval.
