To display path information, execute the dlnkmgr command's view operation
with the -path parameter specified. The following example shows how to
execute the command:
# /usr/DynamicLinkManager/bin/dlnkmgr view -path

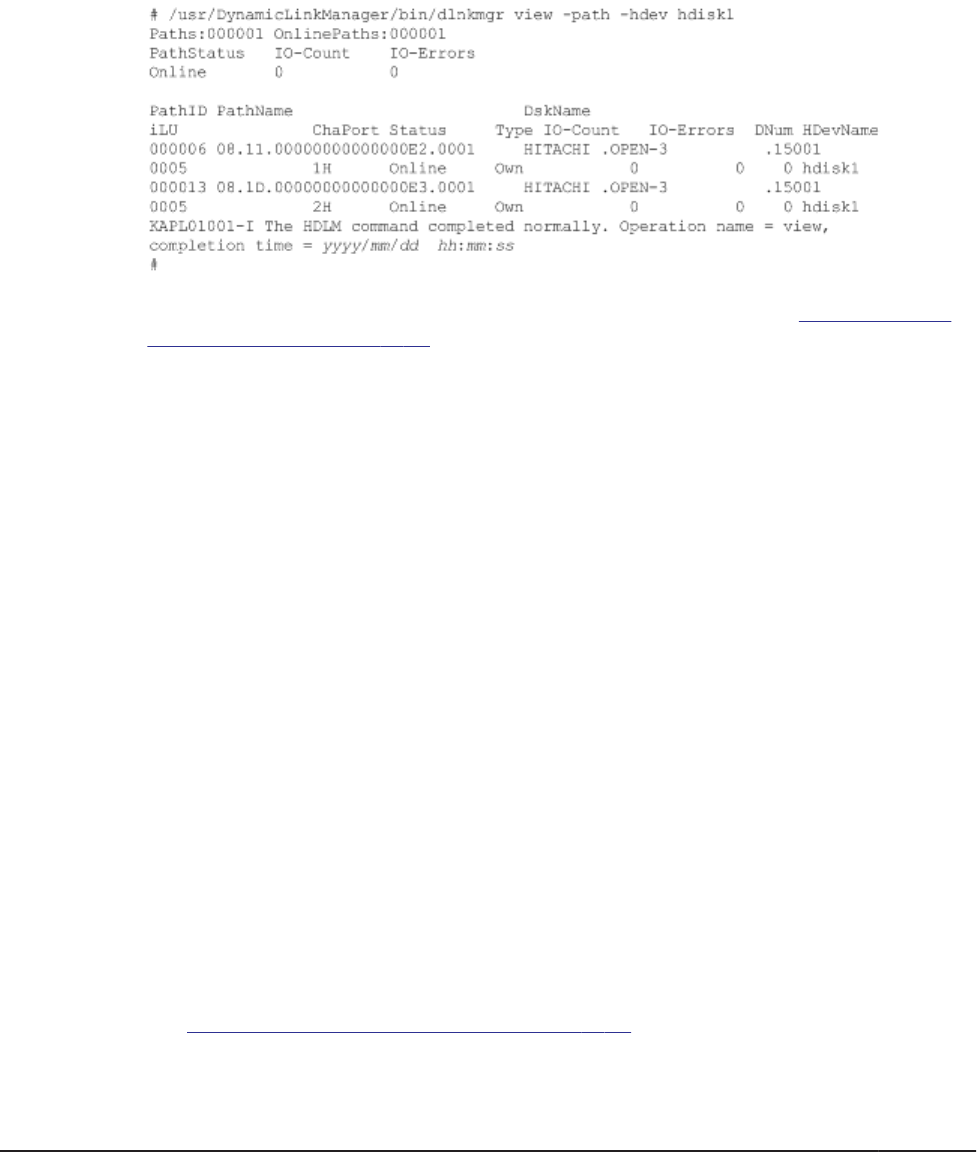

To display information only for the paths accessing the specified host device,
execute the dlnkmgr command's view operation with the -path and -hdev
parameters specified. The following example shows how to execute the
command:
For details on the displayed items and their descriptions, see view (Displays
Information) on page 6-34.
Changing the Status of Paths
This section explains how to change path statuses.
Changing the Status of Paths to Online
To change the status of paths to online:
1. Check the current status of the paths.
To change the status of the path for each HBA port, CHA port, or path to
online, first check the path name or AutoPATH_ID.
The following example shows how to execute the command:
# /usr/DynamicLinkManager/bin/dlnkmgr view -path
To change the path status to online by specifying a host device name,
first check the host device name for the path and the OS management
path ID.
The following example shows how to execute the command:
# /usr/DynamicLinkManager/bin/dlnkmgr view -lu
2. To change the status of paths to online, execute the dlnkmgr command's
online operation.
The paths to be placed online can be specified by using an HBA port, CHA
port, single path, or host device. For details on how to specify paths, see
online (Places Paths Online) on page 6-11.
