6. Execute the following command:
# diag
Note
For details on the operations after executing the diag command, see
the AIX documentation. Steps 7 to 14 below provide an example of
the execution procedure for AIX V6.1 (Technology Level 02).
7. From the displayed menu, choose Task Selection.
The Task Selection List window appears.
8. Choose Hot Plug Task.
The Hot Plug Task window appears.
9. Choose PCI Hot Plug Manager.
The PCI Hot Plug Manager window appears.

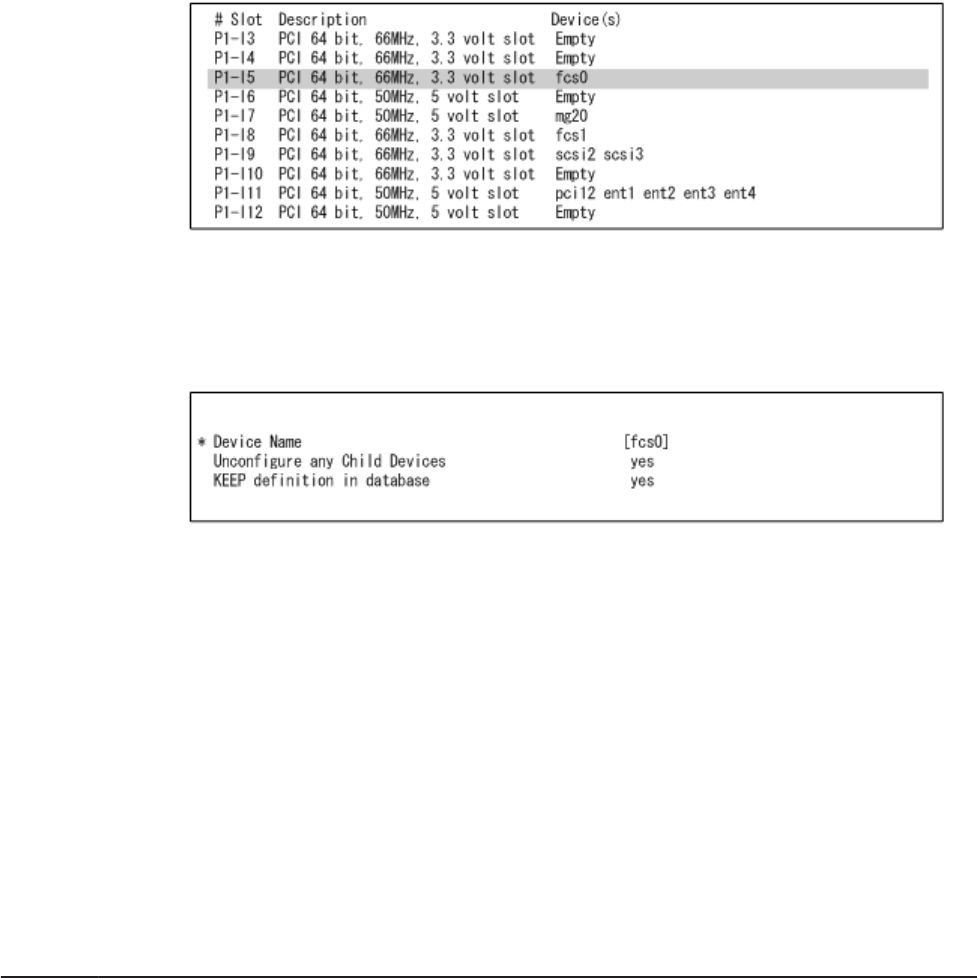

10. Select List PCI Hot Plug Slots to check the PCI slot to be replaced:
The shading indicates the PCI slot where the HBA is to be replaced.
11. Go back to the PCI Hot Plug Manager window, select Unconfigure a
Device, and enter in Device name the device that is to be replaced.
For the Unconfigure any Child Devices and KEEP definition in
database items, select yes.
12. Go back to the PCI Hot Plug Manager window, select Replace/Remove a
PCI Hot Plug Adapter.
Select the HBA to be replaced.
13. Select Replace in the input field.
14. When the following message is displayed, replace the HBA:
HDLM Operation
4-25
Hitachi Dynamic Link Manager (for AIX) User Guide
