When you use this parameter, the items used for the sorting keys
(DskName, AutoPATH_ID, and the item specified by this parameter)
are displayed by default. Therefore, it is not necessary to specify
these items for the -item parameter.
-t
Omits the title for each information item.
Example

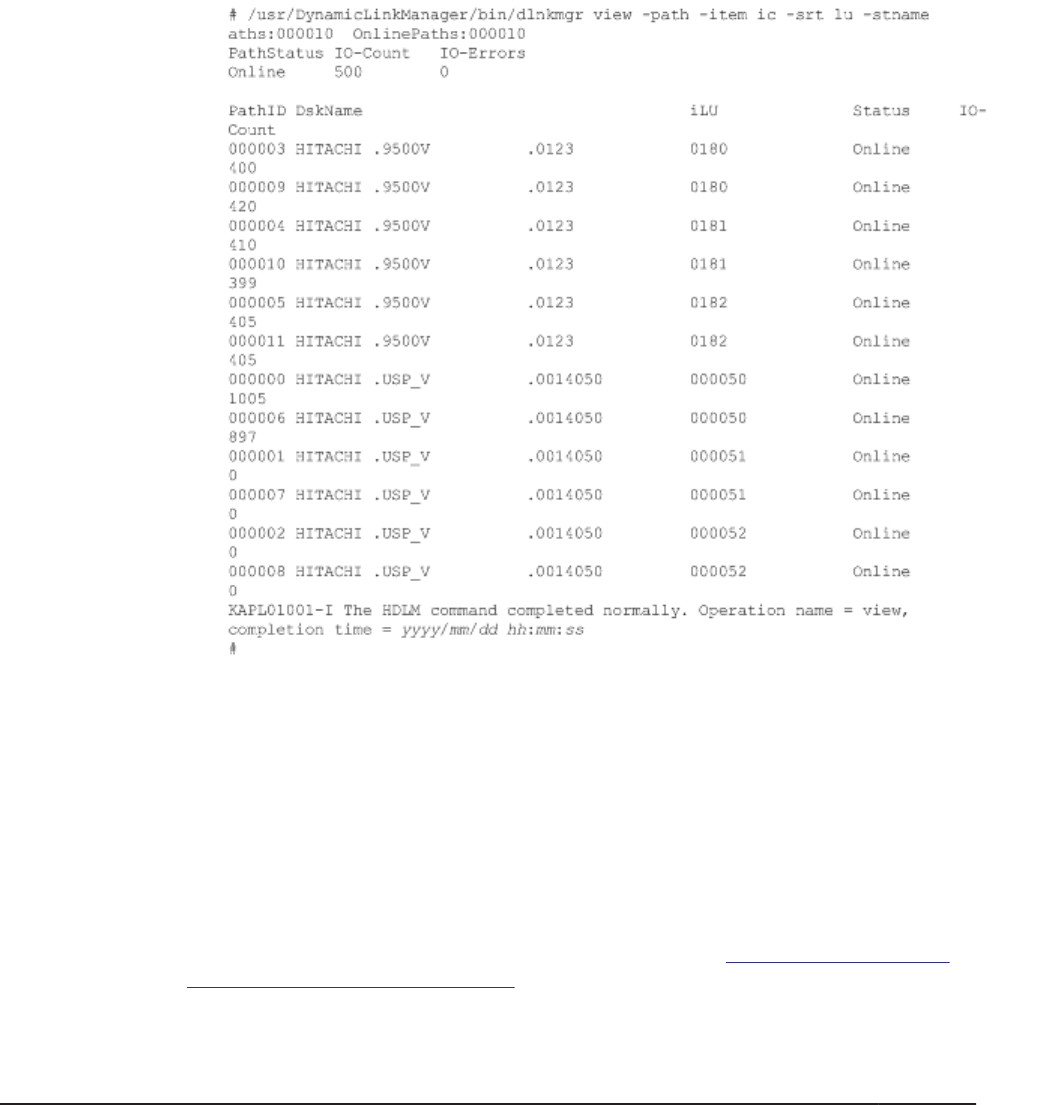

In the following example, IO-Count is selected as the display item
and the path information is sorted in ascending order by LUs.
To display a summary of path information
-path -c
If the -c parameter is specified at the same time as the -path parameter,
only PathID, DskName, iLU, CP, Status, and Type are displayed for the
path information. The displayed contents are also shortened, so that each
path information item is displayed on a single line.
The items that are displayed are PathID, DskName, iLU, CP, Status, and
Type.
For details on what is displayed for each item, see
Table 6-13 Displayed
Path Information on page 6-50.
