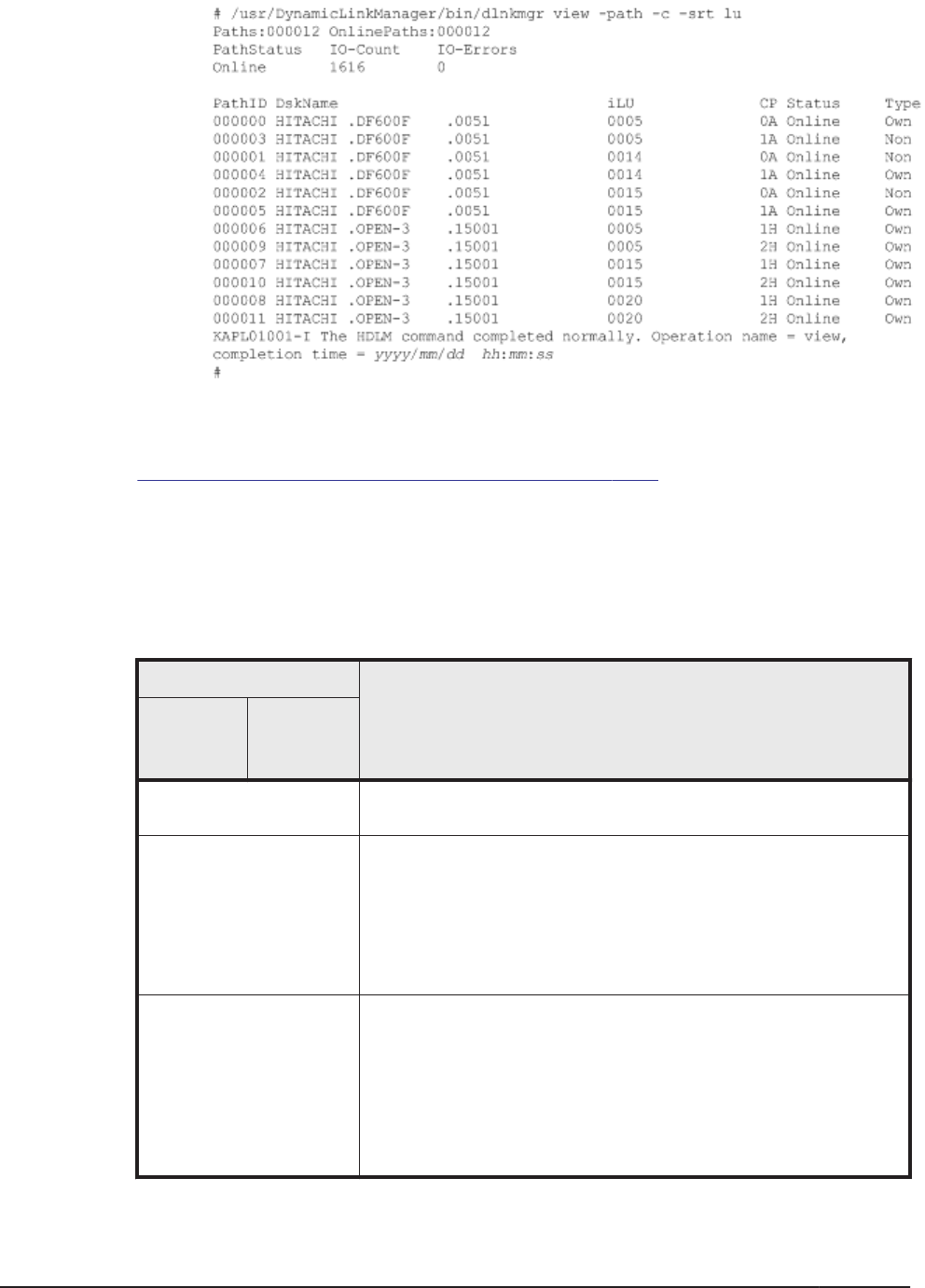

Displayed path information
Table 6-13 Displayed Path Information on page 6-50 describes the displayed
path information. The following explains the table headings:
• No summary displayed: The user specifies only the -path parameter or
the-path -item parameter.
• Summary displayed: The user specifies the -path -c parameter.
Table 6-13 Displayed Path Information
Displayed Item
Description
No
summary
displayed
Summary
displayed
Paths
Total number of displayed paths, indicated by a decimal (i.e.,
base 10) number.
OnlinePaths
Number of online paths from within the displayed paths,
indicated by a decimal number. When the value of Paths
equals the value of OnlinePaths, then all the paths are online.
If the value of OnlinePaths is less than that of Paths, some
paths are offline. In this case, you should check the offline
paths and take appropriate action for any paths that have an
error status.
PathStatus
Status of the displayed paths. The displayed status indicates
the following:
• Online: All paths are available.
• Reduced: Some paths are not available.
Reduced means that some paths might have an error status, in
which case you should check the status of individual paths and
resolve the problem for any paths that have an error status.
