Displayed LU information

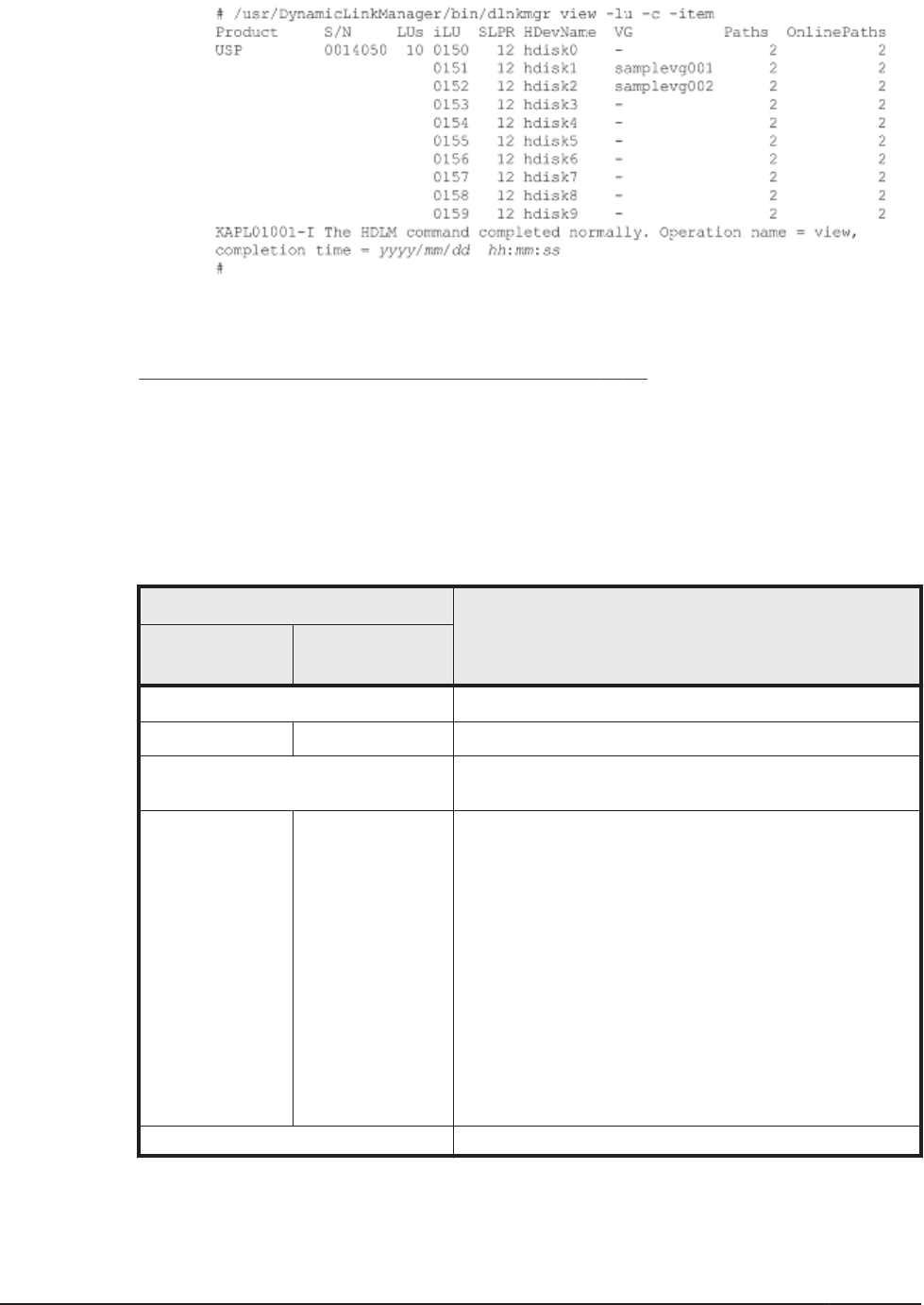

Table 6-18 Displayed LU Information on page 6-64 describes the displayed
LU information. The following explains the table headings:
• No summary displayed: The user specifies the -lu parameter or -lu -
item parameter.
• Summary displayed: The user specifies the -lu -c parameter or -lu -c -
item parameter.
Table 6-18 Displayed LU Information
Displayed item
Description
No summary
displayed
Summary
displayed
Product
Model ID of the storage system
Serial number S/N
Serial number of the storage system
LUs
Total number of LUs managed by HDLM among the
LUs in the storage system
Dynamic I/O
Path Control
-
The setting information about the dynamic I/O path
control function is displayed for each storage
system.
on: The dynamic I/O path control function is
enabled.
off: The dynamic I/O path control function is
disabled.
-: The dynamic I/O path control function is not
supported.
If an LU whose settings differ from the settings
based on the system storage unit is included, an
asterisk (*) is added after the on or off being
displayed.
iLU
LU number in the storage system
6-64
Command Reference
Hitachi Dynamic Link Manager (for AIX) User Guide
