1-78

Introduction

Redundancy Groups

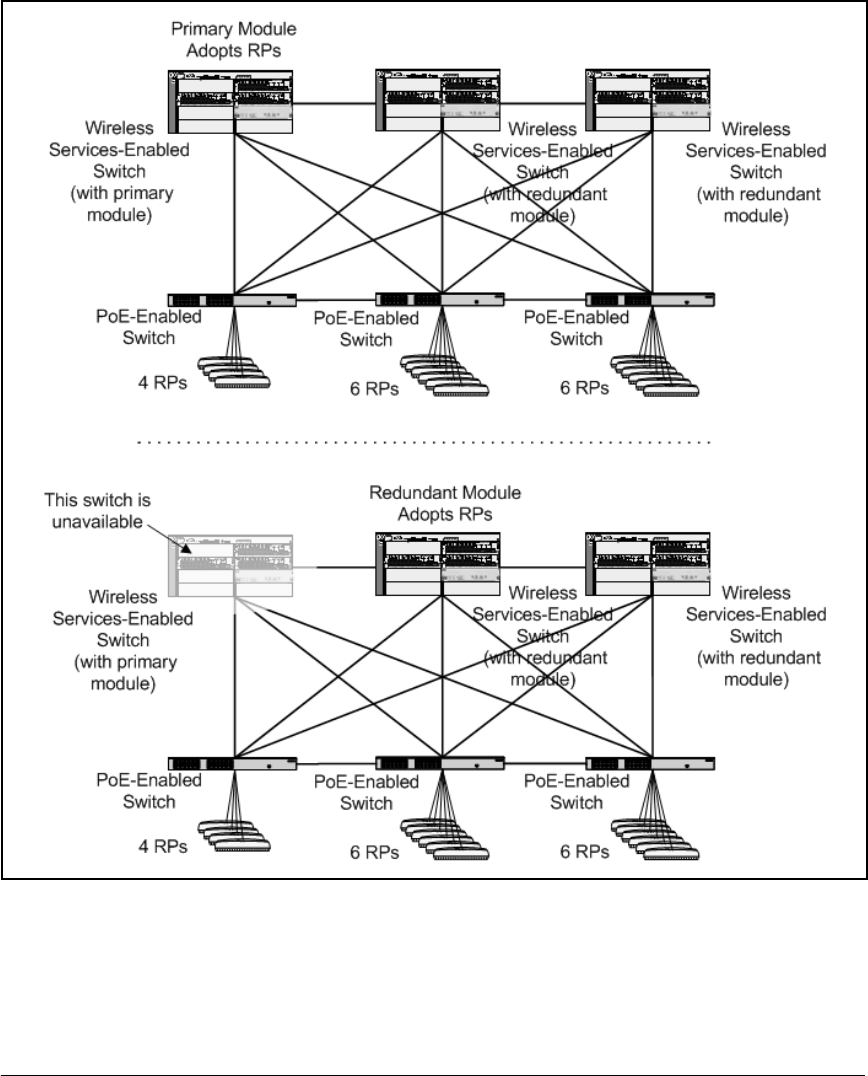

Figure 1-25. Redundancy Module Adopting RPs

To provide consistent service, the standby member continues to support

the RPs even after the active member comes back up.
