2-11

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

Logging in to the Web Browser Interface

Whichever way you attempt to access the Web browser interface, you are

prompted to enter a username and password. (See Figure 2-2.)

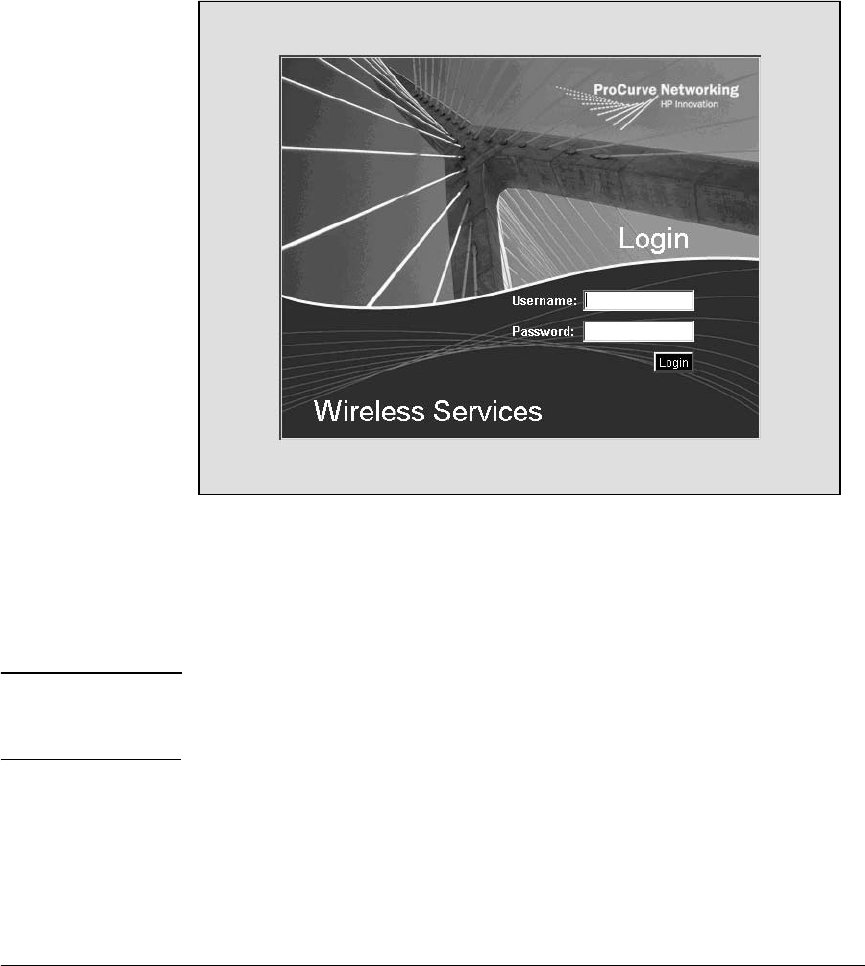

Figure 2-2. Logging In to the Module’s Web Browser Interface

In the Username field, enter manager, and in the Password field, enter the

default password procurve. (The Wireless Edge Services xl Module also

supports the operator user. For more information, see “Default SNMP v3

Users—Manager and Operator” on page 2-26.)

Note To protect your network, ProCurve Networking strongly recommends that

you immediately change the password for the manager and operator users.

(See “Changing Passwords for Default Users Through SNMP v3” on page 2-36.)
