2-12

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

Overview of the Web Browser Interface

The Web browser interface includes a navigation bar on the left. (See

Figure 2-3.) Using this navigation bar, you can access:

■ Information screens that help you manage and troubleshoot your wireless

services

■ Configuration screens that allow you to tailor wireless services for your

particular environment

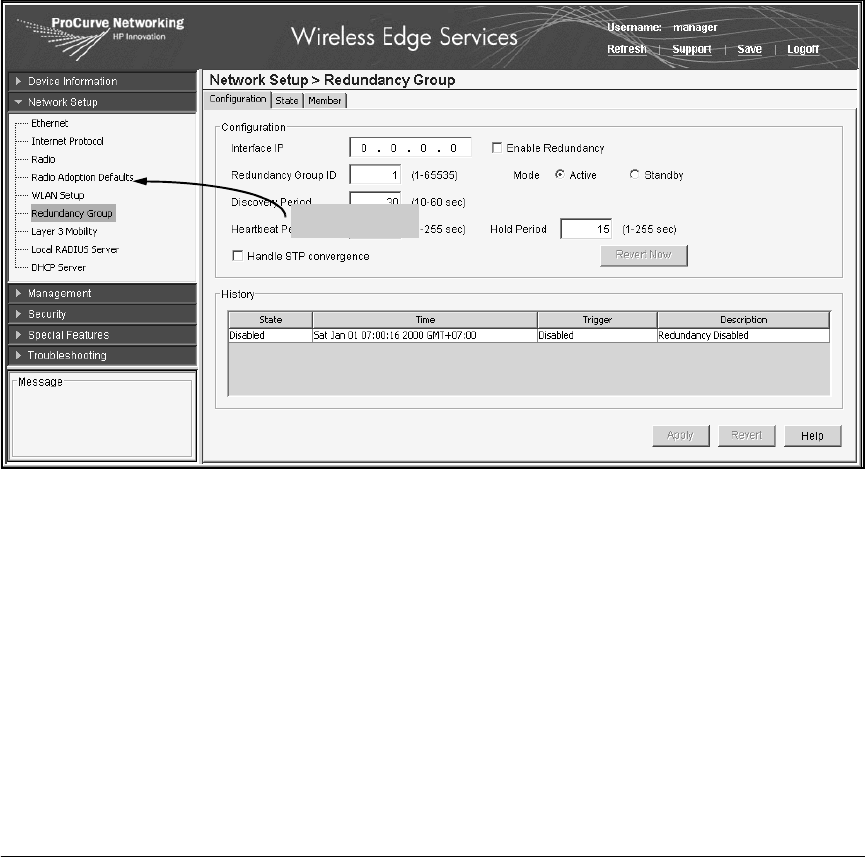

Figure 2-3. Example of a Configuration Screen

Applying or Saving Changes

When you use the Web browser interface to configure the Wireless Edge

Services xl Module, these changes may affect two configuration files, depend-

ing on whether you apply or save changes:

■ startup-config—When you save changes, these changes become part of

the startup-config file, which is stored in non-volatile RAM (NVRAM) on

the module’s internal flash. When the Wireless Edge Services xl Module

is rebooted, all of the configurations that are contained in the startup-

config file are retained. During the reboot process, the module initializes

the designated boot image software and then loads the startup-config.

Navigation bar
