Configuring the ProCurve Wireless Edge Services xl Module
Management Interfaces
4. If you are also filtering for a second criterion, on the second line, use the
drop-down menu to select the Boolean operator for linking the two
criteria:
• AND—to list items that meet the criteria on both lines
• OR—to list items that meet the criteria on either line
The OR operator is not an “exclusive OR” operator; it will list items
that meet the criteria on either or both lines.
5. If you are also filtering for a second criterion, on the remainder of the
second line complete steps 2 and 3 for this criterion.
For example, in the Security > GRE Tunnels screen you could filter for
tunnels for which the Admin Status is Up and for which the Operation Status
is Down. You could also search for tunnels having one IP address or
another.

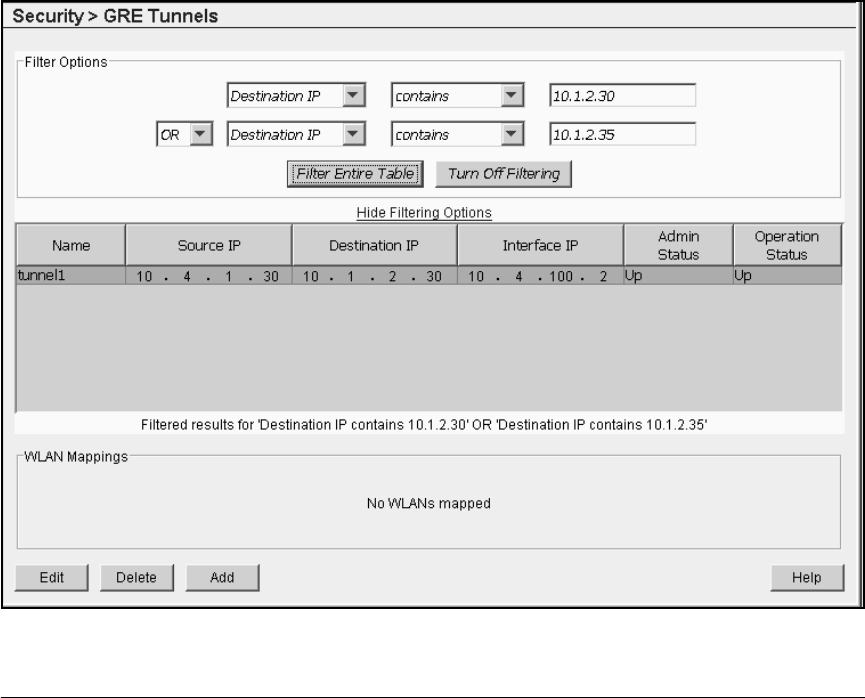

Figure 2-9. Filtering Options GRE Tunnels Example
