2-30

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

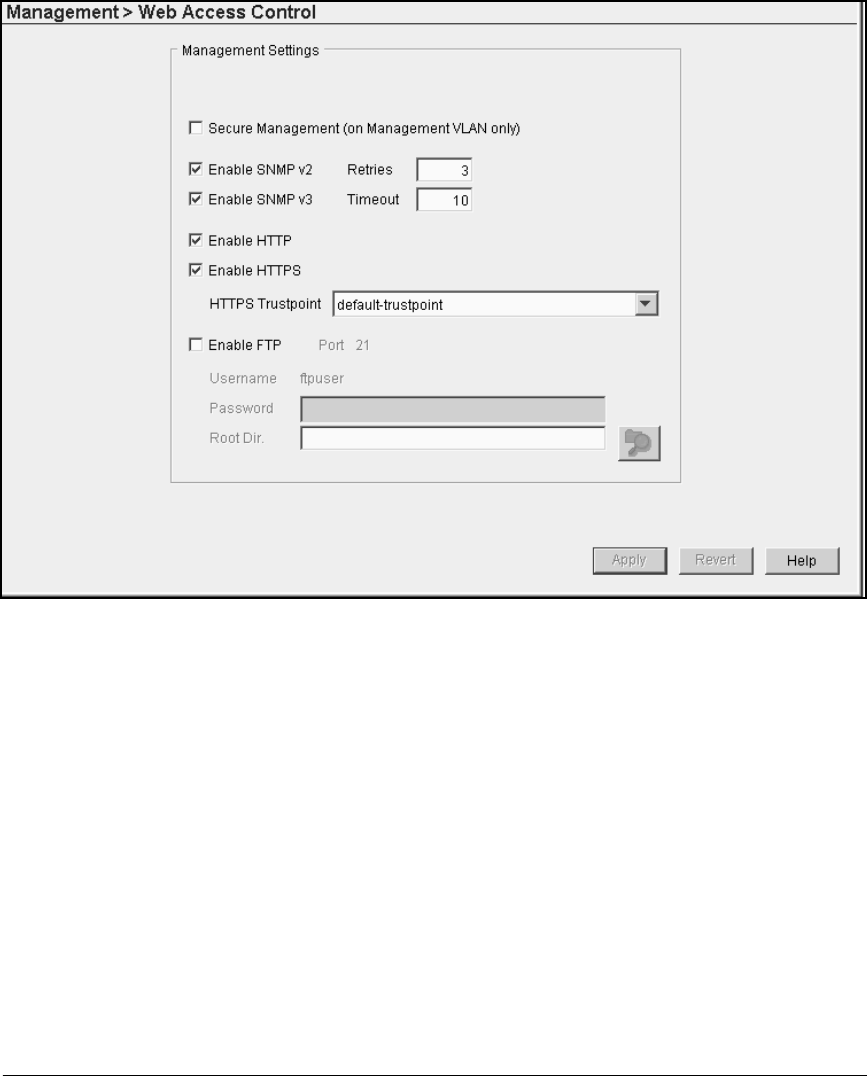

Figure 2-12. Management > Web Access Control Screen

2. Uncheck the Enable SNMP v2 box to disable SNMP v2 access to the

Wireless Edge Services xl Module. Check the box to re-enable such

access.

3. Uncheck the Enable SNMP v3 box to disable SNMP v3 access to the

Wireless Edge Services xl Module.

A screen is displayed, warning you that disabling SNMP v3 locks you out

of the Web browser interface.
