2-31

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

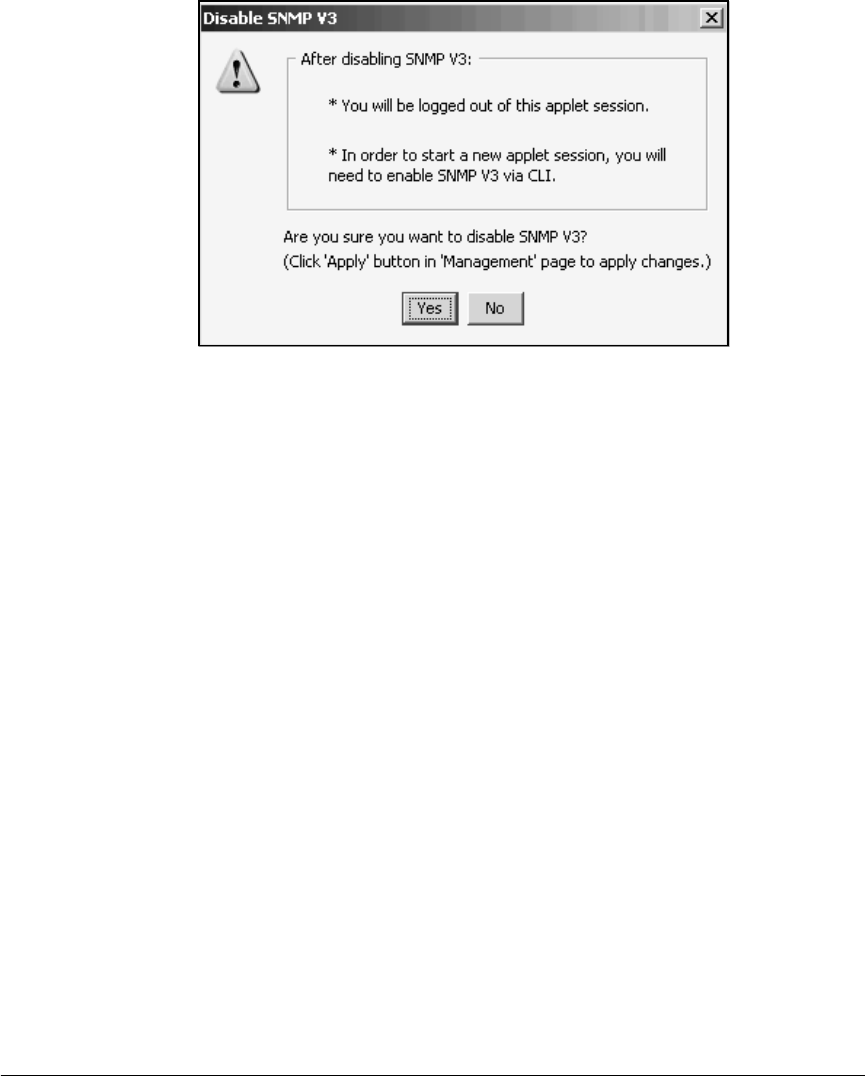

Figure 2-13. Disable SNMP V3 Warning

If you are sure that you want to disable SNMP v3 and Web access, click

the Yes button. You have one more chance to change your mind: you must

click the Apply button in the Management > Web Access Control to actually

disable the server.

4. Configure other SNMP options:

a. In the Retries field, enter the number of times that the Wireless Edge

Services xl Module should re-attempt to send an SNMP message that

times out.

The default value is 3.

b. In the Timeout field, specify in seconds how long the module should

wait before timing out an SNMP message.

The default value is 10 seconds.

5. Click the Apply button.

Choosing SNMP versions is only one step to configuring SNMP:

■ See “Configuring Web-Users” on page 2-40 to learn how to create SNMP

v3 users.

■ See “SNMP Traps and Error Reporting” on page 2-108 to learn how to set

up SNMP traps and configure SNMP communities.
