2-37

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

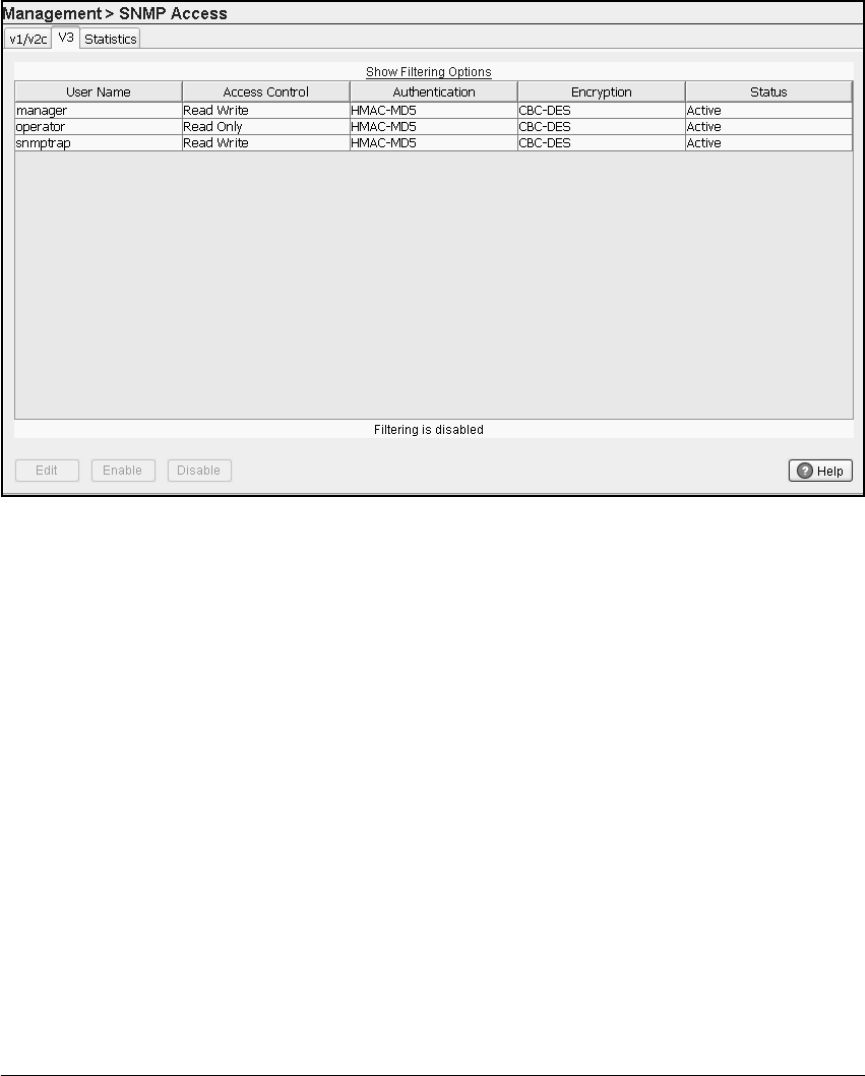

Figure 2-17. Management > SNMP Access > V3 Screen

2. Select the username that you want to modify, and then click the Edit

button. The Edit SnmpV3 screen is displayed.
