2-40

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

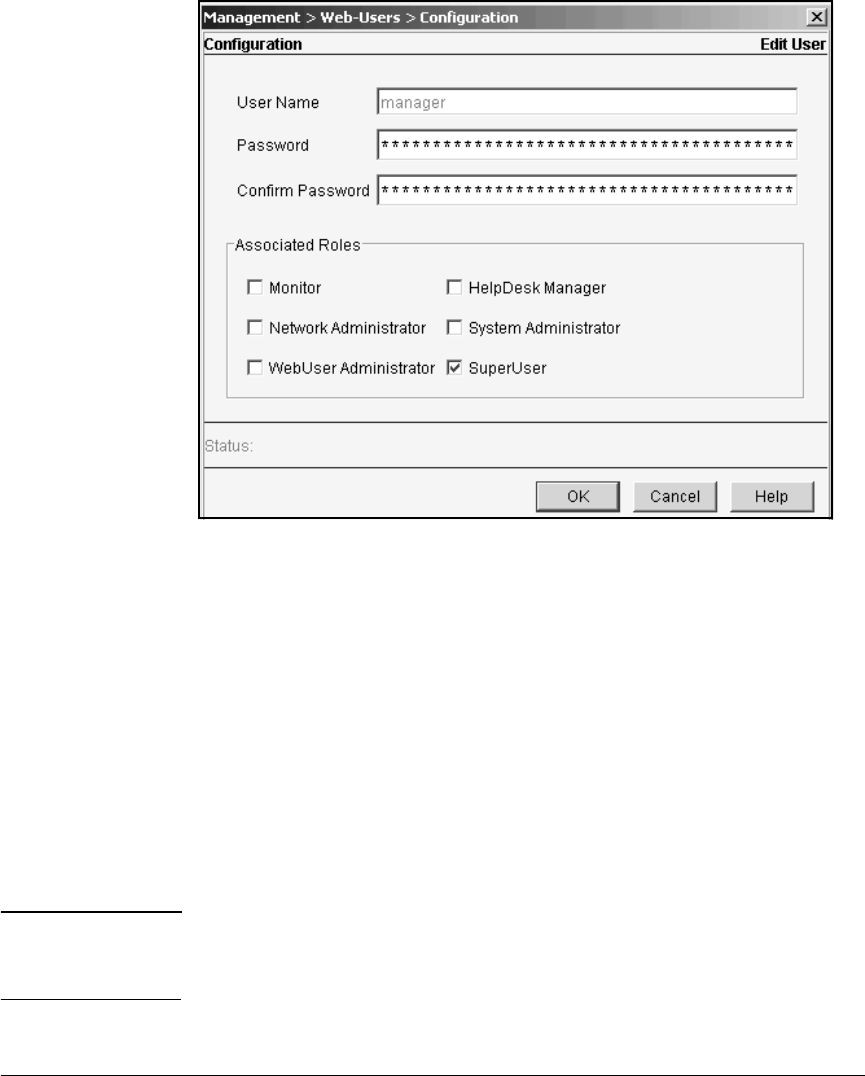

Figure 2-20. Adding a Web-User

4. In the Password and Confirm Password fields, enter a new password

between 8 and 32 characters. The password can include spaces and

special characters.

5. Click the OK button.

6. Click the Save link to copy these changes to the Wireless Edge Services

xl Module’s startup-config.

Configuring Web-Users

By default, the Wireless Edge Services xl Module has two SNMP v3 user

accounts: manager and operator. You can add more users allowed to access

the Wireless Edge Services xl Module’s Web browser interface.

Note Rights to the module CLI are determined by rights to the wireless services-

enabled switch CLI. You must access the module CLI through the switch CLI,

and you are granted the same rights that you had in the switch CLI.
