2-44

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

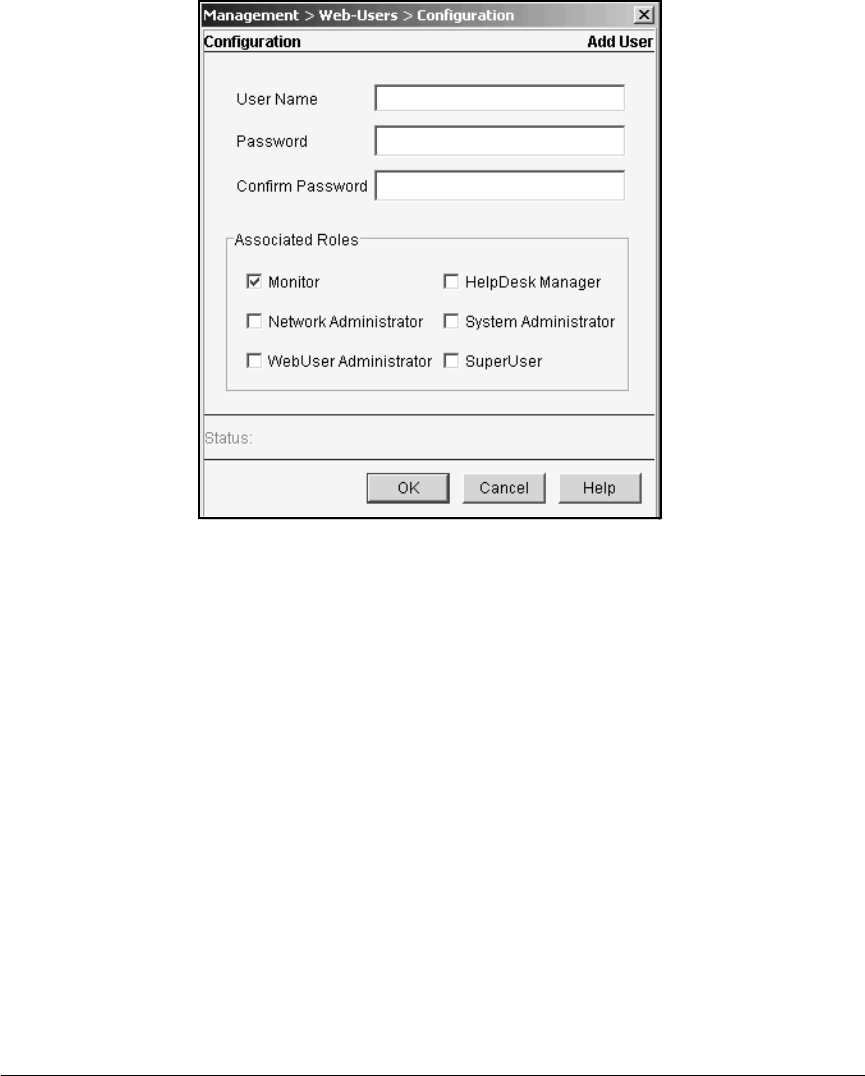

Figure 2-22. Adding a Web-User

3. In the User Name field, enter a string between 1 and 28 characters. You can

include spaces and special characters.

4. In the Password and Confirm Password fields, enter a password between 8

and 32 characters. The password can include spaces and special charac-

ters.

5. Check the boxes in the Associated Roles section to assign one or more

roles to this user.

See the discussion above for more information on the privileges associ-

ated with each role.

6. Click the OK button.

7. Click the Save link to copy these changes to the Wireless Edge Services

xl Module’s startup-config.
