2-47

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

If you do not check the box and authentication services become unavailable,

users will have not access to the Web browser interface at all. (They must

access the module CLI from the wireless services-enabled switch CLI.)

6. Click the Apply button.

7. If you have selected RADIUS for either authentication method, you must

specify the RADIUS server:

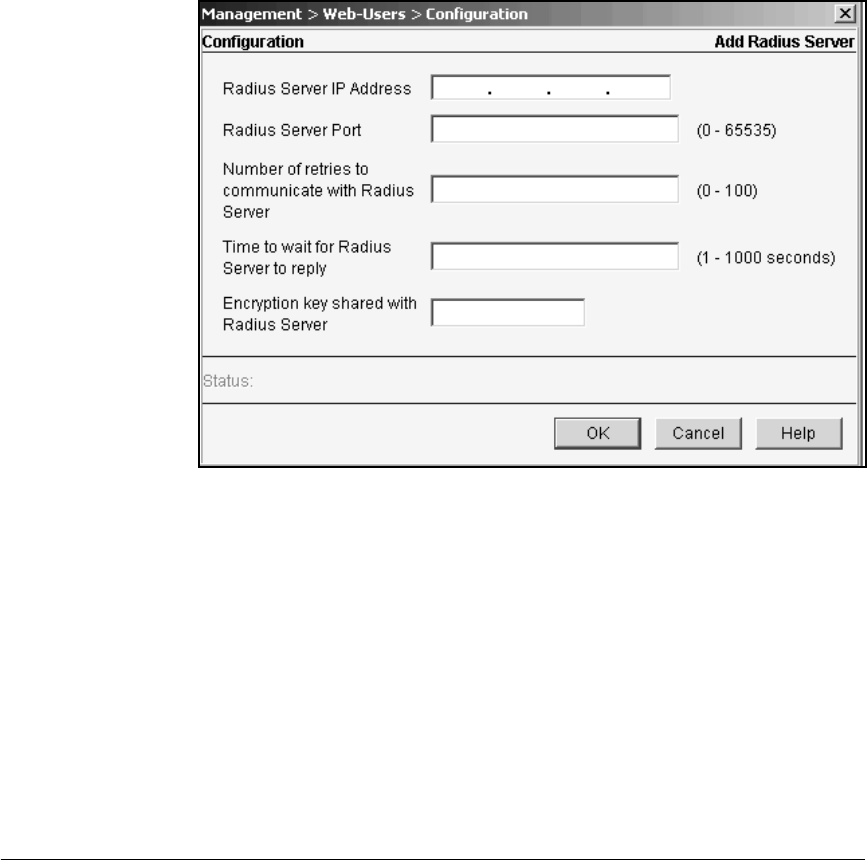

a. Click the Add button. The Add RADIUS Server screen is displayed.

Figure 2-24. Specifying the RADIUS Server To Authenticate Web-Users

b. Specify the server’s IP address in the Radius Server IP Address field.

c. Enter your server’s port in the Radius Server Port field.

Typically, enter 1812. The valid range is from 0 to 65535.

d. In the next field, specify the number of times that the module attempts

to connect the RADIUS server if it does not receive a reply.

For example, if you enter 3, the module attempts to reach the RADIUS

server four times, at the most. It then considers the authentication

service unavailable. The valid range is from 0 to 100.
