2-49

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

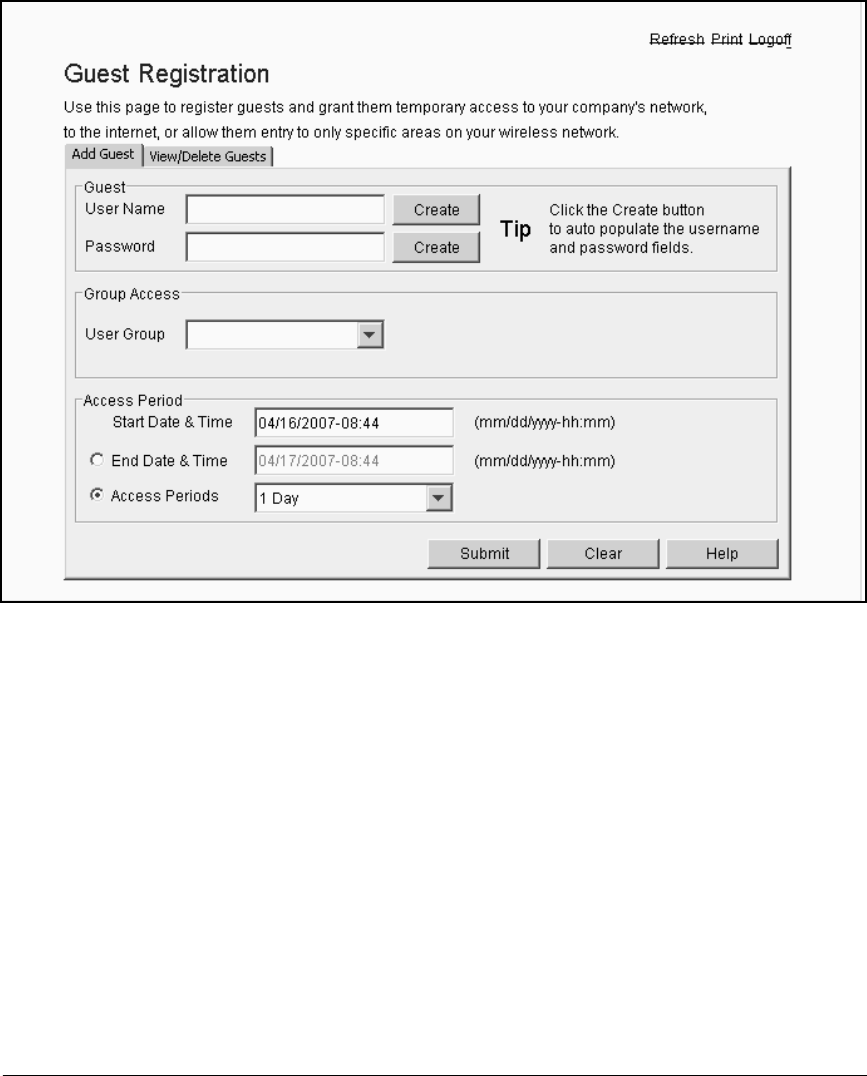

Figure 2-25. Guest Registration Screen

From this screen, the WebUser Administrator can:

■ create guest accounts

■ view all guest accounts

■ delete guest accounts

■ print records for the guest accounts added during the current manage-

ment session

Creating Guest Accounts on the Local RADIUS Database

Follow these steps to add a guest user account:

1. Log in as the WebUser Administrator and access the Guest Registration

screen.
