2-56

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

By default, the Wireless Edge Services xl Module automatically adopts radio

ports (RPs) that it detects on the network. For more security, you can disable

automatic RP adoption and configure the module to adopt only those RPs for

which you manually enter the MAC address.

The module can adopt RPs that are in the Radio Port VLAN (Layer 2 adoption)

or in a different VLAN across a subnetwork boundary (Layer 3 adoption).

Figure 2-30 illustrates when to use each type of adoption. In either case, your

network must meet certain requirements in order for the module to detect

the RP.

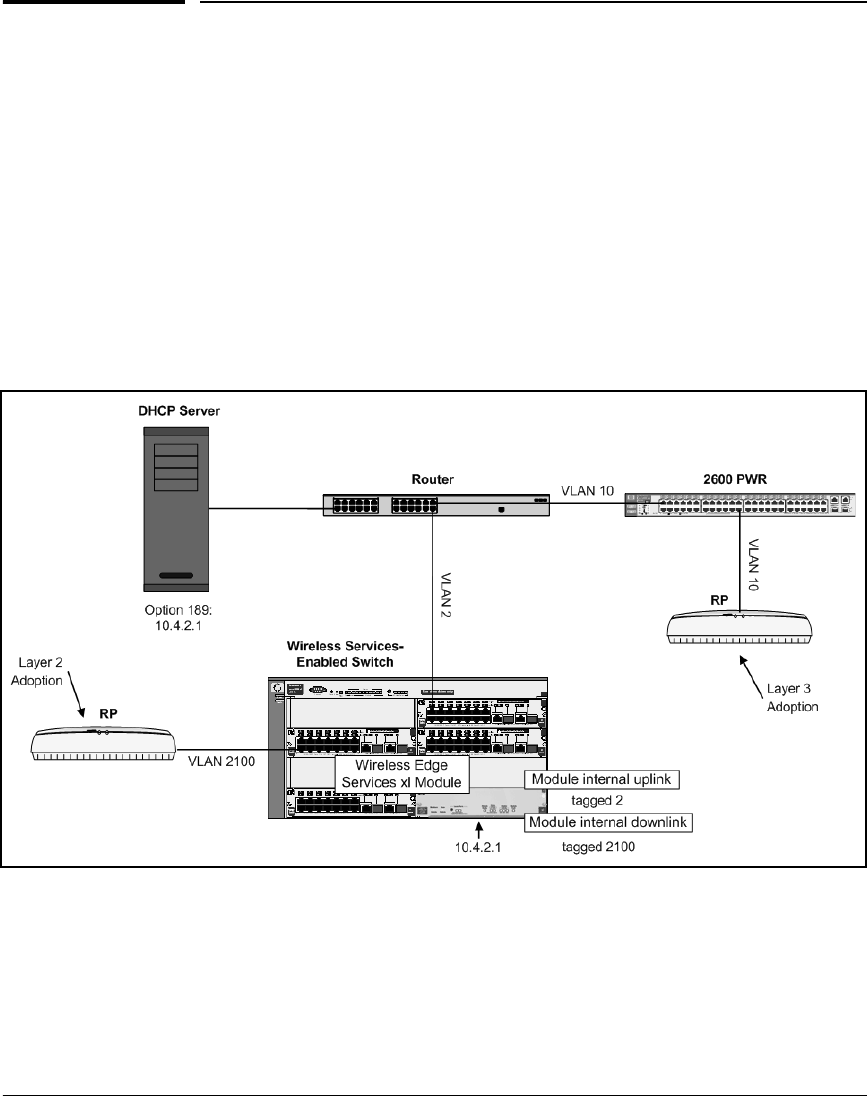

Figure 2-30. Layer 2 Versus Layer 3 Adoption
