2-58
Configuring the ProCurve Wireless Edge Services xl Module
Radio Port Adoption

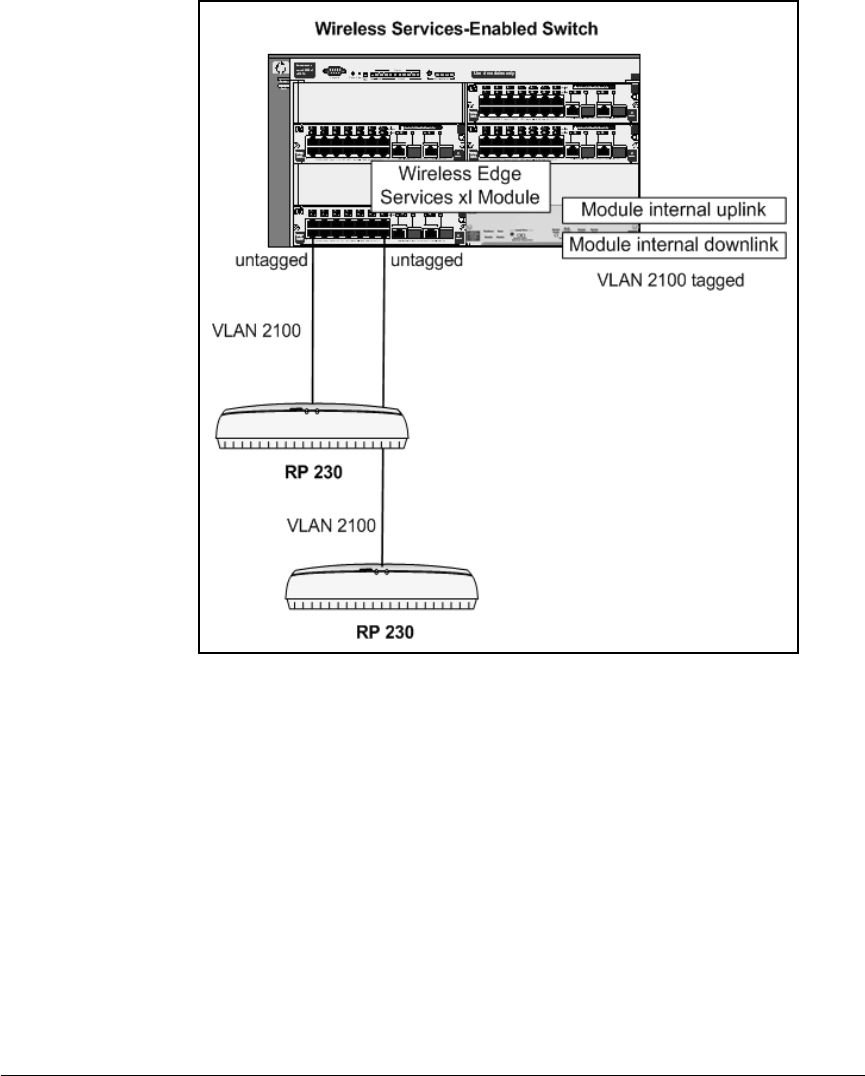

Figure 2-31. RPs Attached to the Wireless Services-Enabled Switch Are
Automatically Assigned to a Radio Port VLAN
Attaching RPs to Infrastructure Switches
If you connect an RP to an infrastructure switch, rather than to the wireless
services-enabled switch, the VLAN memberships are not automatically cre-
ated on the infrastructure switch. Instead, you must manually create the Radio
Port VLAN on the infrastructure switch and then add each RP’s switch port as
an untagged member of that VLAN.
To allow RP traffic to be transmitted between the infrastructure switch and
the wireless services-enabled switch, you must make the ports that connect
the switches members of the Radio Port VLAN, which is VLAN 2100 by default.
Typically, you will make these ports tagged members of the Radio Port VLAN,
because they must also carry traffic for other VLANs such as the management
