2-60

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

Note Because the traffic transmitted between the RPs and the Wireless Edge

Services xl Module is encapsulated, this wireless traffic remains separated

from the other traffic on your company’s network—even if the RP is assigned

to a VLAN used to transmit other types of traffic. To simplify management and

troubleshooting, however, ProCurve Networking recommends that you dedi-

cate a VLAN to RP traffic.

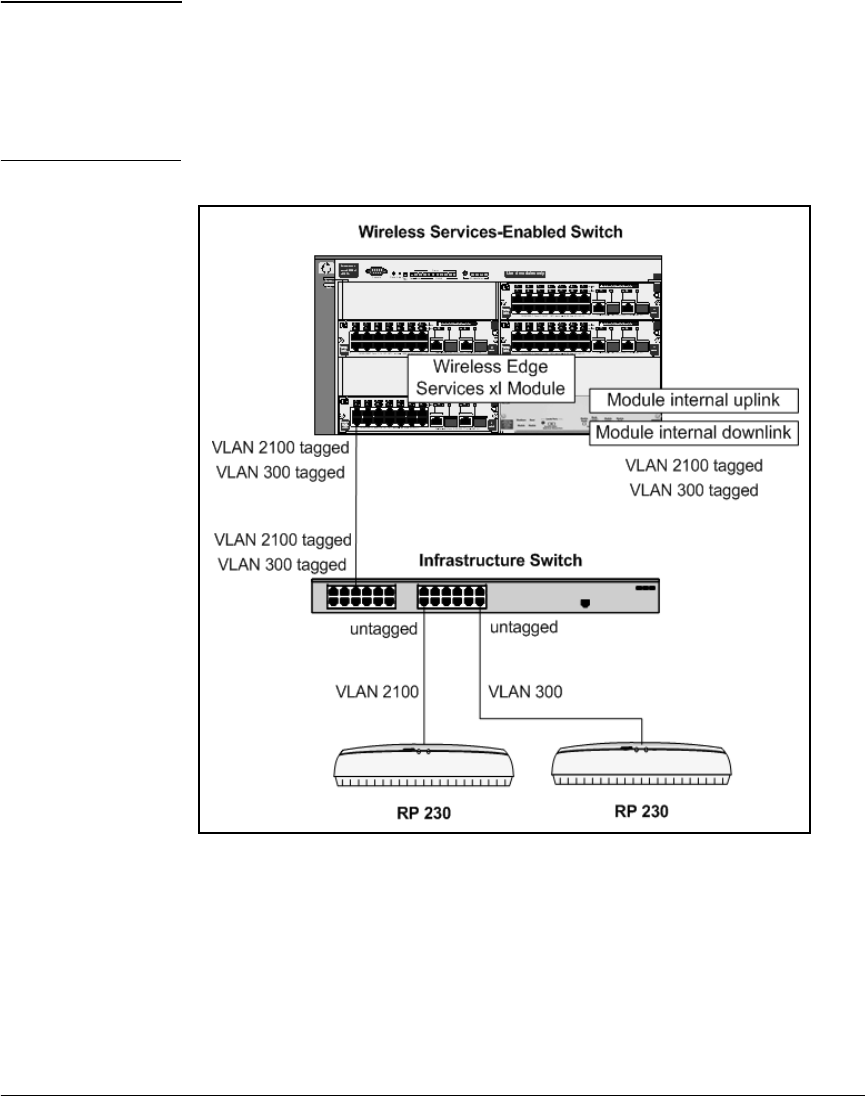

Figure 2-33. Manually Creating Radio Port VLANs

For more information about Radio Port VLANs, see Chapter 1: Introduction.
