Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

7. One of the Wireless Edge Services xl Module’s internal ports must be

tagged for the VLAN on which RPs’ messages arrive—that is, the VLAN

on which the module has the IP address specified on the DNS server.

The module’s uplink port is probably already tagged for this VLAN. The

RP can be adopted on the uplink port.

Caution Do not tag both the uplink and downlink port for the VLAN because wireless

traffic might then bypass ProCurve Identity Driven Manager (IDM) settings.

8. Install the RP in its final location, connecting it to a PoE device.

Verifying Layer 3 Adoption

To verify that an RP has been adopted at Layer 3, select Device Information >

Radio Adoption Statistics.

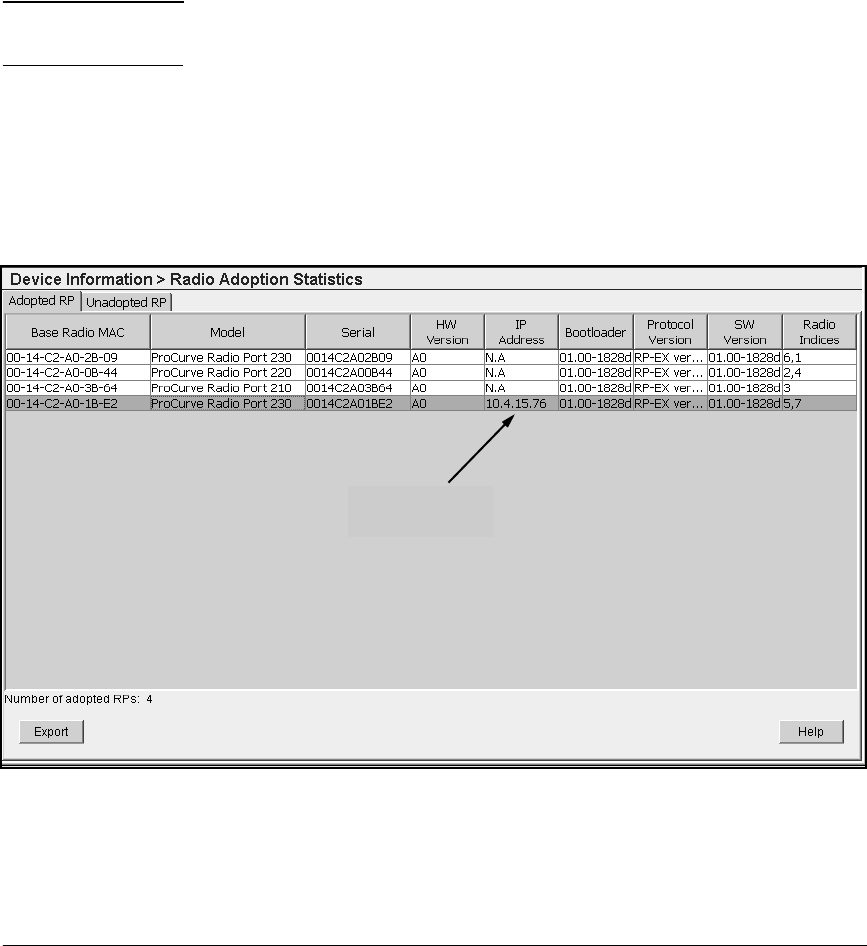

Figure 2-37. Verifying Layer 3 Adoption in the Device Information > Radio Adoption

Statistics

This RP was

adopted at Layer 3
