2-71

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

Configuring Manual Adoption for RPs

To manually adopt RPs, you must edit the global settings for RPs. Complete

these steps:

1. Select Network Setup > Radio and click the Configuration tab.

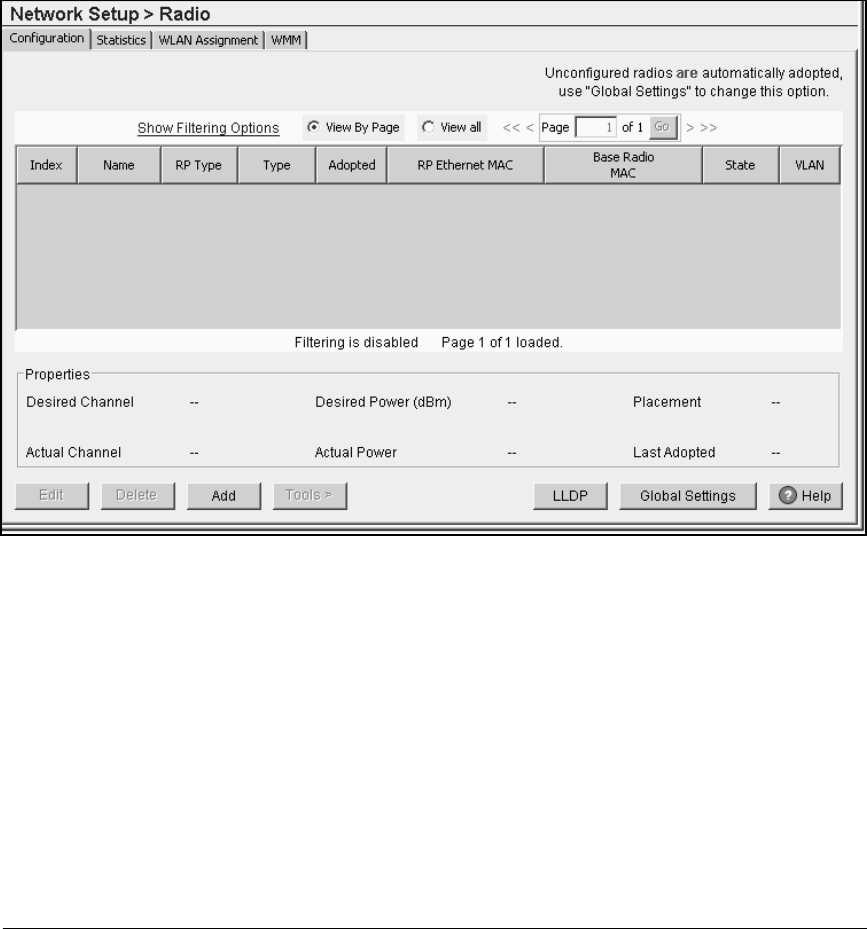

Figure 2-38. Network Setup > Radio Screen

2. Click the Global Settings button. The Global screen is displayed.
