2-73

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

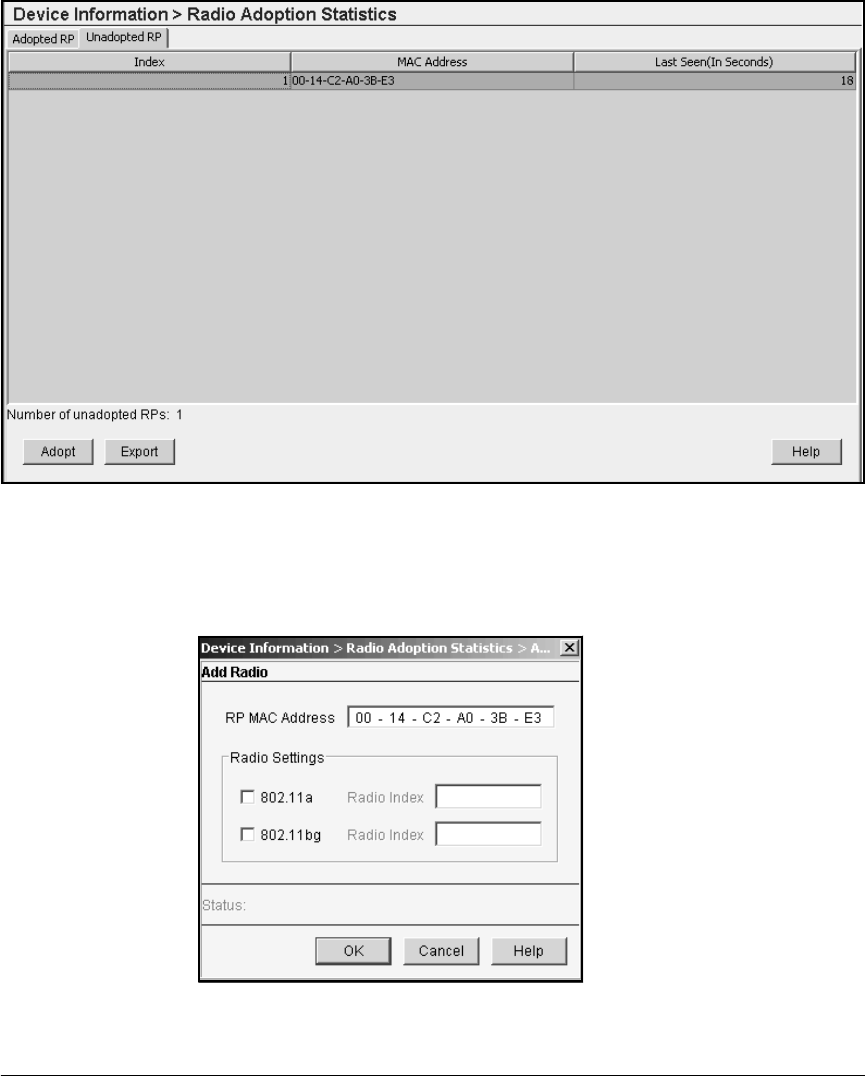

Figure 2-40. Device Information > Radio Adoption Statistics Screen

7. Click the Adopt button at the bottom of the screen. The Add Radio screen

is displayed.

Figure 2-41. Add Radio Screen
