2-78

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

The default username and password on all ProCurve 200 Series RPs are admin

and procurve.

ProCurve Networking suggests that you use pre-adoption to change these

settings, using a Wireless Edge Services xl Module to load new credentials on

your organization’s RPs. You can then move these RPs to their final locations

and be sure that only these RPs can connect to your network.

Configuring 802.1X Authentication for RPs

To configure 802.1X authentication for RPs, complete these steps:

1. Select Network Setup > Radio > Configuration.

2. Click the Global Settings button. The Global screen is displayed.

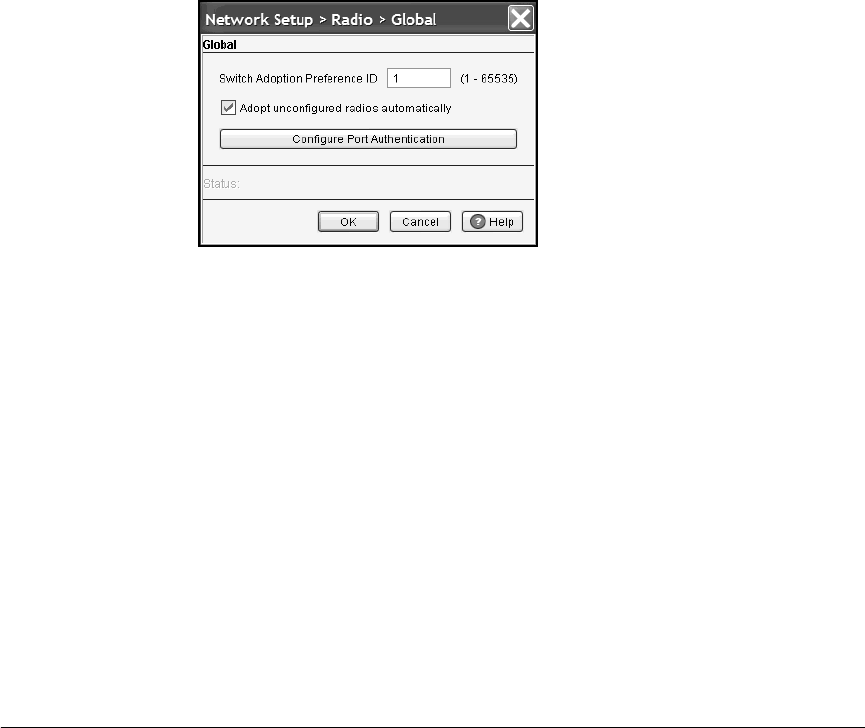

Figure 2-45. Radio Global Settings Screen

3. Click the Configure Port Authentication button. The Configure Port Authenti-

cation screen is displayed.
