2-79

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Adoption

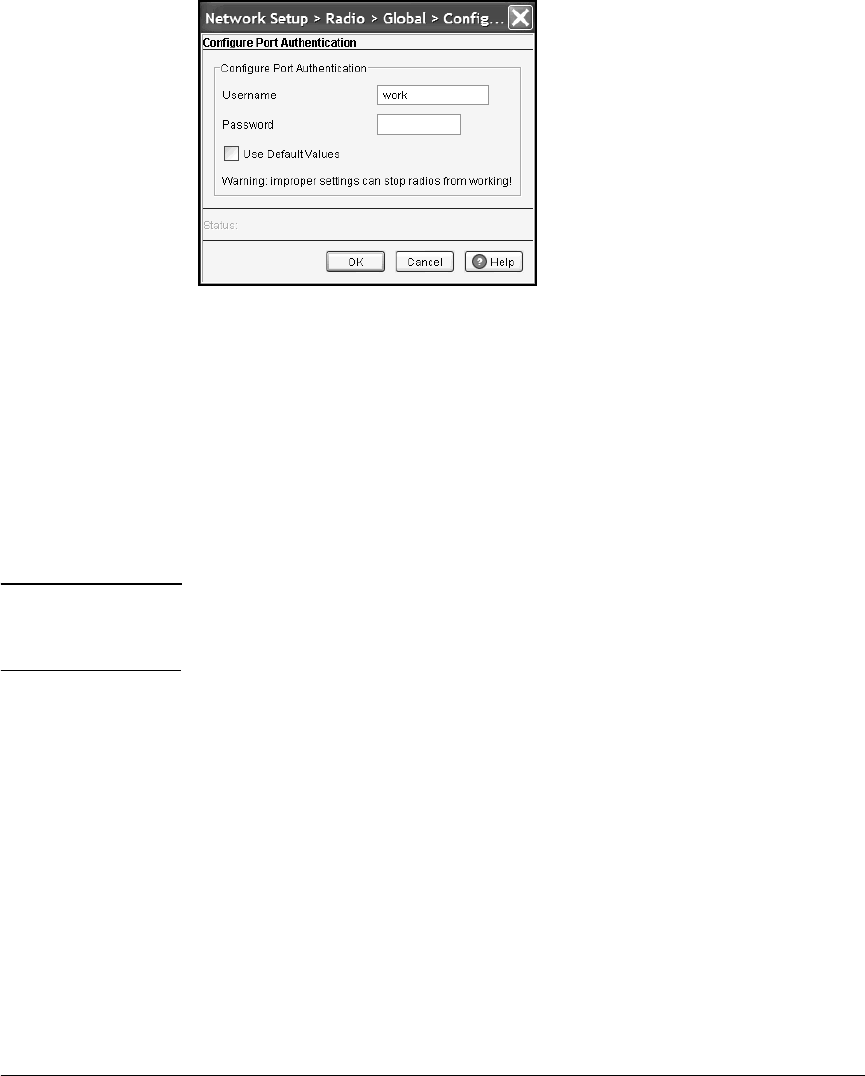

Figure 2-46. Configure Port Authentication Screen

4. Configure a username and password.

• Check the

Use Default Values

box to use the default username and

password:

– username: admin

– password: procurve

•Or, in the Username and Password fields, enter the username and

password that you want to use.

5. Click the OK button, and then click the OK button on the Global screen.

Note The Wireless Edge Services xl Module pushes the username and password

to the RPs as a one-time occurrence. You must complete these steps again

to configure the username and password on an RP that is adopted later.

6. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.
