2-81

Configuring the ProCurve Wireless Edge Services xl Module

System Maintenance

Viewing the Software Images

To view the version of the primary and secondary images, access the

Management > System Maint.—Software screen. (See Figure 2-47.)

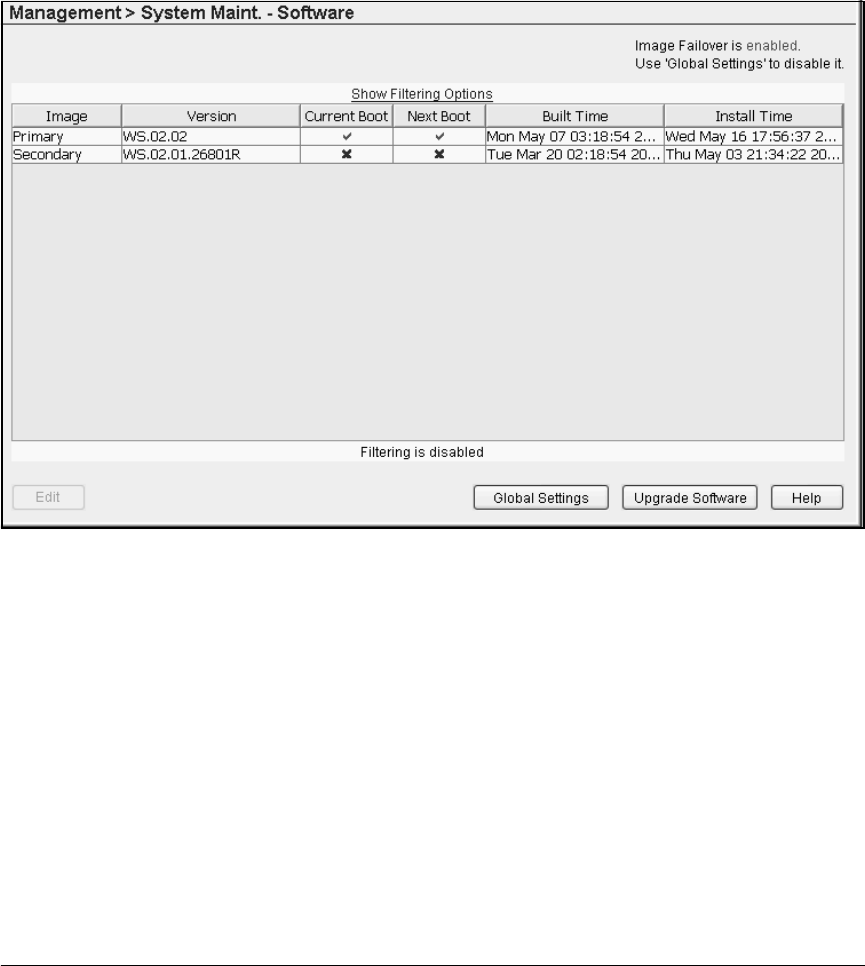

Figure 2-47. Management > System Maint.—Software Screen

The Management > System Maint.—Software screen includes the following

fields:

■ Image—This field indicates whether the image is the primary or secondary

image.

■ Version—This field displays the version number of the image file.

■ Current Boot—This field indicates whether or not the image was used the

last time that the Wireless Edge Services xl Module was rebooted. A green

check mark indicates that the image was used; a red x indicates that the

image was not used.

■ Next Boot—This field determines whether the software image will be used

to boot the Wireless Edge Services xl Module the next time the module is

reloaded. A green check mark indicates that the image will be used; a red

x indicates that the image will not be used.
