2-82
Configuring the ProCurve Wireless Edge Services xl Module
System Maintenance
■ Built Time—This field reports the date and time that this software image
was created.
■ Install Time—This field reports the date and time that this software image
was updated on the Wireless Edge Services xl Module.
Selecting the Software Image That Is Used to Reboot
You can specify which software image the Wireless Edge Services xl Module
will use the next time it is rebooted—the primary or the secondary. Complete
these steps:
1. Select Management > System Maint.—Software.
2. Select the software image that the Wireless Edge Services xl Module
should use to boot. For example, if you want the module to boot with the
secondary image, select that image.
3. Click the Edit button at the bottom of the screen.

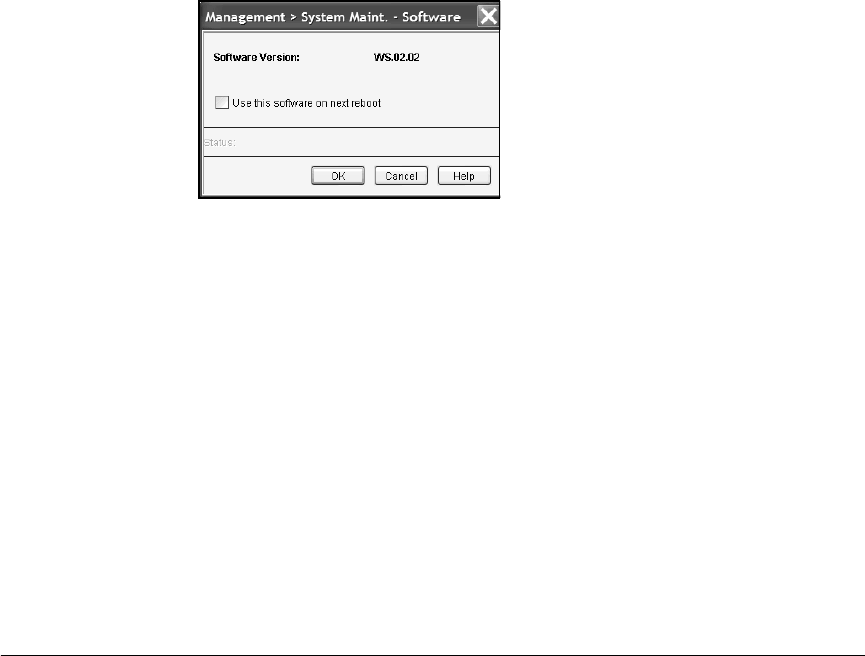

Figure 2-48. Update Software Image Dialog Box
4. Check the Use this software on next reboot box, and then click the OK button.
5. Click the Save link at the top of the Web browser interface to save this
change to the startup-config.
Changing the Image Failover Setting
When the Wireless Edge Services xl Module reboots, it attempts to initialize
the software image that you have selected for the next reboot. If this attempt
fails, the module tries one more time to initialize the software image. If this
second consecutive attempt fails, by default the module automatically reboots
using the other software image.
