2-83

Configuring the ProCurve Wireless Edge Services xl Module

System Maintenance

If you do not want the Wireless Edge Services xl Module to automatically

reboot using the other image, you can disable this failover capability.

Complete these steps:

1. Select Management > System Maint.—Software.

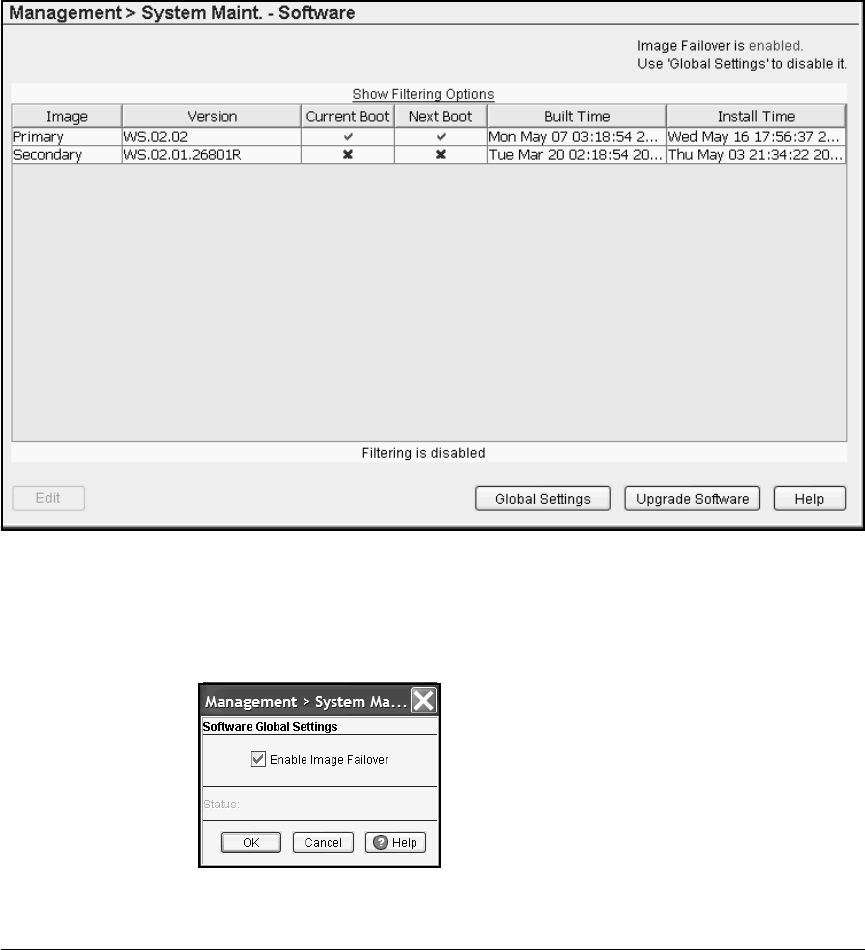

Figure 2-49. Management > System Maint.—Software Screen

2. Click the Global Settings button at the bottom of the screen. The Software

Global Settings screen is displayed.

Figure 2-50. Software Global Settings Screen
