2-87

Configuring the ProCurve Wireless Edge Services xl Module

System Maintenance

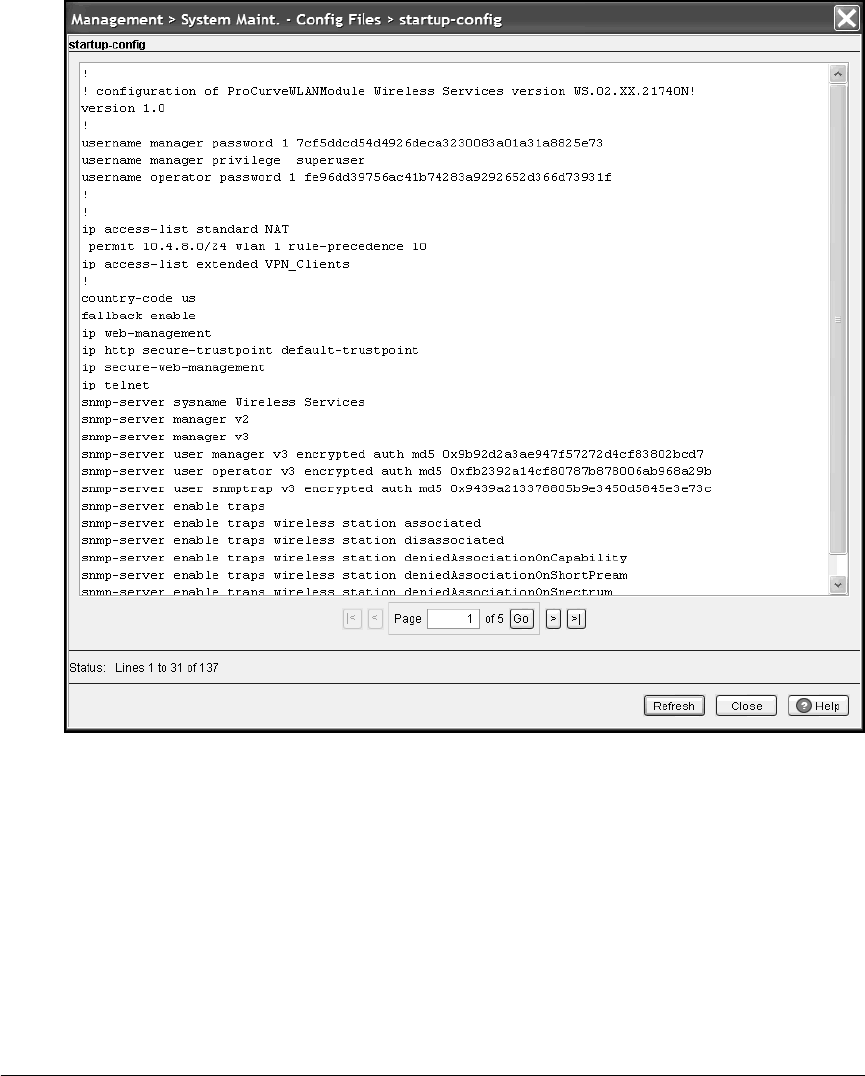

Figure 2-53. Viewing the Contents of the startup-config

Click the Refresh button to update the information displayed in the screen.

Click the Close button to return to the Management > System Maint.—Config

Files screen.
