2-101

Configuring the ProCurve Wireless Edge Services xl Module

System Maintenance

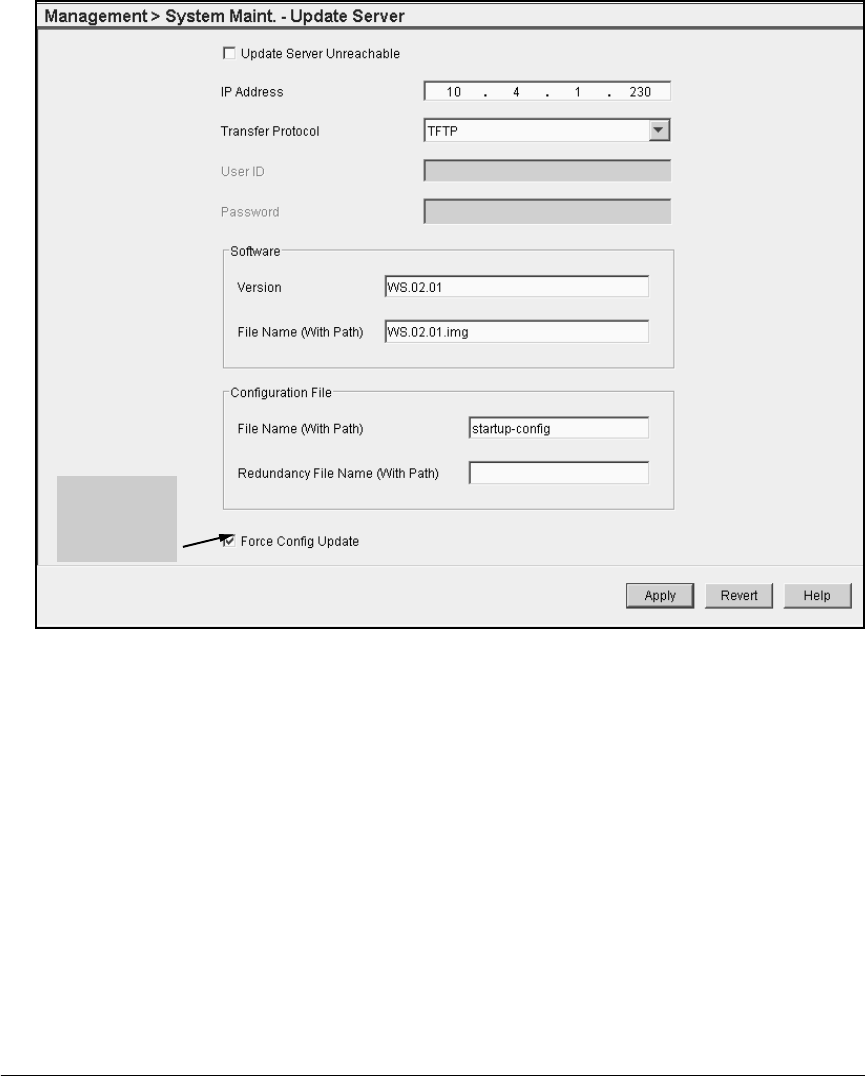

Figure 2-63. Forcing the Update Server to Upload the Configuration File Whether or

Not the Checksums Match

Table 2-4 lists the image and configuration file that the Wireless Edge Services

xl Module uses if:

■ the image file specified in the Update Server settings is the image file that

the module is already using

■ the Update Server is enabled, but no settings are configured for the image

file and the configuration file location

■ the Update Server is unavailable

Configure the

update server

to ignore

checksums
