2-104

Configuring the ProCurve Wireless Edge Services xl Module

System Maintenance

Configuring the Update Server Settings

To configure the Update Server settings, complete these steps:

1. Select Management > System Maint.—Update Server.

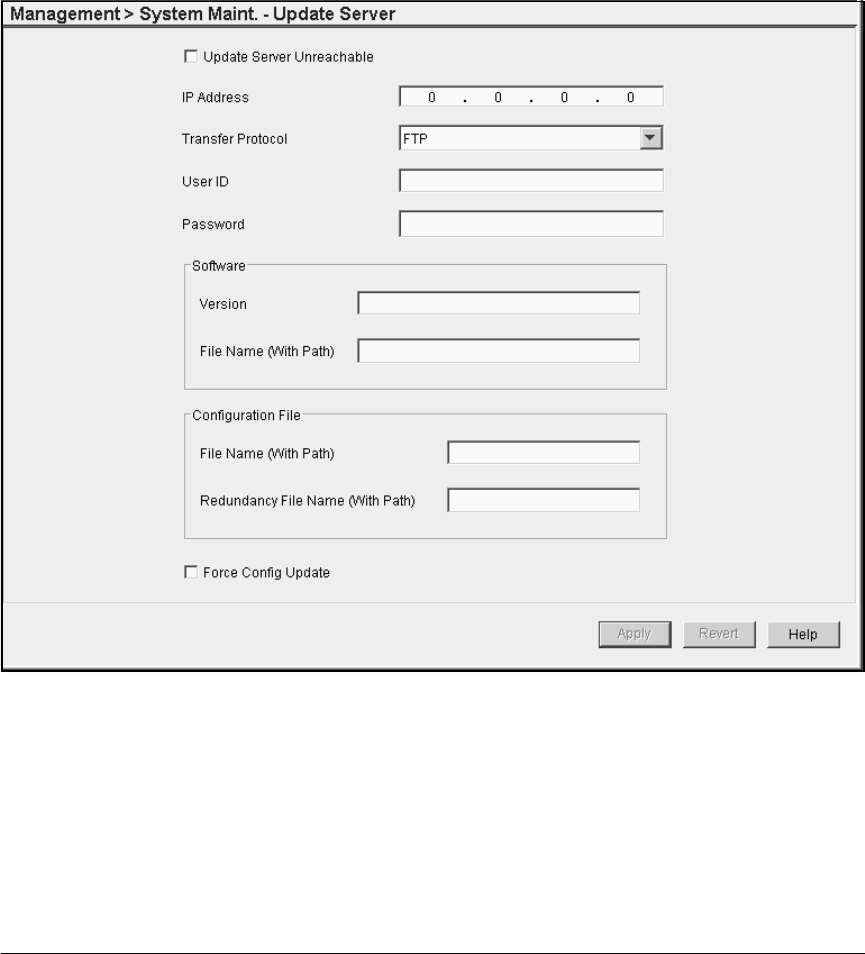

Figure 2-64. Management > System Maint.—Update Server Screen

2. Check the Update Server Unreachable box if you do not want the Wireless

Edge Services xl Module to use the Update Server.

3. In the IP Address field, enter the IP address of the FTP or TFTP server on

which the software image is saved.

4. In the Transfer Protocol field, use the drop-down menu to specify whether

the Update Server is an FTP server or a TFTP server.
