2-110

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

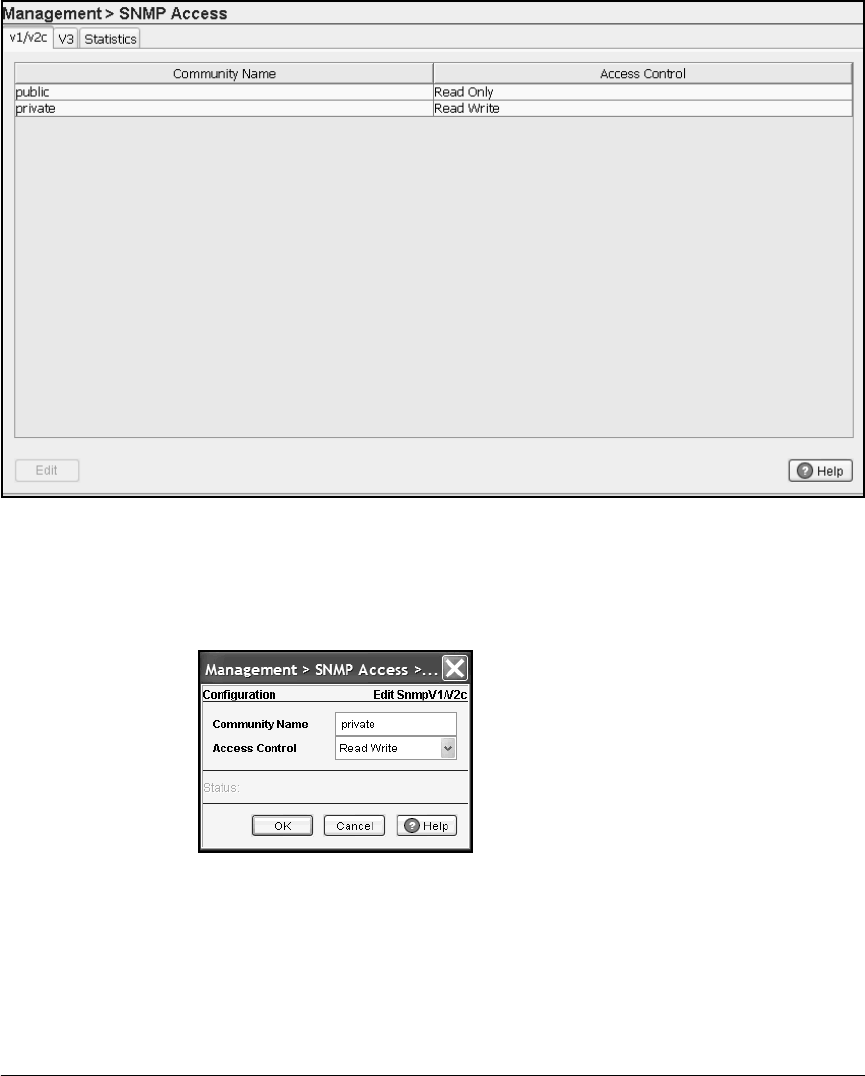

Figure 2-67. Management > SNMP Access > V1/V2c Screen

2. Select the community that you want to modify, and then click the Edit

button. The Edit SnmpV1/V2c screen is displayed. (See Figure 2-68.)

Figure 2-68. Edit SNMPV1/V2c Screen

3. In the Community Name field, enter the new name for the community.

4. In the Access Control field, use the drop-down menu to select the access

control.

5. Click the OK button. The changes are applied to the running-config.
