2-112

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

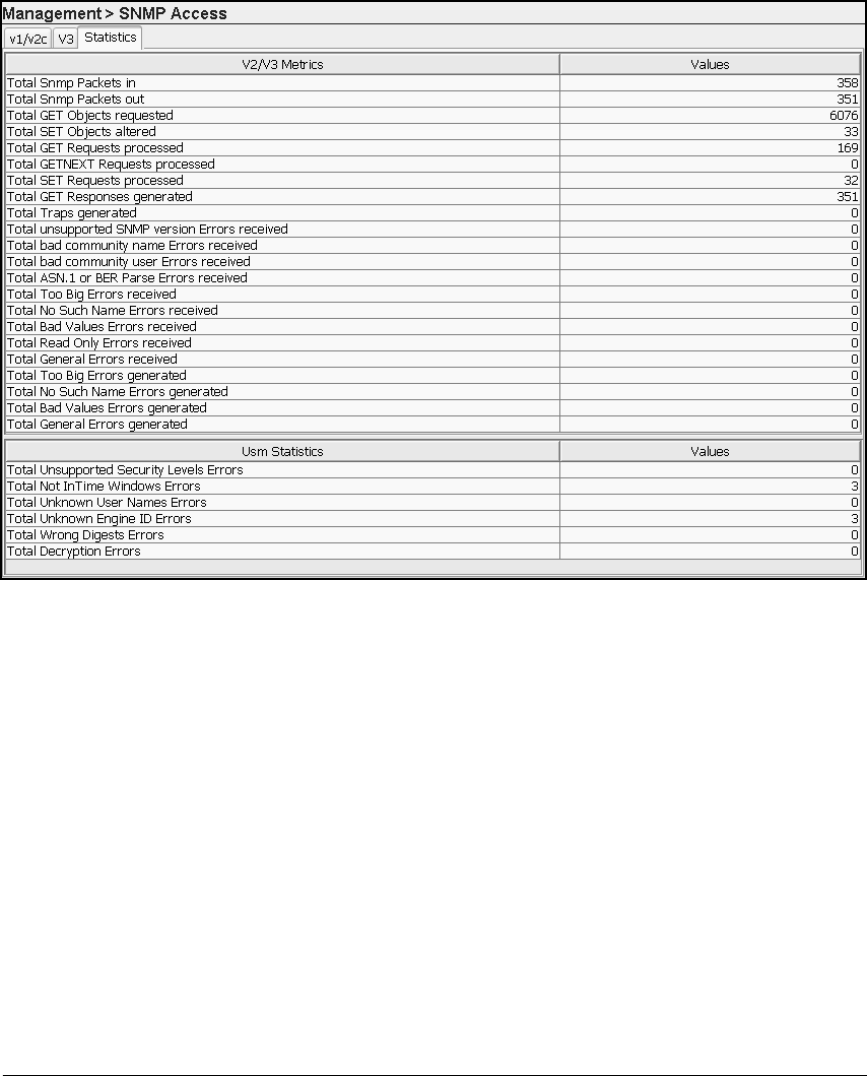

Figure 2-69. Management > SNMP Access > Statistics Screen

SNMP Traps

To generate alarm logs, you must enable the Wireless Edge Services xl Module

to generate SNMP traps, and you must enable specific SNMP traps. For

example, you may want the module to generate an alarm if file system space

becomes low or if a user fails to authenticate.

After you enable the SNMP trap function and the specific traps you want, the

Wireless Edge Services xl Module will begin to log events that match the SNMP

traps you have enabled. In addition to viewing these logs through the Web

browser interface, you can configure the Wireless Edge Services xl Module to

send the SNMP trap information to your SNMP server. (For information about

viewing logs through the Web browser interface, see “Configuring Logging”

on page 13-63 in Chapter 13: Wireless Network Management.)
