2-114

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

•SNMP

• Wireless

2. Check the Allow Traps to be generated box.

3. To view the SNMP traps in a category, click the Plus ( + ) sign next to the

category. To view the SNMP traps in all categories, click the Expand all

items button.

4. To enable all the traps, select All Traps and click the Enable all sub-items

button.

5. To enable all the SNMP traps in a category, select the category and click

the Enable all sub-items button.

6. To enable a specific SNMP trap, select the trap and click the Enable button

or double-click the trap. A green check mark is displayed next to enabled

traps. A red x is displayed next to disabled traps.

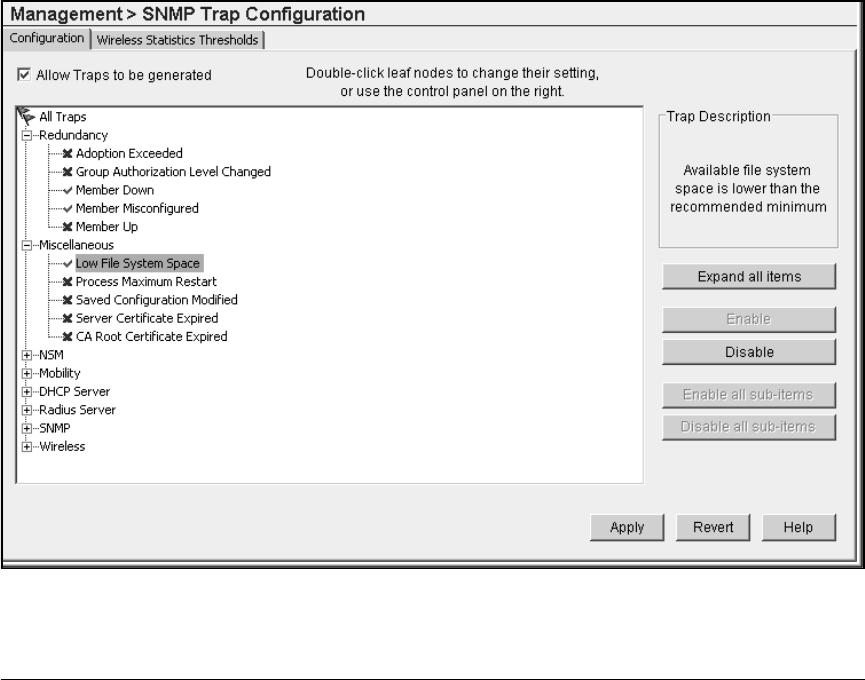

Figure 2-71. Enabling SNMP Traps on the Management > SNMP Trap Configuration

Screen
