2-116

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

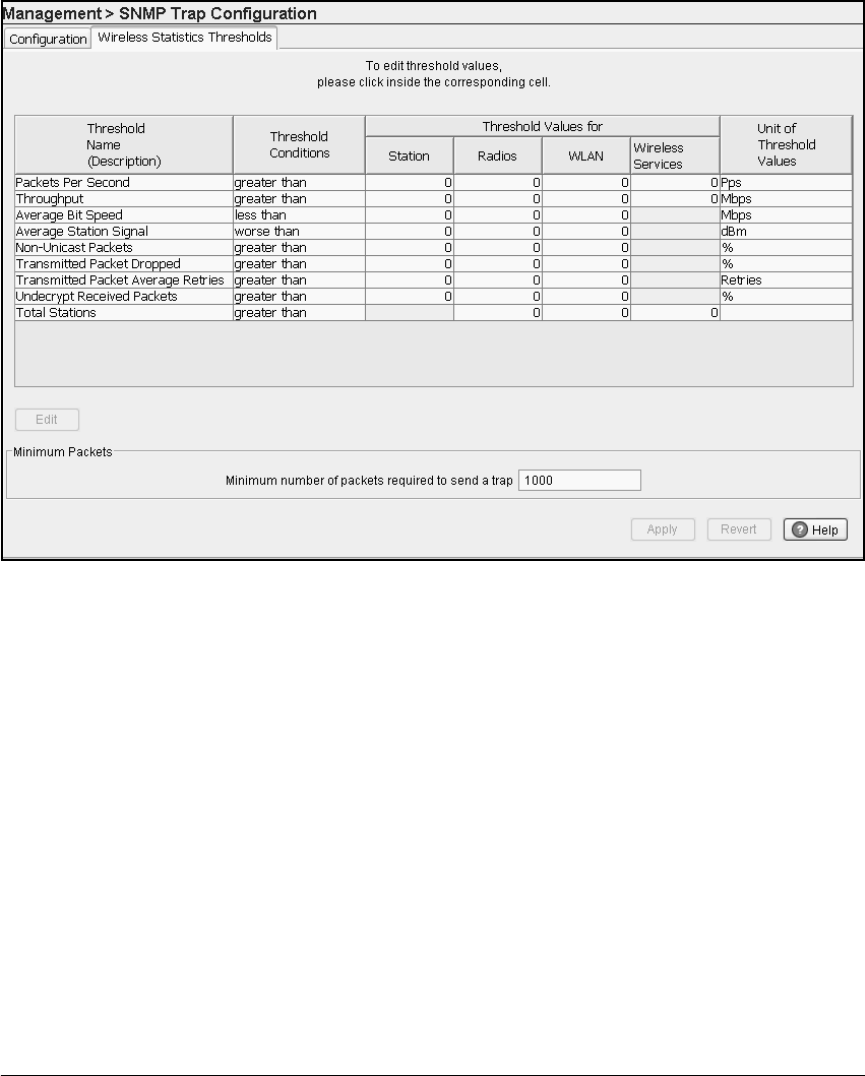

Figure 2-72. Management > SNMP Trap Configuration > Wireless Statistics

Thresholds Screen

Table 2-6 shows which thresholds you can set for stations, radios, and WLANs,

and for the Wireless Edge Services xl Module itself.
