2-119
Configuring the ProCurve Wireless Edge Services xl Module
SNMP Traps and Error Reporting
4. In the Port Number field, enter the port on which your SNMP server listens
for traps.
The valid range is from 1 to 65535. The default port is 162.
5. Chose v2c or v3 from the Protocol Options drop-down menu.
6. Click the OK button. The configuration change is applied to the running-
config.
7. Click the Save link at the top of the Web browser interface to save the
changes to the startup-config.
Change the Password for SNMP v3 Traps. When an SNMP v3 server
receives a trap, it checks the username and password of the sender. The
Wireless Edge Services xl Module uses the snmptrap profile to send SNMP v3
traps.
The username for this trap is always snmptrap, but you can change the
password. Follow these steps:

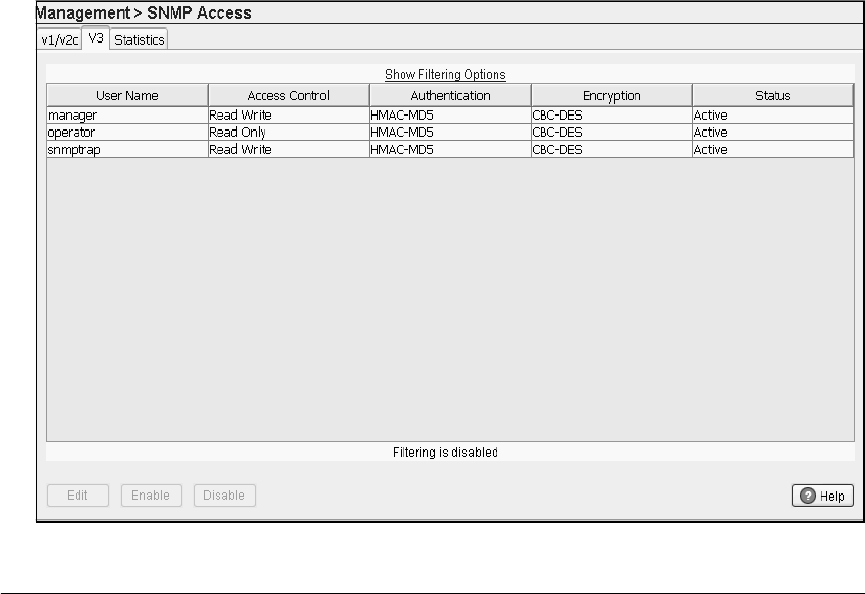

1. Select Management > SNMP Access and click the V3 tab.
Figure 2-75. Management > SNMP Access > V3 Screen
